Vacuum Pads

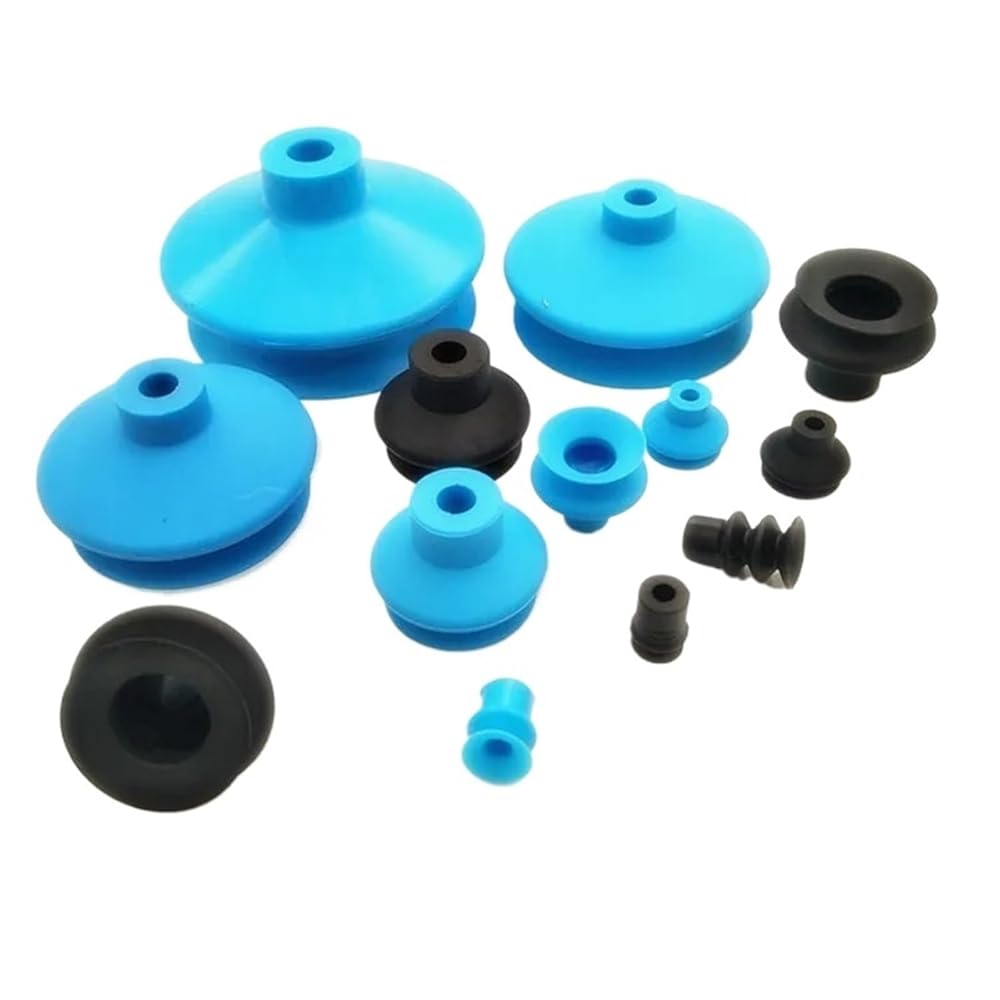

Suction Cups FSGA (1.5 Folds)
Applications Round, bellows suction cup with 1.5 folds for handling of extremely sensitive workpieces (optimum damping effect due to folds and smooth sealing lip)
Handling of workpieces with uneven surfaces, such as pipes (folds permit optimal adaptation to concave and convex surfaces) Design
Robust, wear-resistant suction cup FSGA (3) with single sealing lip, consisting of suction cup FGA (2) with 1.5 folds and connection nipple (1)
All nipples are plugged in
Suction cups with a diameter of 25 mm or more with supports on the bottom
With each nipple family, the replacement cups and nipples can be combined as desired
Size: 9-78mm
Suction cup material:
Nitrile rubber NBR
Material hardness: 55 °Sh
Number of folds: 1.5
Bellows suction cup (round) with optimal adaptation to uneven surfaces
Size: 9-78mm
Suction cup material:
High temp material HT1
Material hardness: 60 °Sh
Number of folds: 1.5
Material property: imprint-free
Bellows Suction Cups FSGA (1.5 Folds)
Design Data Bellows Suction Cups FSGA (1.5 Folds)
==========
Type : Actuator
