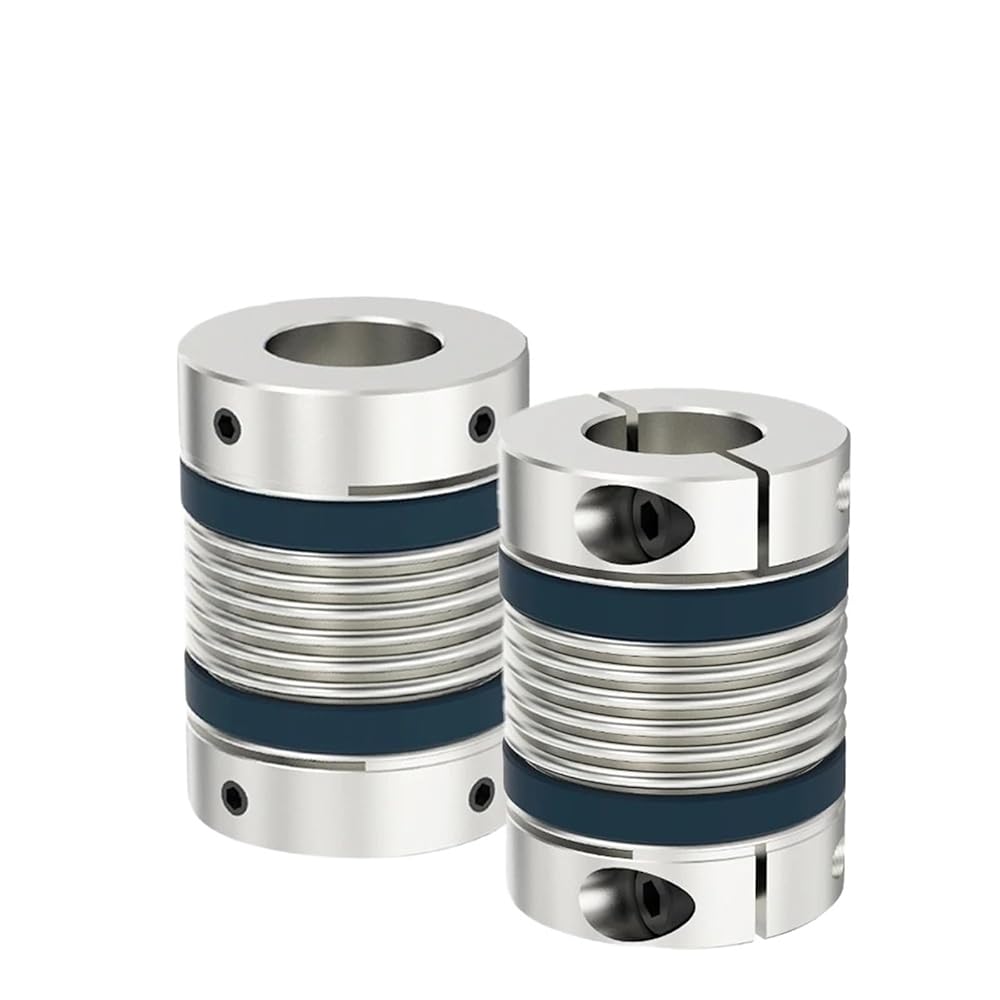

رمح اقتران منفاخ محرك مرن مقرنة CNC الألومنيوم مرونة عالية طابعة مشتركة عالمية (LB-D-D40L50-8X12) in Kuwait

LB-B-D40L58-14X14

KWD 37.500
اللونLB-B-D40L58-14X14
– 1 +

مميزات خاصة

  • Torque Capacity Rated Torque 10n.m:Rated torque of 10n.m handles a range of driving loads in various applications.
  • Performance Max Speed 9000rpm:Capable of up to 9000rpm, ensuring efficient performance in high-speed applications.
  • Universal Joint Alignable:Universal joint design allows for up to 2 degrees of angular misalignment, enhancing compatibility.
  • Flexibility Metal Bellows:Metal bellows design offers flexibility, reducing stress on shafts during misalignment.
  • Flexible Drive Shaft Coupling|Flexible Coupling Drive Shaft|Material Aluminium:Crafted from durable aluminium for high strength and torsional rigidity.

وصف

After you choose the body length and outside diamesion, pls must leave us message
the inner hole size,it is very important!!!
Clamping bellows
ONE SIDE HOLE SIZE CAN MESSAGE(D1):
8/9/10/11/12/13/14/15/16/17/18/19/20MM
THE OTHER SIDE HOLE SIZE CAN MESSAGE(D2):
8/9/10/11/12/13/14/15/16/17/18/19/20MM
Thimble type bellows
ONE SIDE HOLE SIZE CAN MESSAGE(D1):
8/9/10/11/12/13/14/15/16/17/18/19/20MM
THE OTHER SIDE HOLE SIZE CAN MESSAGE(D2):
8/9/10/11/12/13/14/15/16/17/18/19/20MM
Shaft diameter
Keyway width
Keyway depth
==========
Standard or Nonstandard : Standard
Flexible or Rigid : Flexible
Material : Aluminium
Structure : Metal Bellows
Origin : Mainland China
Rated Torque : 10n.m
Max Torque : 15n.m
Max speed : 9000rpm
Moment of lnertia : 2.1*10-5kg.m2
Permissible parallel misalignment : 0.2mm
Permissible angular misalignment : 2 degree
Weight : 207g
Inner diameter : 8mm to 20mm
