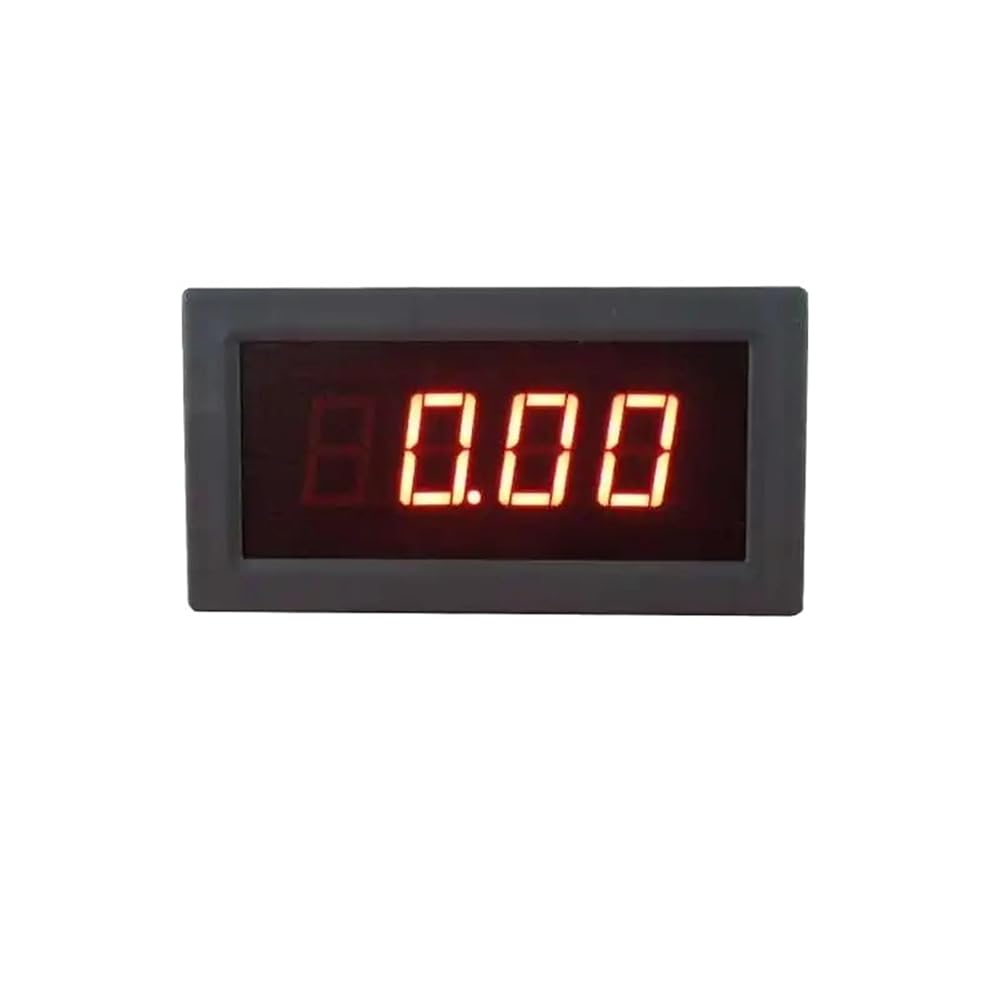

YB5135Bi AC Isolaion Voltmeter LED Digital Voltage Meter Monitor Voltage Detector 7107 Volt Panel Meter 200mV 2V 20V 200V 500V
Attention:
1.The meter power supply terminal and test terminal completely isolated, completely insulated.
2.Two or more meters can share a power supply, don't worry about the power supply and wiring problems.
Technical Parameters:
Power supply: DC8-18V/5V/24V Selectable
Test voltage:AC200mV/2V/20V/200V/500V
Dimension:79*43*25 mm
Mounting hole:76*39.5mm
Display mode: 0.56 "LED with red/blue digits
Measurement accuracy: 0.5% (± 2 digits)
Measurement rate: 2 times/S
Feature:
Power supply reverse protection.
More than one meter can share one power supply.
Specification:
Package Include:
1 piece* LED Digital AC Isolation Voltage Meter
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135Bi
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.5%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : 0.56''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : DC8-18V/5V/24V
Test voltage : AC200mV/2V/20V/200V/500V
