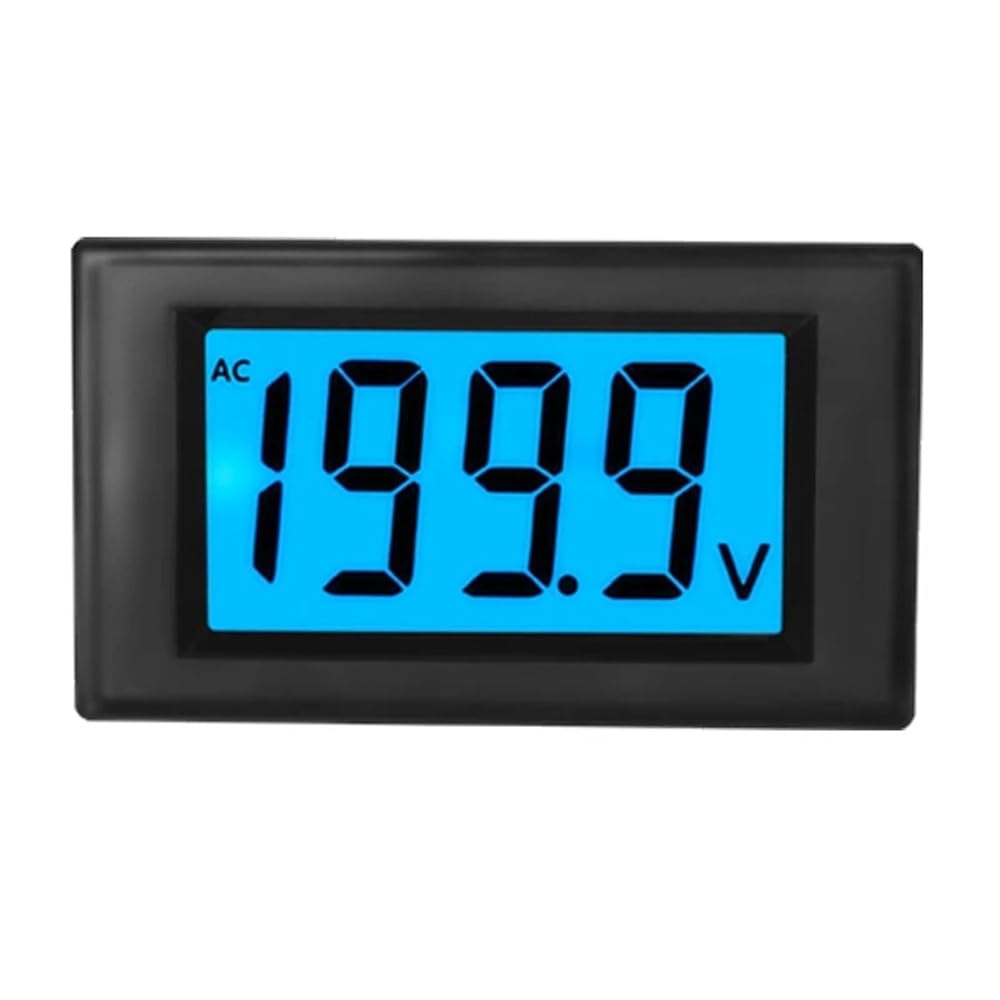

D85-222 is a small-sized economical digital electrical measuring instrument, mainly used for real-time measurement of AC voltage in electrical lines and displaying it with liquid crystal in digital direct reading mode. It is widely used in substation automation, power distribution automation, testing equipment, voltage regulator, regulator, and other occasions. The product has the advantages of low power consumption, small size, easy installation, clear HD backlight display, etc. It is the ideal meter to replace various pointer type electric measuring meters.
Measurement range: AC (AC) 0-199.9V, 0-600V. Note: Measurement of AC200V voltage below please tick 0-199.9V! Otherwise tick 0-600V to measure 0-199.9V/110V equipment below the voltage error is very large! Remember!
The instrument is individually powered by a built-in isolation and is extremely to interference!
Overview:
1. Working power supply: AC220V
2.Measuring speed: 2 times per second
3. Measurement accuracy: 1% ± 2 digit
4. liquid crystal display: word height 19mm
5 product dimensions: 70 × 40 × 31mm
6. Opening installation size: 68 × 38mm
7. Installation hole with 85L17 pointer table unchanged
==========
Hign-concerned Chemical : None
Dimensions : 70*40*31mm
Operating Temperature : -10-50
Accuracy Class : 1%±2digit
Model Number : D85-222
Rated Voltage : 220V
Power Supply : AC
Display Type :
DIY Supplies : ELECTRICAL
Color : White/Black
Measuring Speed : 2 times per second
Installation Size : 68*38mm
