Parameter

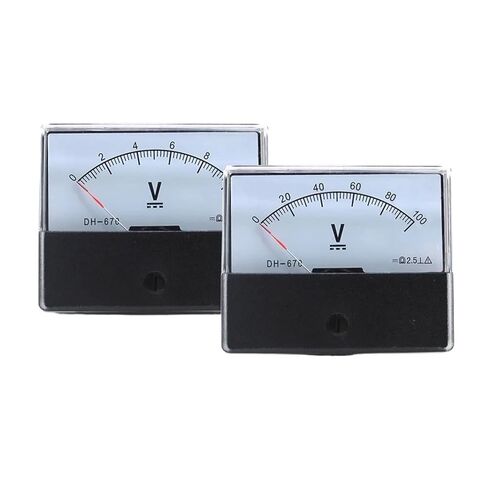

Product model:DH-670
Accuracy grade:Ammeter:class 2.5
Voltmeter:class 2.0
Overall dimension: 70mm*60mm
Hole size: see the following figure
Measuring range:
Ammeter:50uA-20A(directaccess),20A-10kA*/75mv/60mV(Use with external connection device
Voltmeter:1V-600V(direct access),450V-450kV*/1mA/5mA(Use with external connection device)
Working position: vertical
Operating temperature :-20c-50c
Working humidity: 80% RHmax non-condensing
Model number
Type
Range
Related product
DH-670
Ammeter
Direct Connection()
1A,2A,3A,5A,10A,15A,20A,
Order
Need to cooperate withshunt
10A/75mV,15A/75mV,20A/75mV,30A/75mV,50A/75mV,100A/75mV
150A/75mV,200A/75mV,300A/75mV,400A/75mV,500A/75mV
10A/60mV,15A/60mV,20A/60mV,30A/60mV,50A/60mV,100A/60mV
150A/60mV,200A/60mV,300A/60mV,400A/60mV,500A/60mV
Order
DH-670
Voltmeter
Direct Connection()
1V,2V,3V,5V,10V,15V,20V,30V,50V,100V,150V, 200V,250V,300V,400V,450V,500V,600V
Order
Special specifications can be customizedand Please contact me.
==========
Model Number : DH-670
DIY Supplies : ELECTRICAL
Dimensions : 70mmx60mm
Operating Temperature : -20~40Centigrade
Accuracy Class : 2.5
Power Supply :
Display Type : Analog Only
