Product Features:

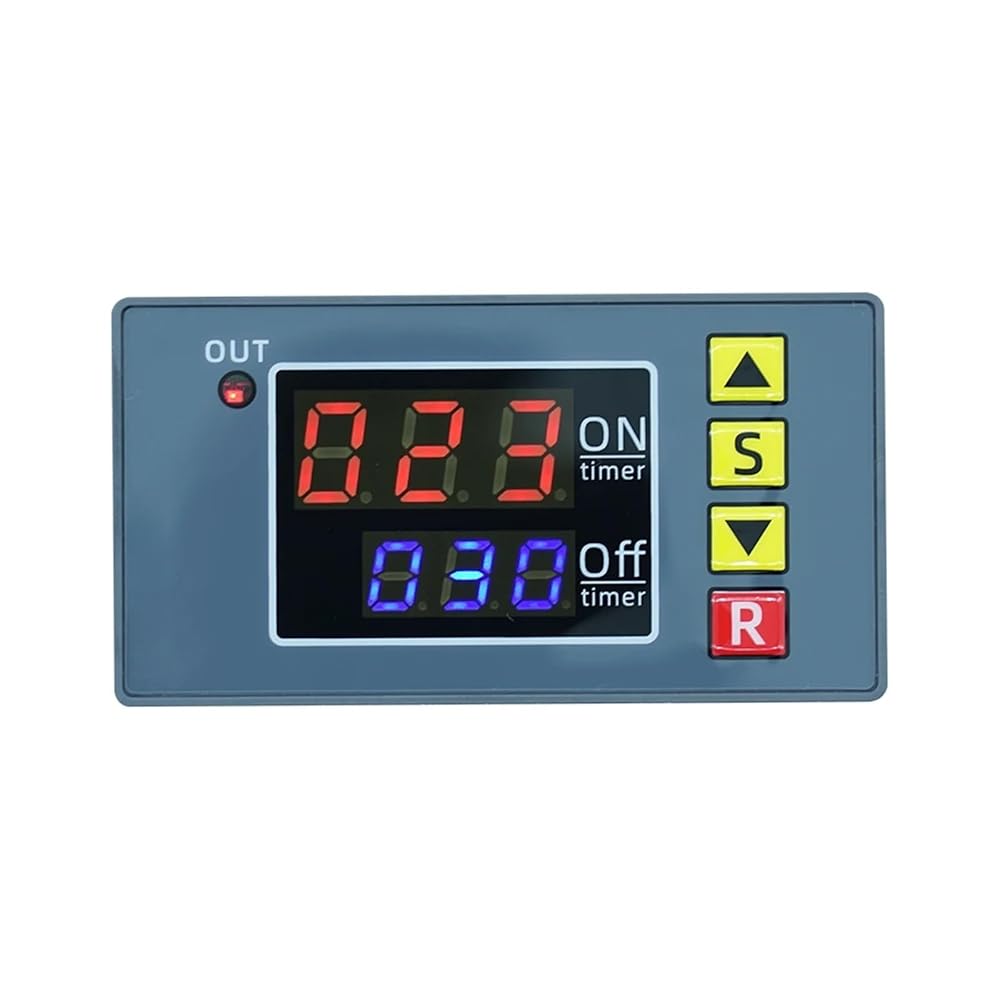

1. Wide time range: digital cycle timer relay module, time range from 1 second to 999 hours
2. Dual LED display: red and blue dual LED display module and touch buttons, easy to set the delay time and working mode.
3. Support multiple working modes, including timer, cycle and period working modes, meet most of your needs.
4. It can be power-on delay (i.e. delayed action after power-on) or power-off delay (i.e. delayed reset after power-off).
5. Installation size: 77 x 39.3mm, embedded installation, suitable for a variety of application scenarios
Product Parameters:
Product name: T3231 controller
Timing range: 0-999s, 0-999m, 0-999h
Voltage: DC12V/DC24VAC110-220V (optional)
LED display: red + blue dual display
Output type: switch type, contact no output
Timing unit: seconds/minutes/hours
Cycle switch: Support
Delay switch on: support
Time Delay Off: Support
Infinite delay: Support
Size: 79*43*26mm
Hole Diameter: 72 x 40mm
Packing list:
Relay*1
==========
Applicable Object : Electromechanica
EANCode : no
Contact Arrange : SPDT
High-concerned chemical : None
Power Source : AC
Theory : Time Relay
is_customized : Yes
Contact Load : Low Power
Model Number : Digital Time Delay Relay Module
Voltage : 24V
Origin : Mainland China
Certification : CE,RoHS
Power Source : AC
Use : General Purpose
Protect Feature : Sealed
Timing Range : 0-999s, 0-999m, 0-999h
Voltage : DC12V/DC24V or AC110-220V (selectable)
Cycle Switching : Supported
Delayed Power : Supported
Delayed Power-Off : Supported
Infinite Delay : Supported
Dimensions : 79.5*42.1*27.8mm
Cut-out Dimensions : 77*39.3mm
