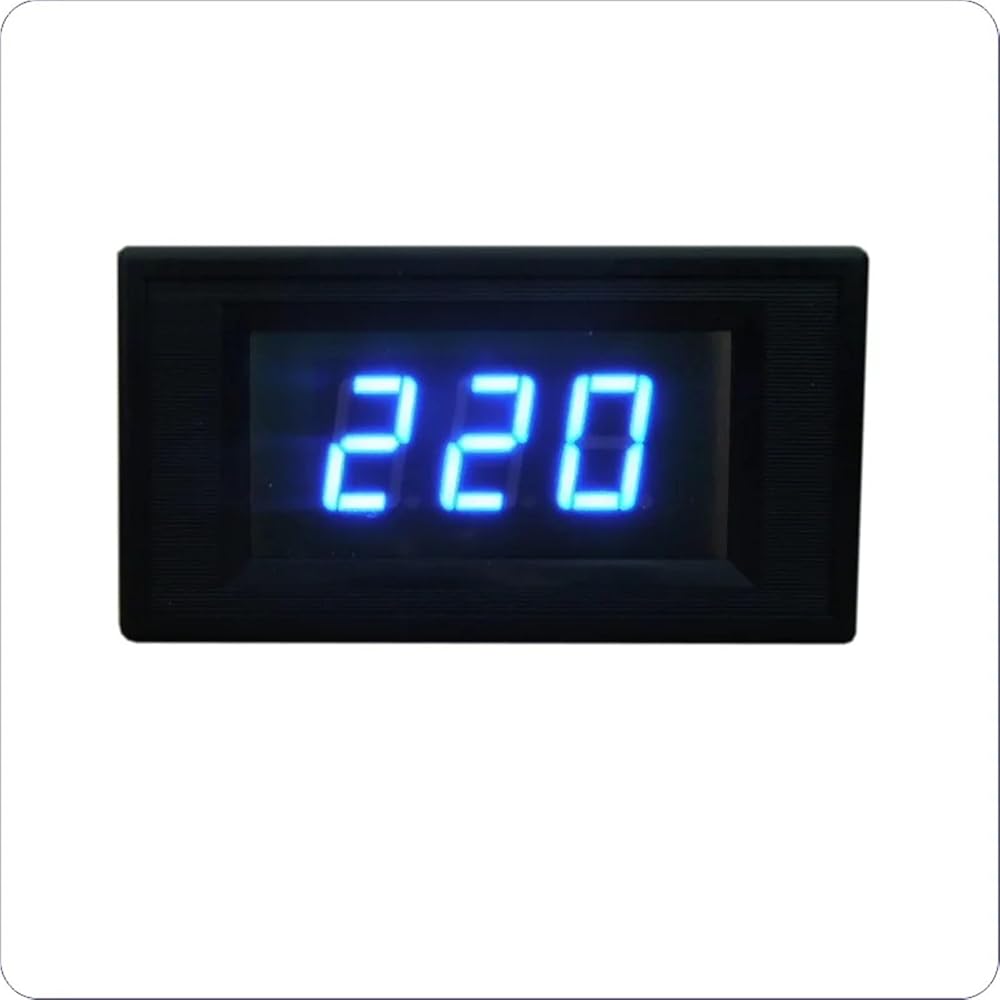

YB5130A LED Digital AC Voltmeter Voltage Meter Volt Tester Volt Panel Meter for Single Phase Voltage Regulator AC 0-500V
Attention:
1.The meter can only be used to measure 50/60Hz sine wave circuit, it will be damaged when use to measure square wave, output of inverter and correction sine wave.
2.The meter is suitable for AC Single Phase (voltage regulator) Only.
3.This meter shows the Average Value.
Technical parameters:
Voltage range:AC00-500V, the resolution: 1V
Power supply: AC30-500V
Measurement accuracy: 1% ± 2 digits
Display: 0.56'' LED with blue or red digits
Measuring speed: about 2 times per second
Dimensions: Full-closed: 79 × 43 × 25mm, Semi-closed: 79×43×15mm
Installation size: 75 × 39.5m
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5130
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25/15mm
Operating Temperature : -10 to 50 degree
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting dimension : 75*39.5mm
Display type : 0.56'' LED with blue or red digits
Power supply : AC30-500V
Test voltage : AC0-500V
Cover type : Semi-closed/Full-closed
