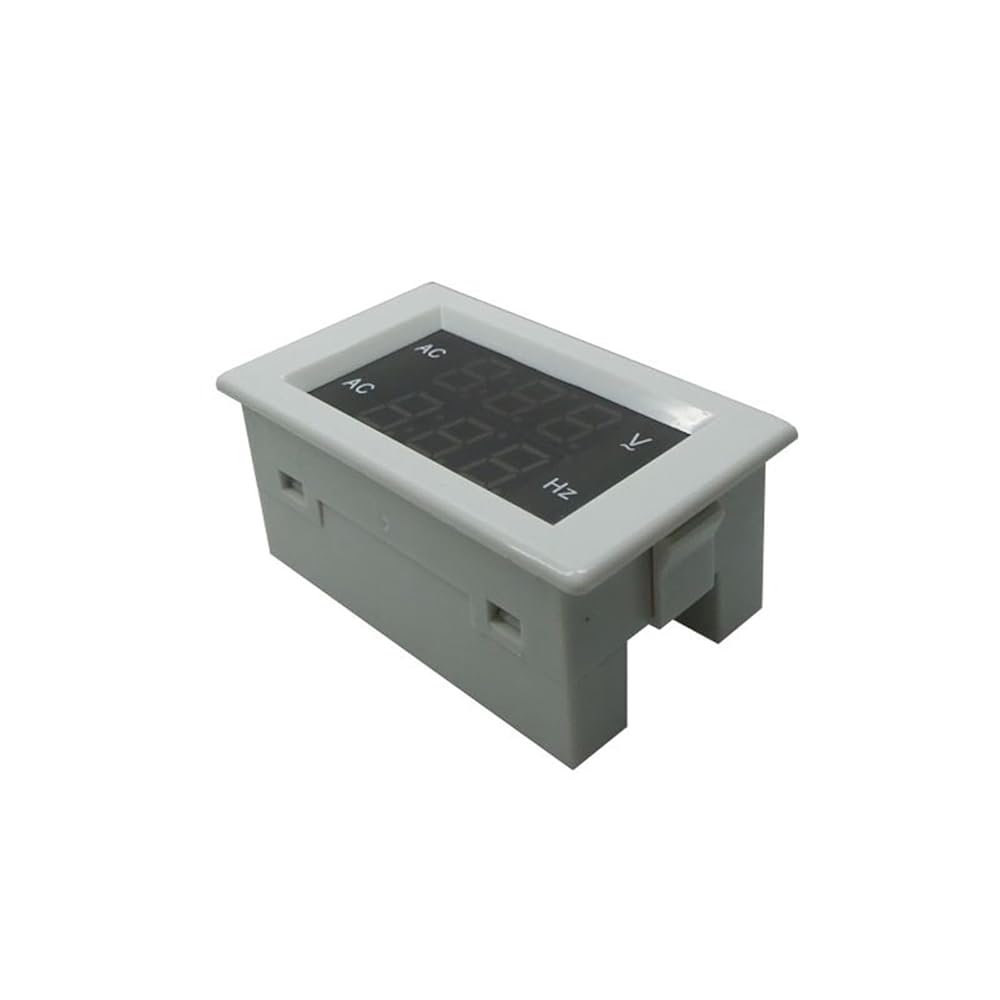

YB4835DVF AC 80-500V 45-65HZ Frequency Counter LED Display Voltage Frequency Meter Digital Voltmeter Hertz HZ Meter
Attention:
The metercan only be used to measure 50/60Hz sine wave circuit,it will be damage when power supply is by square wave, output of inverter and correction sine wave.
Technical parameters:
Test voltage range: AC80-500V,Resolution:1V
Measurement accuracy: 1% ± 2 digits
Display: LED digital with red and green digits
Measuring speed: about 2 times per second
Dimensions: 70 × 40 × 30 mm
Installation size: 68 × 38mm
Test frequency range: 45.0-65.0Hz, Resolution: 0.1Hz
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB4835VF
DIY Supplies : ELECTRICAL
Dimensions : 70*40*30mm
Operating Temperature : -10 to 50 degree
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Working Pressure : 80 to 106kPa
Mounting Holes : 68*38 mm
Display Type : LED Digital with red green digits
Feature : Two-wire
Voltage : AC80-500V
Frequency : 45.0-65.0Hz
