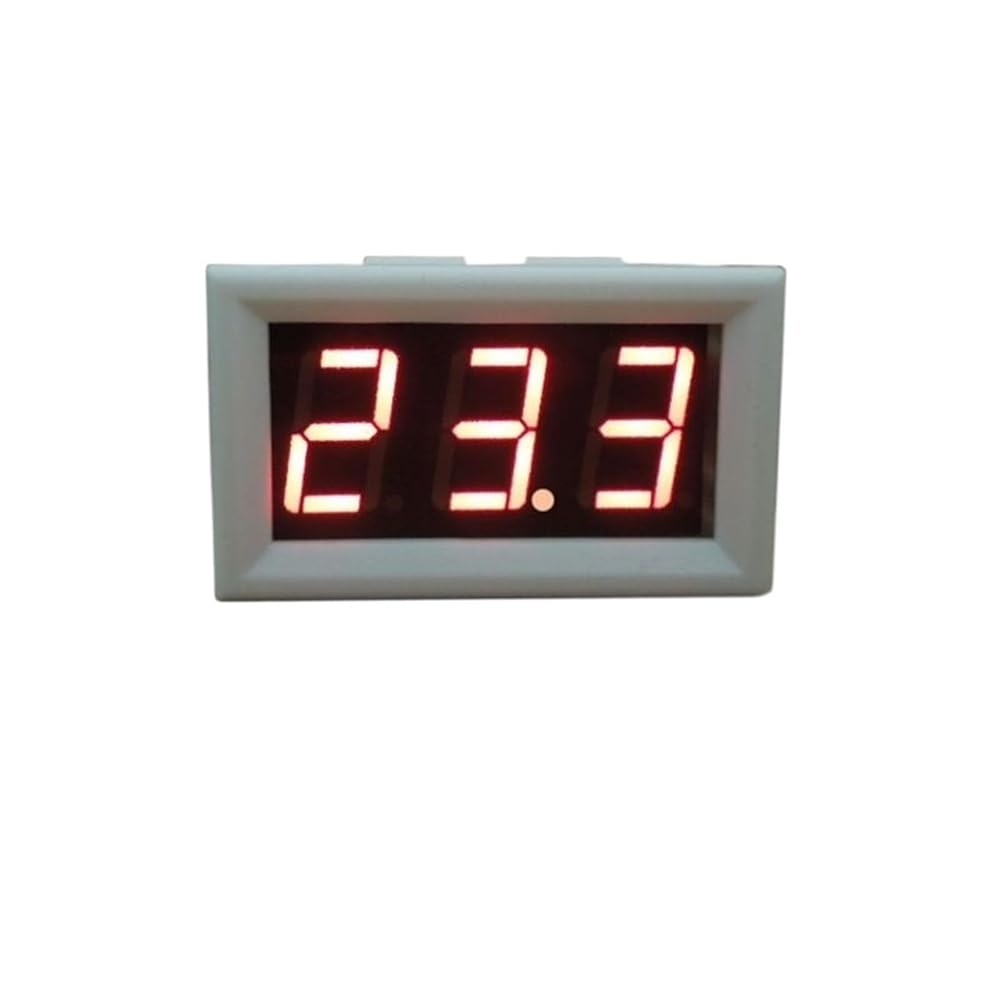

YB27 LED Digital Voltmeter 2.5V 2.8V to 30V 150V Voltage Panel Meter Red Blue Green Electromobile Motorcycle Car Volt Gauge
Attention:
1.The test voltage can not exceed the maximum voltage,or the voltmeter will be burnt.
It is recommended to reservesome space.
2. The voltmeter of DC3.5-150V can not be installed in the car with a xenon lamp.
Technical Parameters:
Dimension:48*29*21 mm
Mounting hole:45.5*26.5mm
Testvoltage: DC2.5-30V / 2.8-30V / 3.5-150V
Display mode: 0.56 "LED with red/blue/green digits
Measurement accuracy: 1% (± 2 digits)
Measurement rate: 500mS / time
Features:
With twowires,the wiring is simple, the installation is convenient.
When there is a small tolerance, you can calibrate by the potentiometer on the circuit board.
With polarity protection function.
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB27
DIY Supplies : ELECTRICAL
Dimensions : 48*29*21mm
Operating Temperature : -10~50 degree
Accuracy Class : 1%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 45.5*26.5mm
Display type : 0.56''LED with red/blue/green
Range : DC2.5-30V/2.8-30V/3.5-150V
Cover color : Black/White
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
