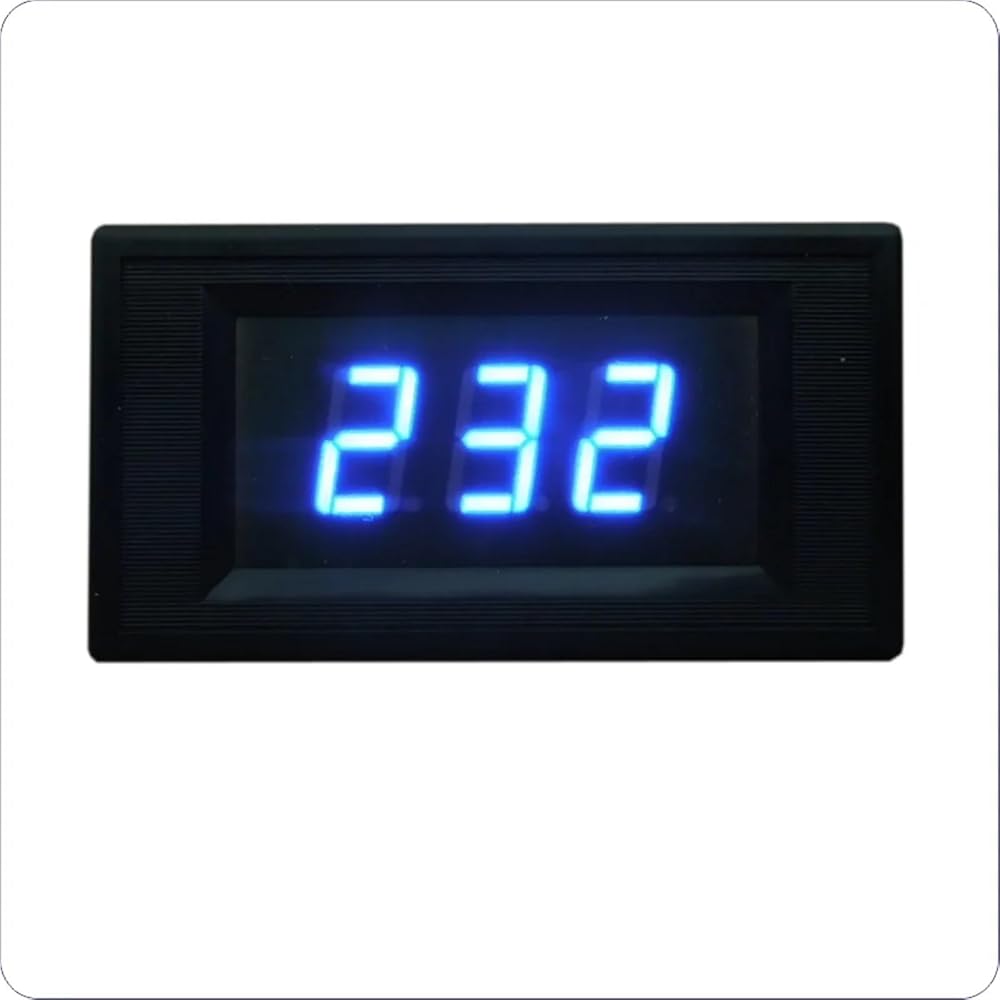

YB5130 AC30-500V LED Digital AC Voltmeter Voltage Meter AC 110 220V 230V 380V Volt Panel Meter Voltage Detector Voltage Monitor
Attention:
The meter can only be used to measure50/60Hz sine wave circuit,it will be damage when power supply is by square wave, output of inverter and correction sine wave.
Technical parameters:
Voltage range:AC30-500V, the resolution: 1V
Measurement accuracy: 1% ± 2 digits
Display: 0.56'' LED with blue or red digits
Measuring speed: about 2 times per second
Dimensions: Full-closed: 79 × 43 × 25mm, Semi-closed: 79×43×15mm
Installation size: 75 × 39.5m
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5130
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25/15mm
Operating Temperature : -10 to 50 degree
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting dimension : 75*39.5
Display type : 0.56'' LED with blue or red digits
Cover type : Full-closed/Semi-closed
Feature : Two wires
Working Pressure : 80 to 106kPa
