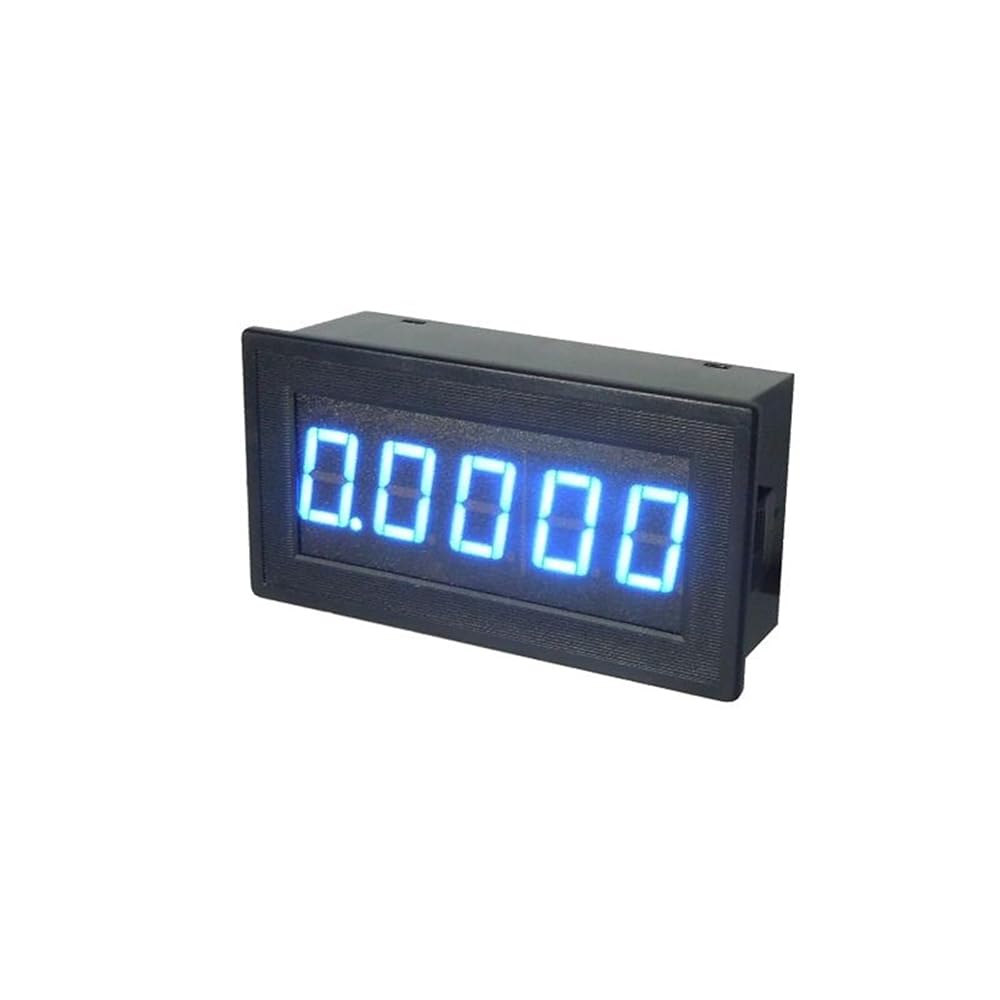

YB5145B LED Digital Voltmeter 4 1/2 Voltage Meter Display Tester DC200mV/2V/20V/100V/200V/300V/500V/600V 4.5 Volt Panel Meter
Technical Parameters:
Power supply:AC100-240V
Test voltage:DC200mV/2V/20V/200V/600V1000V
Dimension:79*43*25mm
Mounting hole:76*39.5mm
Display mode: 0.56 "LED with red/blue digits
Measurement accuracy: 0.1% (± 2 digits)
Measuring speed: 2 times/S
Specification:
Features:
The forward and backward voltage can be measured.
SMT technology, consistency is very good.
The crystal of the meter is quartz crystal with high precision and high stability.
The LED digital tube display part, with all the limited current resistance, will be not appeared "the bright and dark inconsistency".
Full-closed shell type,with a backcover,safe,dustproof and beautiful.
Universal wide supply voltage: AC100-240V.
Package Include:
1 piece* LED Digital DCVoltage Meter
Connection Diagram:
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5145B
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : 0.56''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : AC100-240V
Test voltage : DC200mV/2V/20V/200V/600V
Measuring speed : Twice per second
Weight : 63g
Feature : Forward and backward voltage can be measured
