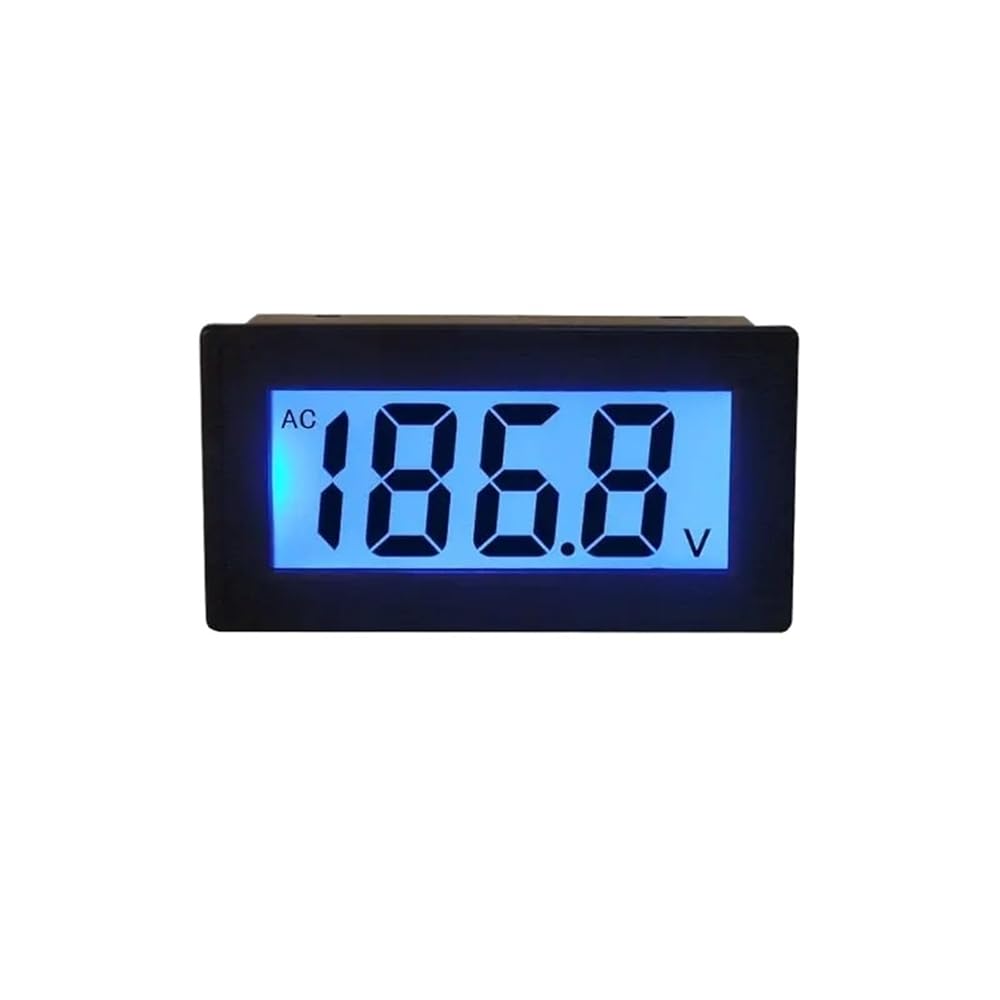

YB5135DB AC220V Power Supply Digital Voltage Meter AC 100-240V AC Voltmeter Voltage Monitor Blue Backlit D69 Volt Tester
Attention:
This meter shows the Average Value.
Technical Parameters:
Power supply:AC100-240V
Test voltage:AC200mV/2V/20V/200V/500V/1000V
Dimension:79*43*25mm
Mounting hole:76*39.5mm
Display mode: with blue backlight
Measurement accuracy: 0.5% (± 2 digits)
Measuring speed: Twice per second
Feature:
Full-closed shell type,with a backcover,safe,dustproof and beautiful.
Universal wide supply voltage: AC100-240V.
Specification:
Connection Diagram:
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135DB
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25 mm
Operating Temperature : -10 ~ +50
Accuracy Class : 0.5% (± 2 digits)
Power Supply : AC
Display Type : Digital Only
Mounting hole : 76*39.5mm
Power supply : AC100-240V
Display type : with blue backlight
Measuring speed : Twice per second
Test voltage : AC200mV/2V/20V/200V/500V/1000V
Weight : 61g
