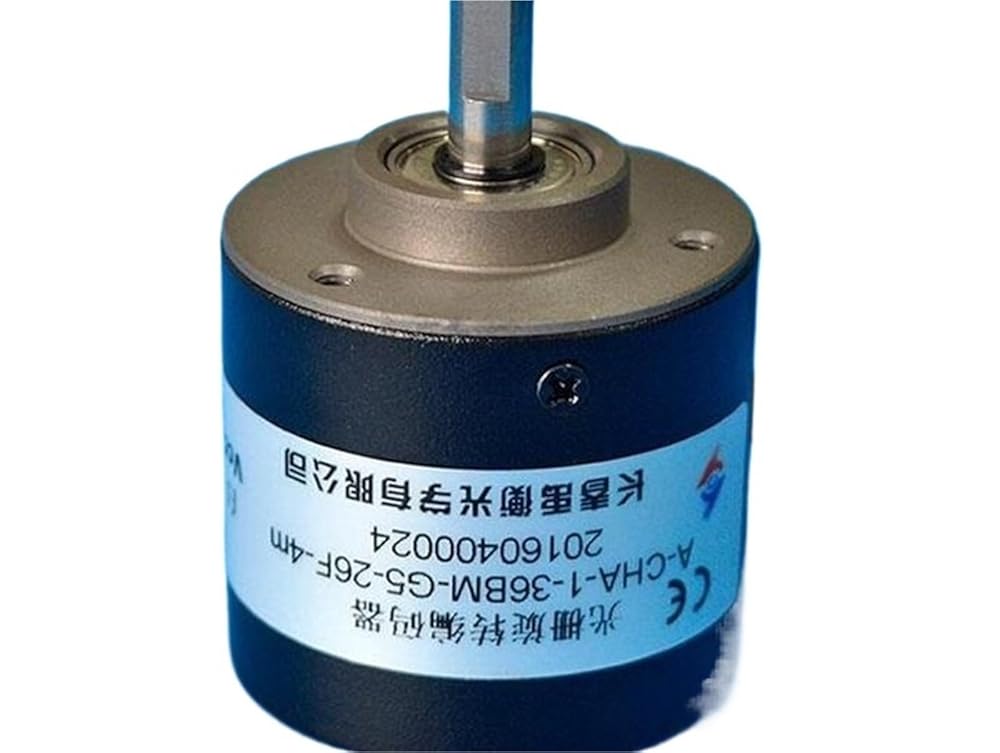

A-CHA series incremental solid shaft encoder. Code plate with metal, glass, two kinds of material optional, glass disc can be 5000 lines. Metal code disc can be done 1024 lines. Grating part of the ASIC optoelectronic devices, high reliability, long life, wider use of ambient temperature range. Outlet with twisted shielded cable, anti-jamming performance stronger. Widely used in automatic control, automatic measurement, remote control, computer technology, packaging and printing, machine tools and other types of automated equipment to do angle, speed, length, coordinate measurement.
Encoder model number
A-CHA-1-360BM-G5-26F

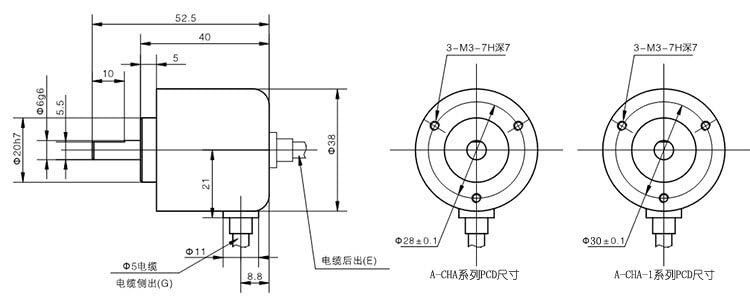

Output pulse 360P / R outer diameter 38mm
Power supply DC 5 ~ 26V Shaft diameter 6mm
Output circuit Complementary output (push-pull output) Mechanical speed 5000 Rpm Max
Output signal "1" Vcc-2.5V min Working environment -30 ~ +85
"0" DC 1V Max Storage Environment -35 ~ + 95
Response frequency 300KHz Max Protection class IP54
Definition of outgoing color
White (WHT) DC 5 ~ 26V
Black (BLK) 0V
Red (RED) Signal A
Green (GRN) Signal B
Yellow (YEL) Signal Z
Copper mesh (SHIELD) N.C.
In this case,
In this case,
In this case,
To avoid unnecessary losses, please refer to the wiring symbol on the main body of the encoder when wiring.
