مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

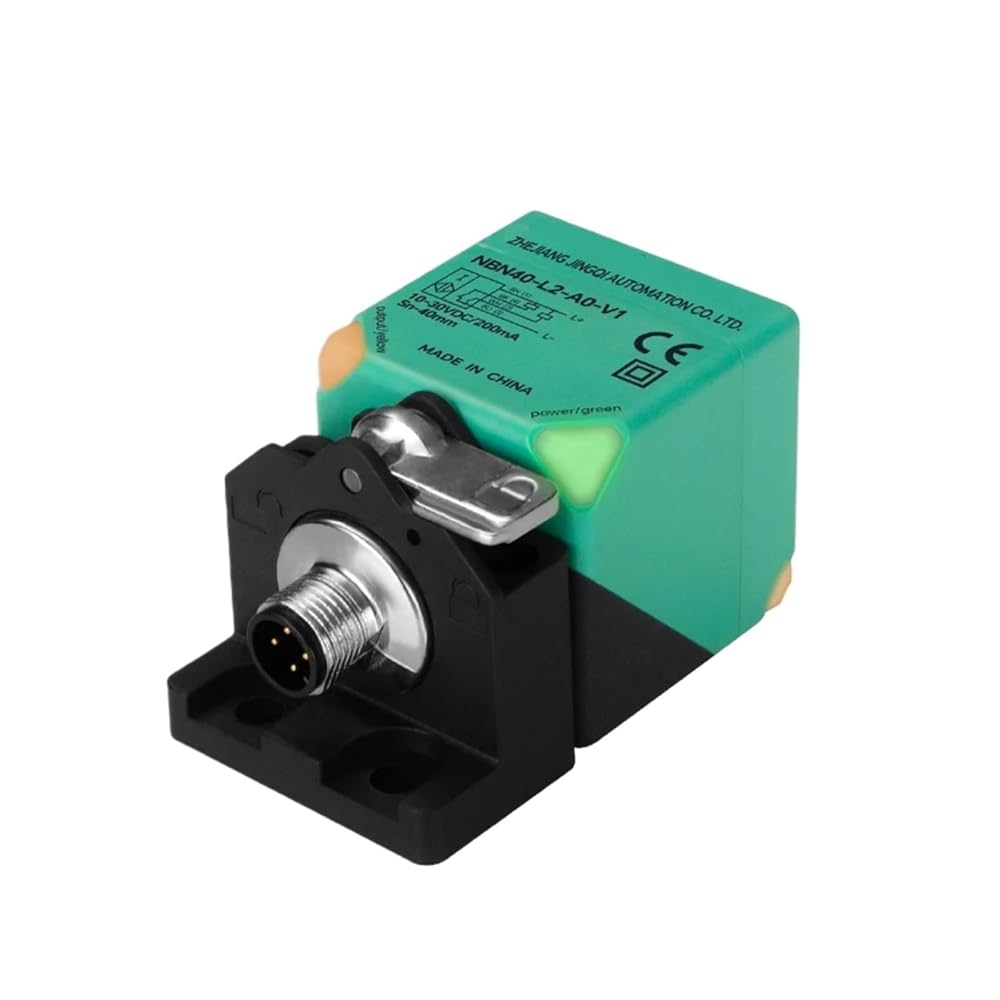

NBB20/NBN40-L2-A2-V1 Proximity Sensor, IP67 NPN PNP 20MM 40MM Long Distance Inductive Metal Proximity Sensor, 1pc
High-concerned chemical : None
Theory : Inductance Sensor
Material : Polymer
Output : Switching Transducer
Use : Position Sensor
Sensing distance : 20/MM40MM
Assured distance : 0-16.2MM/32.4MM
Protection degree : IP 67
Switching frequency : 500Hz
Connection : M12 4PIN Connector
Supply voltage : 10-30V DC
Theory : Self-induction
Sensing surface size : 40*40MM
Sensing Direction : Side sensing
