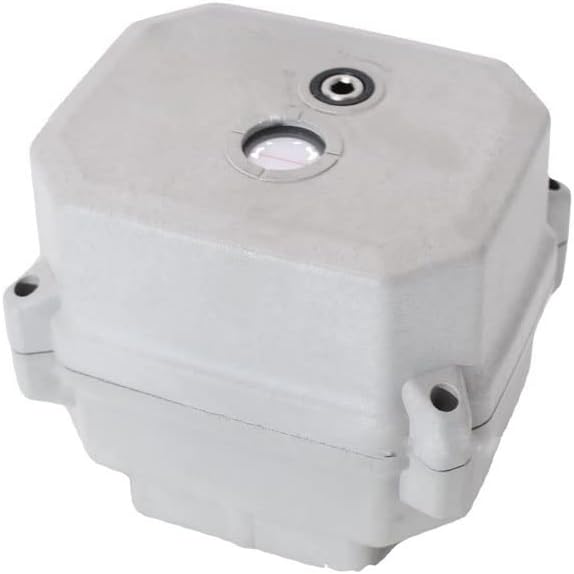

مشغل الصمام الكروي الميكانيكي CR2-01 DC24V A150 مع المؤشر والتجاوز اليدوي in Kuwait

A150-A-CR3-01-AC24V، DC12-24V

KWD 34
ماركة
BOKYWOX
– 1 +

مميزات خاصة

  • Rated Voltage: DC 24V; Wiring diagram: CR2-01
  • Working current: less than 1.5A;Open/close time: less than 12S
  • Life time: 70000 times(testing pressure is 0.4MPa, medium is water);Maximum working pressure: 1.0Mpa(145PSI)
  • Environment temperature: -15~50℃(59-122℉);Liquid temperature: 2-90℃(35.6-194℉)
  • Manual operation: Yes;Open/Close indicator: Yes

وصف

Specification

Connection specification:ISO5211, F03, F05
Maximum working pressure:1.0Mpa
Circulation medium:Fluid,air
Rated Voltage:DC 24V
Wiring diagram:CR2-01
Working current:less than 1.5A
Open/close time:less than 12S
Life time:70000 times(testing pressure is 0.4MPa, medium is water)
Valve body&Actuator material:SS304 & Engineering Plastics PPO
Actuator & Sealing Material:Engineering Plastics PPO,FKM & PTEE
Actuator rotation:90°
Torque force:15N.m
Cable Length:1.5m(4.92FT)
Environment & Liquid temp:-15~50℃(59-122℉),2-90℃(35.6-194℉)
Manual operation & Indicator:Yes
