لوح مربع من سيراميك الزركونيا - لوح عزل مقاوم لدرجات الحرارة العالية، قطعة واحدة (100 × 100 × 0.9 ملم) in Kuwait

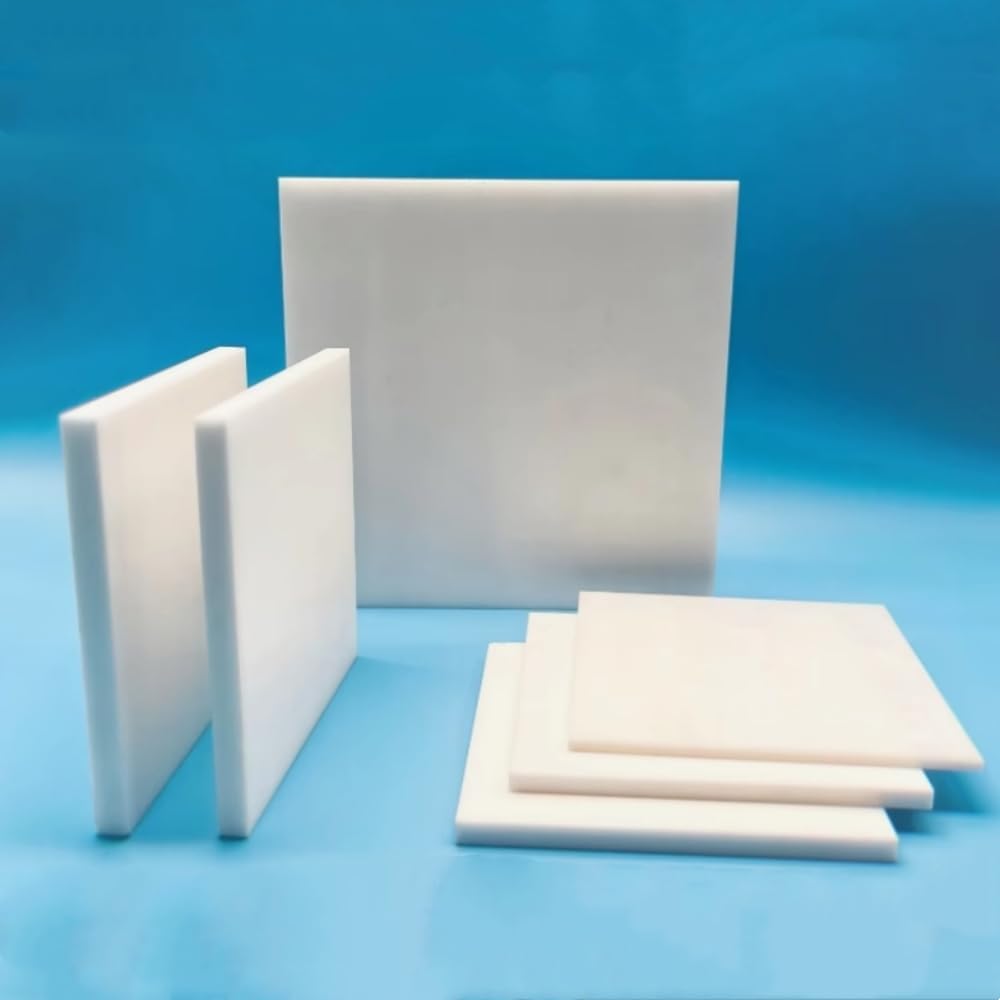

لوح مربع من سيراميك الزركونيا - لوح عزل مقاوم لدرجات الحرارة العالية، قطعة واحدة (100 × 100 × 0.9 ملم)

KWD 30
مقاس100x100x0.9 مللي متر
– 1 +

مميزات خاصة

  • Exceptional wear resistance: Zirconia ceramics offer 15 times the wear resistance of alumina ceramics, making them ideal for demanding applications.
  • Superior hardness: With a Mohs hardness of approximately 8.5, this zirconia sheet is nearly as hard as , ensuring long-lasting durability.
  • Unmatched toughness: Featuring phase change toughening and micro-crack toughening, this ceramic is known as "ceramic steel" for its high strength and fracture toughness.
  • High bending strength: With a bending strength exceeding 1200MPA, this zirconia substrate significantly outperforms tempered glass, making it suitable for use.
  • Excellent thermal and electrical properties: Capable of withstanding temperatures up to 1600℃ and providing outstanding electrical insulation, this sheet is perfect for applications.

وصف

Physical Characteristics
Main ingredient: ZrO2≧94%
Density: 5.9g/cm³
Water absorption: 0
Sintering temperature: 1650℃
Material Characteristics
HV Hardness:1400
Flexural strength 4pt:>11000Mpa
Indentation strength:25000Kgf/cm²
Thermal Performance
Maximum operating temperature: 1600℃
Coef.ofexpansion:10 (X10-6/℃;0-1000℃)
Heat impact:350 △T℃
Pyroconductivity:3W/m.k
Electrical characteristic
Volume resistivity: >10¹²Ω.cm
Insulation breaking strength: 15KT/m
Dielectric constant 1MHZ(E):12.5
