مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

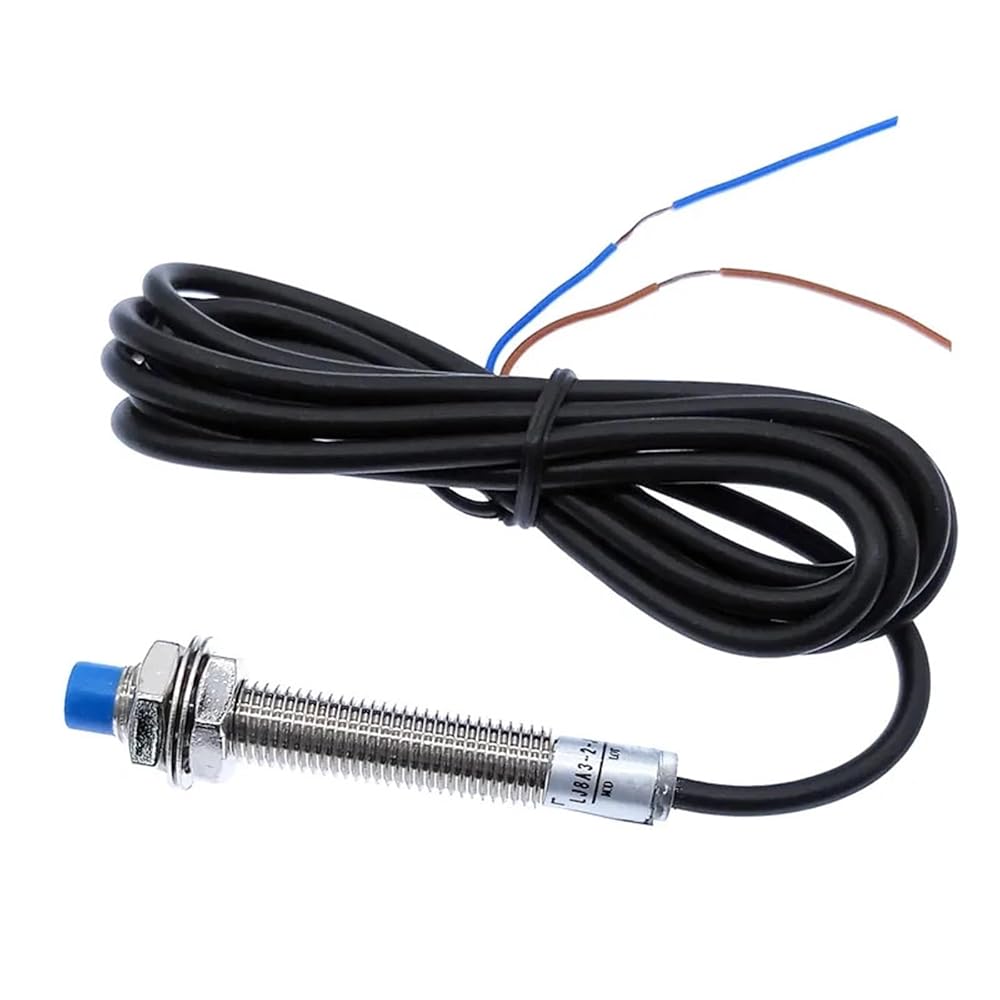

Proximity Switch LJ8A3-2-Z-BX/AX, PNP/NPN NO NC M8 2mm Detect Distance Inductive Sensor Switch, 1pc
LJ8A3-2-Z/BX: DC NPN NO3-wire type 8mm diameter ; 2mm detection distance
LJ8A3-2-Z/BY: DC PNP NO 3-wire type 8mm diameter ; 2mm detection distance
LJ8A3-2-Z/AX: DC NPN NC 3-wire type 8mm diameter ; 2mm detection distance
LJ8A3-2-Z/AY: DC PNP NC 3-wire type8mm diameter ; 2mm detection distance
LJ8A3-2-Z/EX: DCNO2-wire type8mm diameter ; 2mm detection distance
LJ8A3-2-Z/DX: DCNC2-wire type8mm diameter ; 2mm detection distance
LJ8A3-2-J/DZ: ACNC2-wire type8mm diameter ; 2mm detection distance
LJ8A3-2-J/EZ: AC NO2-wire type8mm diameter ; 2mm detection distance
LJ8
Detection distance
2mm± 10%
Delay distance
10% below of the decection distance
Detection objete
Magenetic
Effective voltage
DC: 12 - 24V AC: 110 - 220V
Response frequency
DC:0.5kHz
AC:25Hz
Working voltage
DC:12V-24V (6V - 36V)
AC: 110V - 220V (36V - 250V)
Control output
DC: NPN / PNP:300mA DC 2 wire:200mA
AC :400mA
Loop protection
DC :reversal connection protection protection, surge avsorption ,load short-circuit protecrion
AC : surge avsorption
Material
Housing: Nickel plated brass
Detection surface : ABS
High-concerned chemical : None
Current : 200 mA
Material : Alloy
Switch Type : Pressure Switch
Model Number : LJ8A3-2
Features : LJ8A3-2
Item Type : SWITCHES
