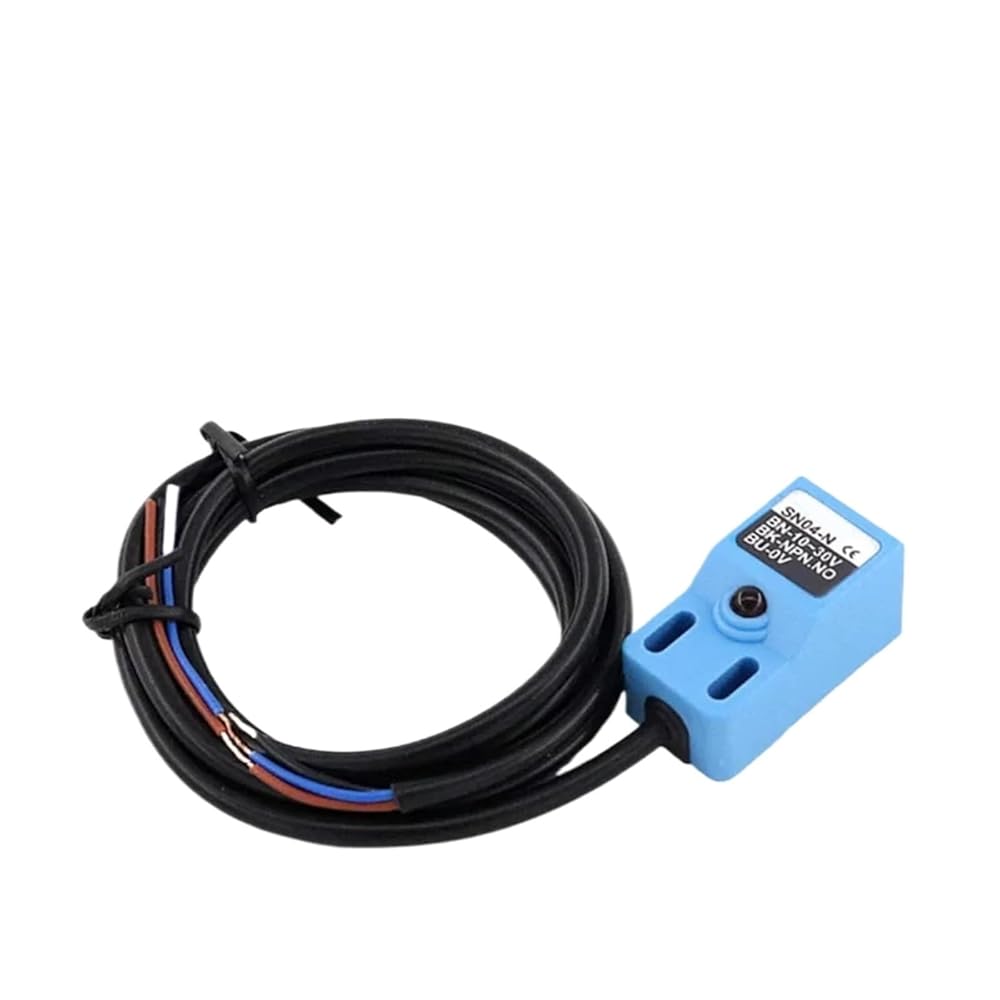

Metal Detection Sensor Proximity Switch, for Metal Inspection SN04-N SN04-N2 SN04-P SN04-P2 SN04-D1, 1pc
SN04-P1: PNP Normally Open 3-Line type 4mm detection distance
SN04-P2: PNP Normally Close 3-Line type 4mm detection distance
SN04-N1: NPN Normally Open 3-Line type 4mm detection distance
SN04-N2: NPN Normally Close 3-Line type 4mm detection distance
Detection distance :4mm± 10%
Set distance:0~3.8mm
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 18*18*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
High-concerned chemical : None
Current : 300 mA
Material : Plastic
Switch Type : Proximity Switch
Model Number : SN04 P1/P2/N1/N2
Features : Proximity Sensor switch
Item Type : SWITCHES
Product Name: : Proximity Sensor switch
Voltage: : 6~36V DC(9V 12V 18V 24V 36V)
The diameter : 18*18*36mm
Detecting distance: : 0~4mm
Switch Type: : PNP/NPN NO/NC
Wire: : 3-Wire type
