Description:
Intelligent liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various acidic substances, alkali and all kinds liquid in high pressure airtight container
Specifications:

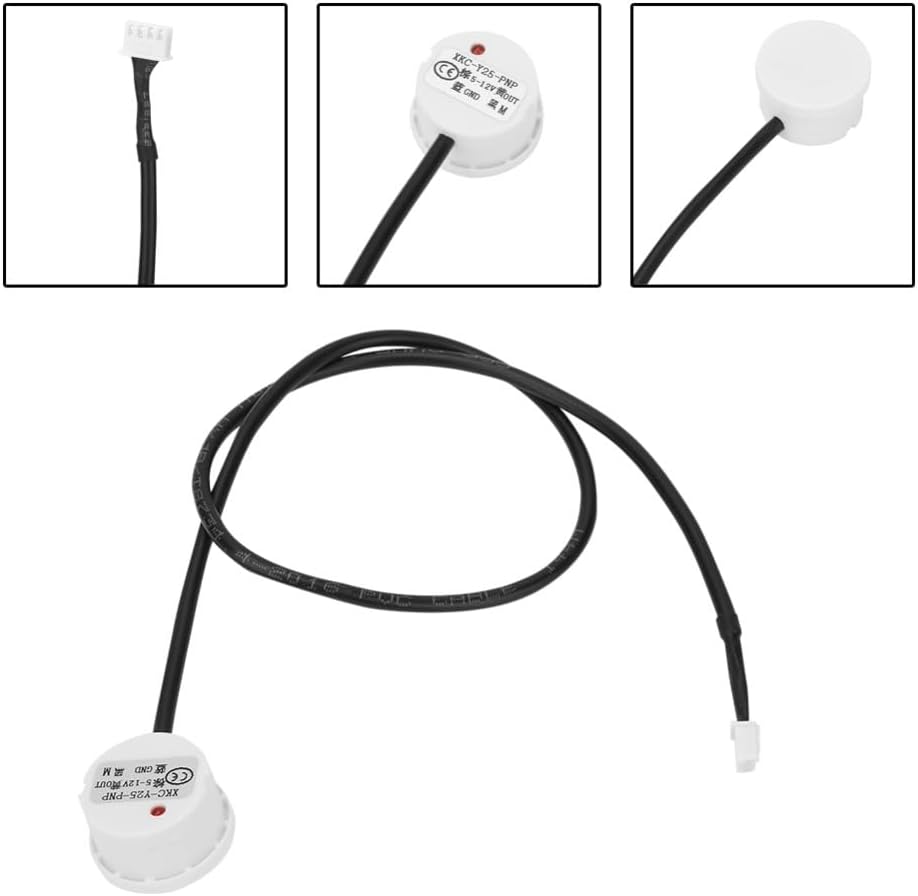

Model:XKC-Y25-PNP
Output:PNP
Input Voltage (InVCC): DC 5~12V
Current: 5mA
Output Voltage (high level): InVCC
Output Voltage (low level): 0V
Output Current: 1~100mA
Response Time: 500mS
Operating Temperature: 0~105℃
Induction Thickness (sensitivity): 0~13 mm(0.00~0.51 in)
Communication: RS485
Humidity: 5% ~ 100%
Material: PC-VO
Ingress Protection: IP67

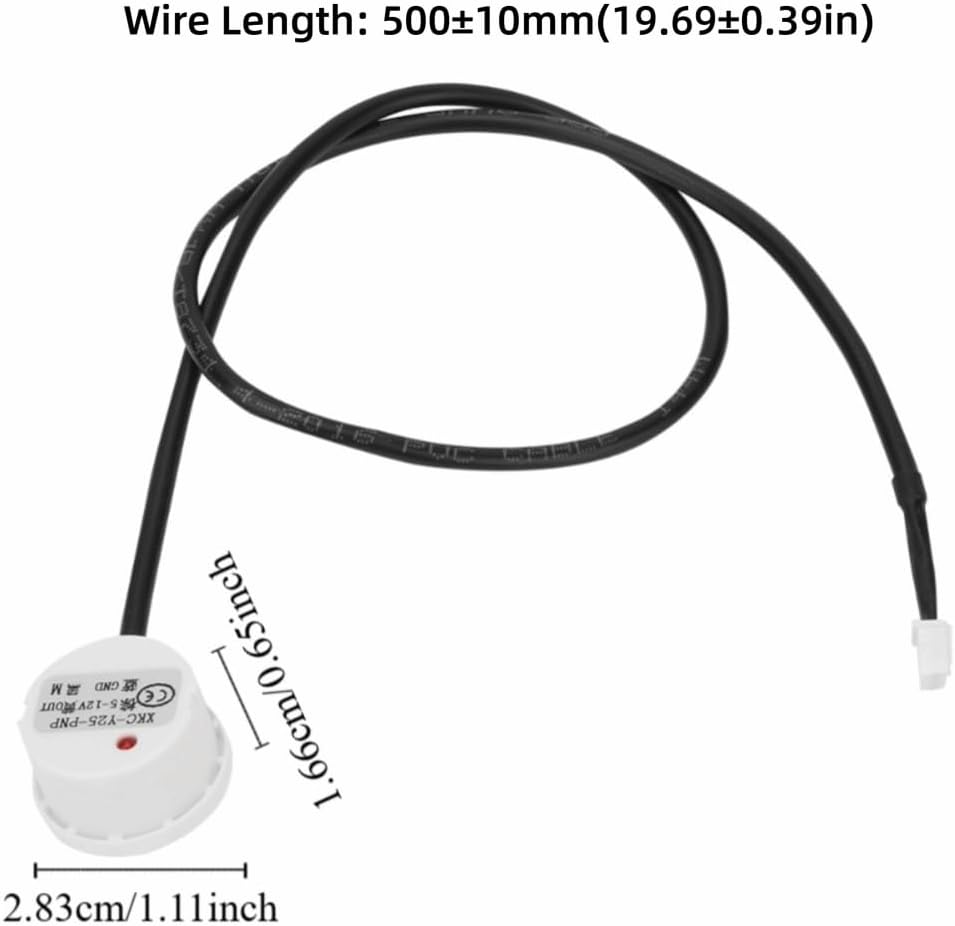

Sensor Dimensions: 28.3*16.6mm(1.11*0.65in)
Wire Length: 500±10mm(19.69±0.39in)
Package Includes:
1 x Sensor
