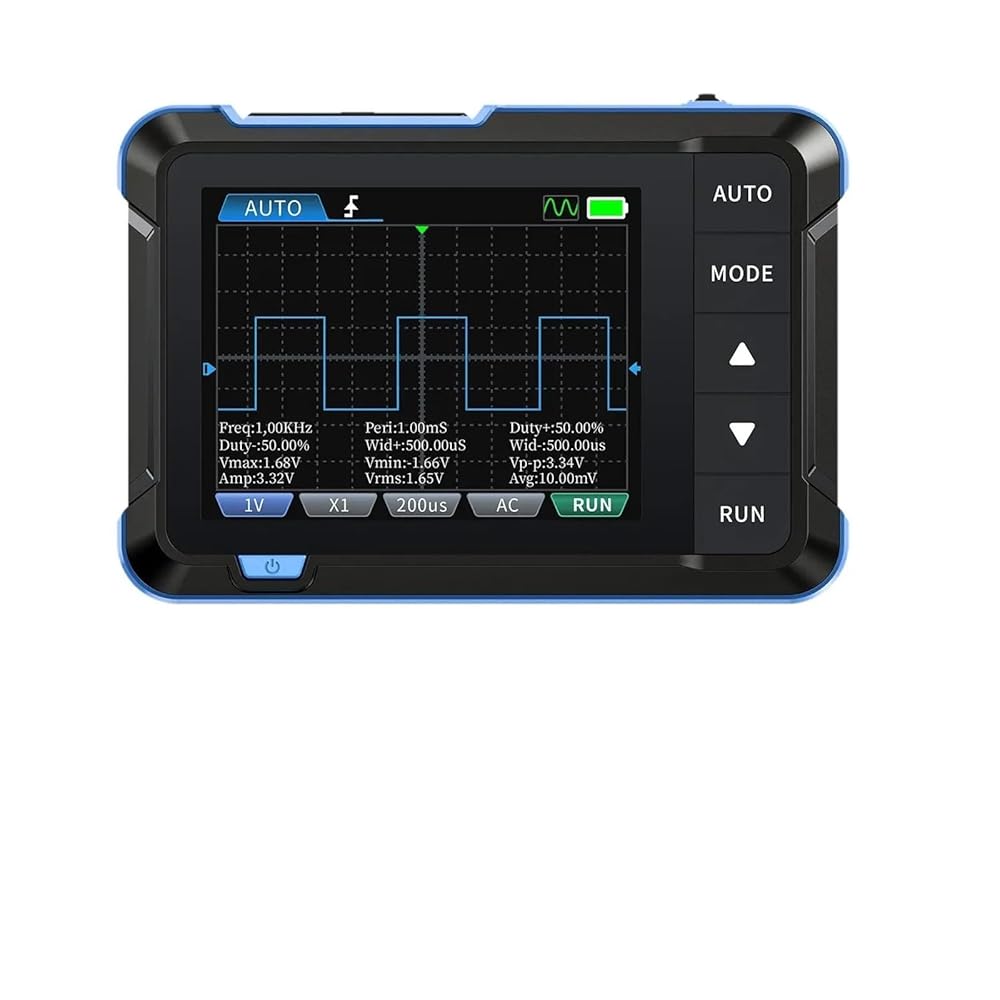

DSO153 Portable Digital Oscilloscope Signal Generator 2-IN-1 1MHz Bandwidth 5MSa/s Sampling Rate Electronics Repair Tools
DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.
This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD screen and a built-in 1000mAh lithium battery, it can be used for about 4 hours when fully charged.* DSO153 Mini Protable Handheld Oscilloscope *
Sampling rate:5MSa/s
Bandwidth:1MHz
Vertical sensitivity:10mV/Div-20V/Div(Progress according to the 1-2-5 way
Time base range:500ns/Div-20s/Div(Progress according to the 1-2-5 way
Voltage range:X1:40V (Vpp:80V) X10: 400V (Vpp :800V)
Trigger method:Auto / Normal / Single
Coupling method:AC/DC
* Signal generator *
Frequency:0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display:2.8 inches/PPI:320*240
USB charging:5V/1A
Lithium battery capacity:1000mAh
Size:99x68.3x19.5mm
Weight:100gNO.1(Standard)
1 x Host Device
1 x Alligator clip probe
1 x Charging cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box
NO.2(Option)
1 x Host Device
1 x P6100 High Voltage Probe
1 x Adapter
1 x Alligator Clip Probe
1 x Charging Cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box
==========
Battery Included : Yes
High-concerned chemical : None
Model Number : DSO153
Certification :

DIY Supplies : Electrical
Band Width : 1MHz
Digital Channels : 1
Model : DSO153
Display Resolution : 320*240 Pixels
Model : DSO153
Vertical sensitivity : 10mV/Div-20V/Div
Time base range : 500ns/Div-20s/Div
Voltage range : X1:40V (Vpp:80V),X10: 400V (Vpp :800V)
Trigger method : Auto/Normal/Single
Coupling method : AC/DC
Frequency : 0-10KHz
Duty cycle : 0-100%
Amplitude : 0.1-3.3V
Waveforms : 14 kinds
Display : 2.8 inches/PPI:320*240
USB charging : 5V/1A
Lithium battery capacity : 1000mAh
Size : 99x68.3x19.5mm
Weight : 100g
