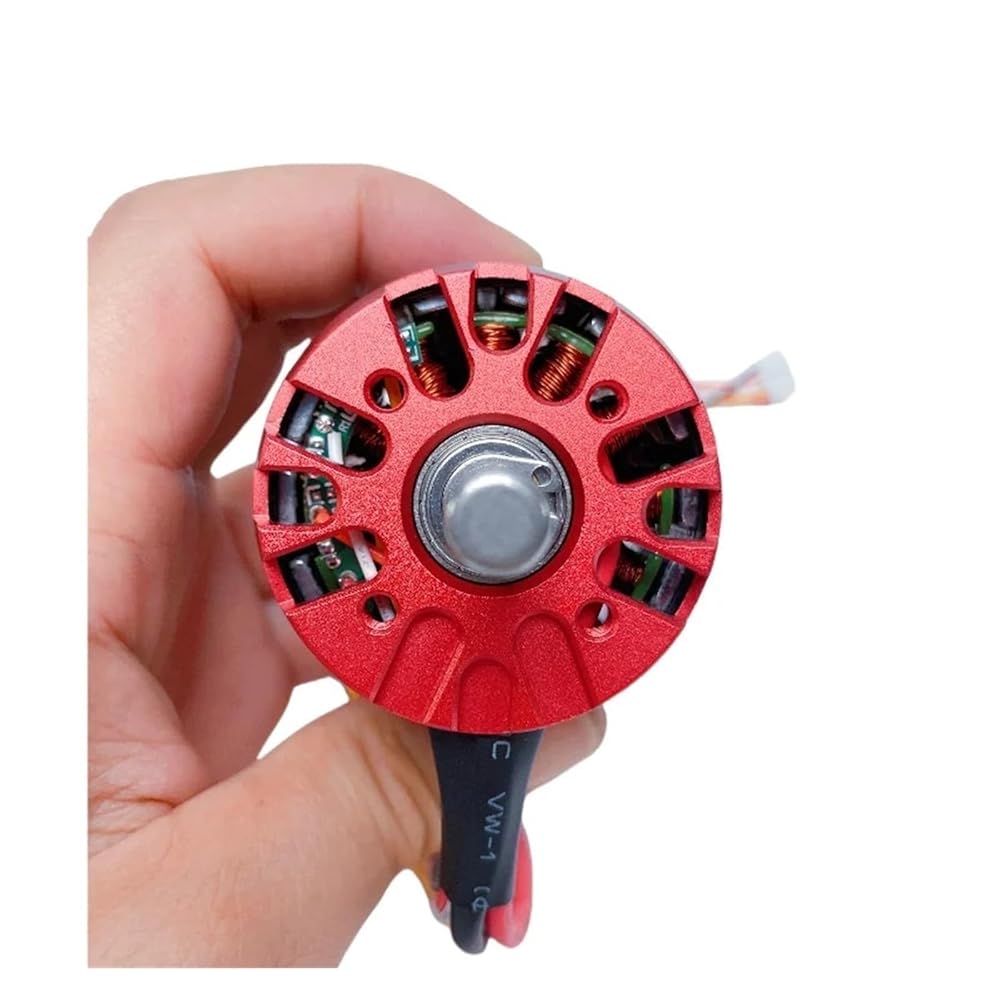

1pcs 5065 200KV 270KV 320KV 6-12S BLDC outrunner Brushless Motor Red sensored for electric sktaeboard balancing scooter thrust
Name:Brushless Motor
Model: N5065 320KV
Kv value: 320rpm/v
ESC: 80A
Power:1820W
Shaft size:Dia.8 x 20mm
The motor length: 78mm
The motor diameter: 50mm
Weight:490g
Prop:14 x 10,15 x 10,16 x 10
Pull:3KG-5.5KG
Max. Voltage: 41.5
Lipo: 3S-8S (11.1V-29.6V)
Internal resistance: 20mOhm
No-load Current: 1.0-3.3A
No-load Voltage: 13V
Material:Metal
Colour: Photo color
Cable length: about 140mm
Black line is connected "-",Red line is connected "+",Yellow line is connected receiver
Packing Includes: 1 x N5065 320KV Motor
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Specifications:Name:Brushless MotorModel: N5065 270KVKv value: 270rpm/vESC: 80APower:About 1820WShaft size:8*20mmThe motor length: 83mmThe motor diameter: 49-50mmProp:14*10,15*10,16*10Pull:3KG-5.5KGLipo: 3S-8S (11.1V-29.6V)Cable length: about 110mm
==========
