Specifications:

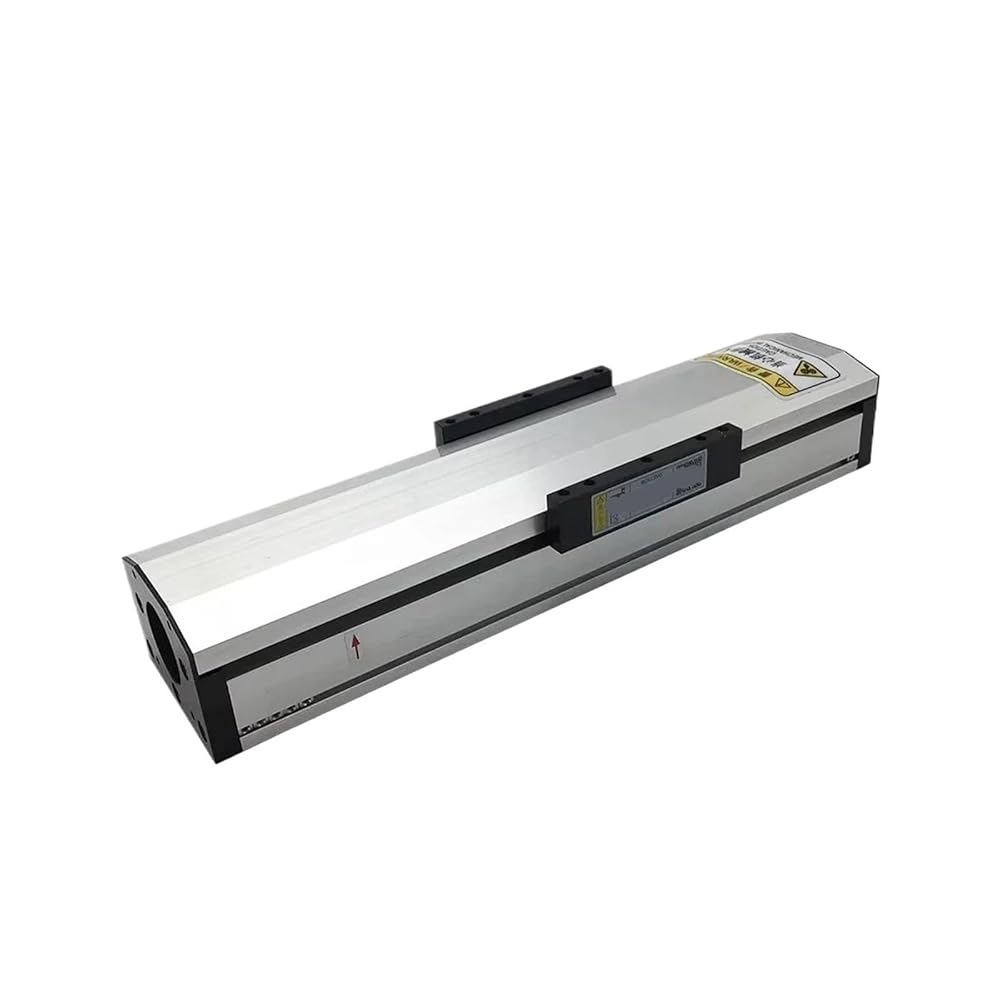

Model: QMF90
Module width: 90mm
Effective stroke: 100mm-1000mm optional
Total length: effective stroke + 170mm
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm per screw rotation) / SFU1610
Guide rail type: 2*MGN12R (12mm width)
Slider type: 4*MGN12C
Horizontal load-bearing capacity: 70KG (maximum)
Vertical load-bearing capacity: 35KG (maximum)
Motor bracket: suitable for Nema23 57mm stepper motor
Module material: industrial aluminum profile
Repeat positioning accuracy: 0.03mm-0.05mm
Ball screw material: bearing steel
Ball screw accuracy: C7
Maximum moving speed: 250mm/s
