Cross Roller Guides
If you select "For Nema23 bracket":
1* SXG120*120 sliding table
1* 8mm coupling for Nema 23 57mm stepper motor
If you select "For Nema34 bracket":
1* SXG120*120 sliding table
1* 14mm coupling for Nema 34 86mm stepper motor
If you select "For 60 Servo Bracket":
1* SXG120*120 sliding table
1* 14mm coupling, suitable for 60mm servo motor
If you select "For 80 Servo Bracket":
1* SXG120*120 sliding table
1* 19mm coupling, suitable for 80mm servo motor

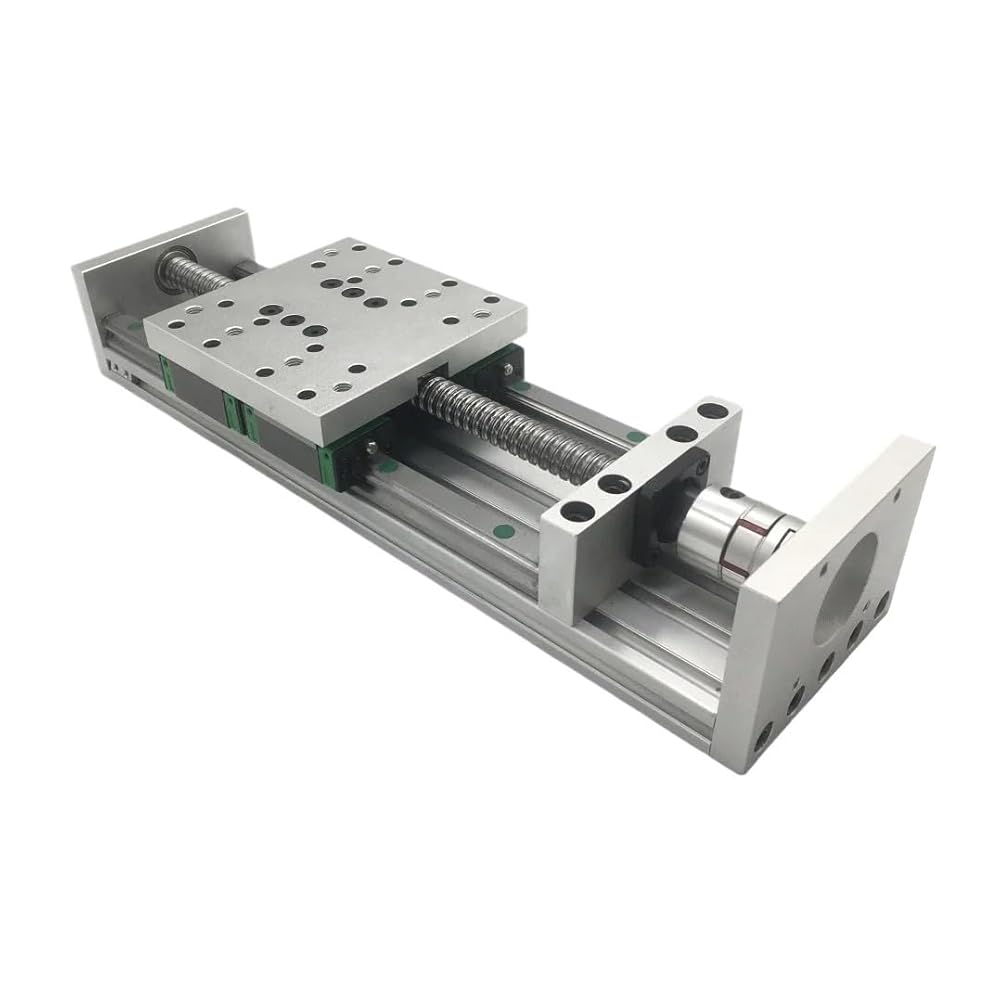

Model: SXG120*120
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, screw rotation one circle, panel movement 5mm) / SFU1610 Ball screw accuracy: C7 Effective stroke: 50mm-1200mm optional
Total length: effective stroke + 207mm Phone panel size: 120*120mm
Rail width: 100mm Rail diameter: 15mm
Guide rail type: 2*HGR15
Slider type: 2*HGH15CA Horizontal load: Maximum 100KG
Vertical load: Maximum 50KG Maximum speed: 500mm/s Ball screw repeatability: 0.02-0.03mm
