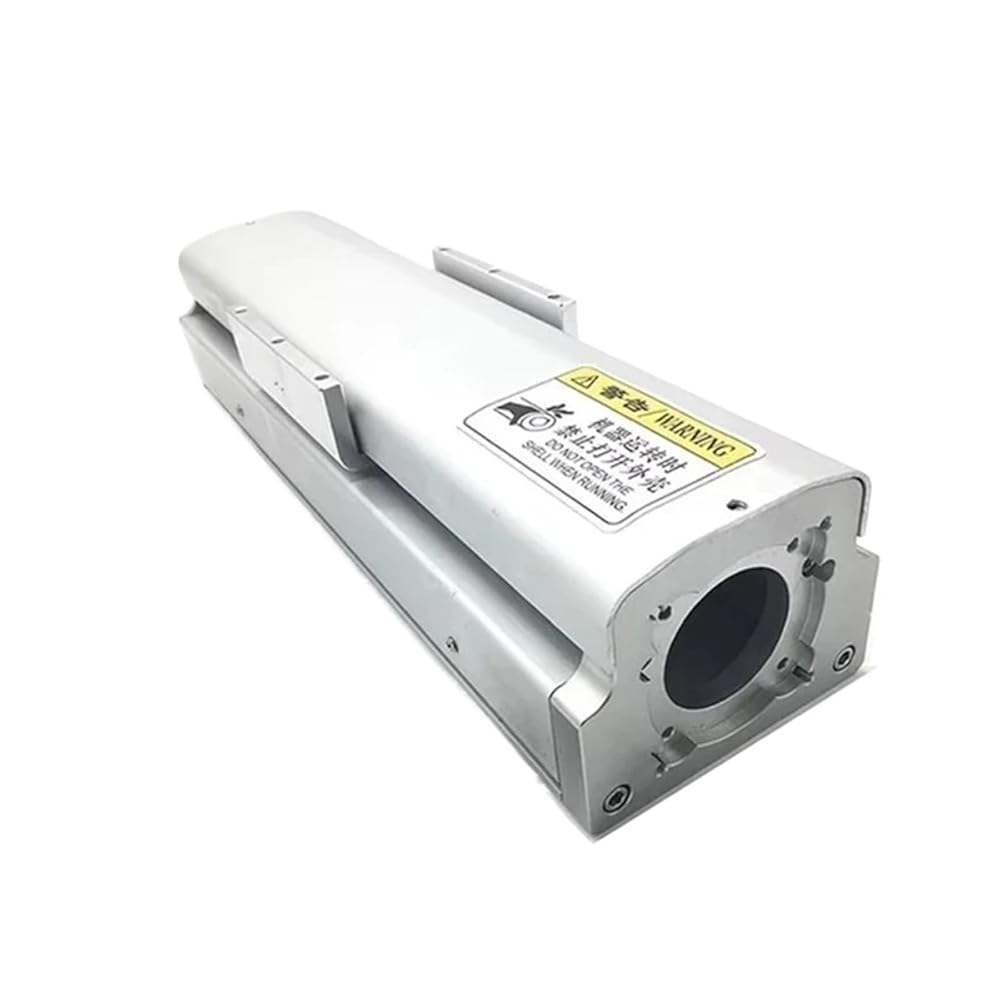

Linear Motion Guide Actuators
Specifications:
Model: QMF120
Stroke: 100-800MM optional (effective stroke)
Horizontal load-bearing capacity: 100KG (maximum)
Vertical load-bearing capacity: 50KG (maximum)
Motor bracket: Nema34 86mm stepper motor
Slide rail height: 96mm
Module width: 120mm
Guide rail: 2XHGR15 (15MM width)
Block: 2X HGH15CA
Ball screw model: SFU1605/1610
(Tip: SFU1605 means: screw diameter 16mm, pitch 5mm, each screw rotation, the slide moves 5mm)
Ball screw accuracy: C7
Repeat positioning accuracy: 0.02-0.03mm
Maximum movement speed:
250 mm/s (SFU1605);
500 mm/s (SFU1610);
