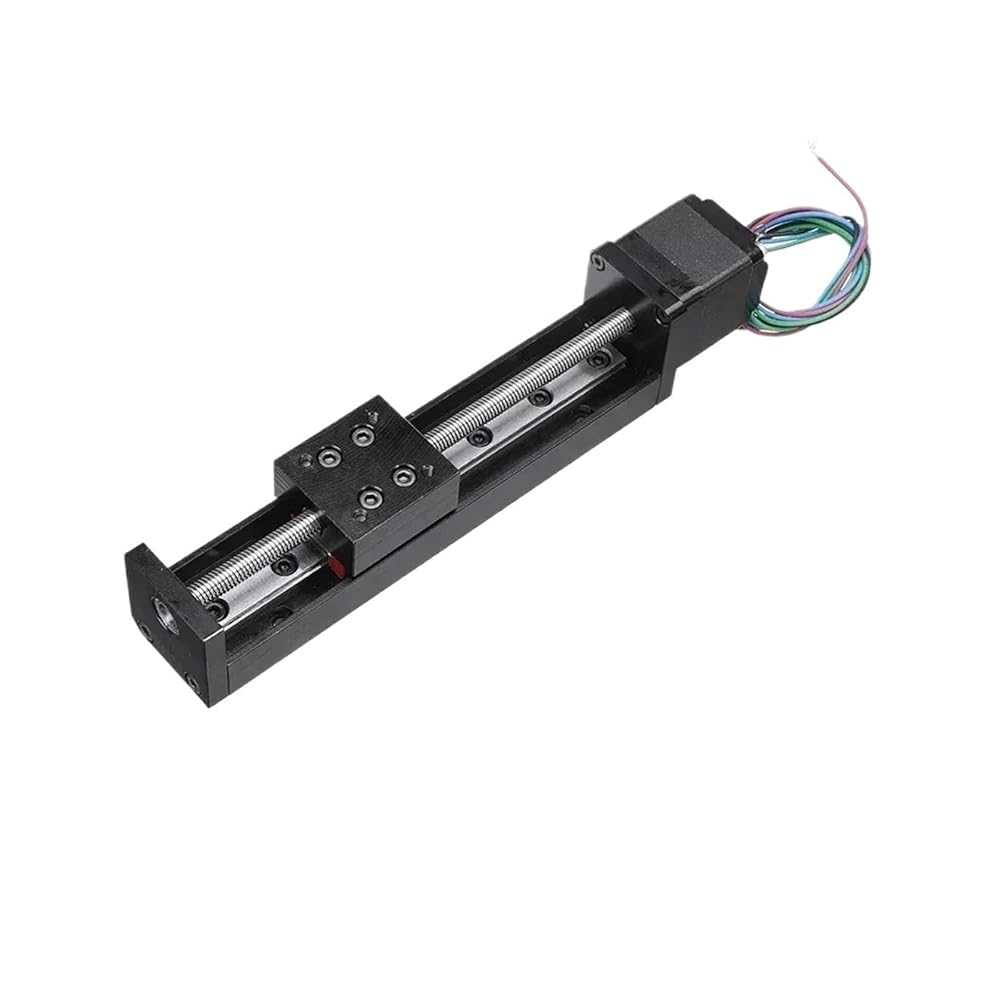

Linear Motion Guide Actuators
Sliding table specifications:
Model: T06
Slide rail type: trapezoidal screw slide Horizontal load: 5KG (maximum) Vertical load: 2.5KG (maximum)
Effective stroke: 50-300mm
Total length: Effective stroke + 75mm Moving panel size: 30mm*32mm Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width: 6MM
Block: MGN9H
Screw precision: C7
3D Model: Click here to download
Pitch: 1mm/2mm/4mm/6mm/12mm (If the selected pitch is 2mm, it means that the moving panel moves 2mm for each rotation of the motor.)
