1* Coupling with 8mm hole (Nema23 57mm motor bracket)
1* Coupling with 14mm hole (60mm servo motor bracket)

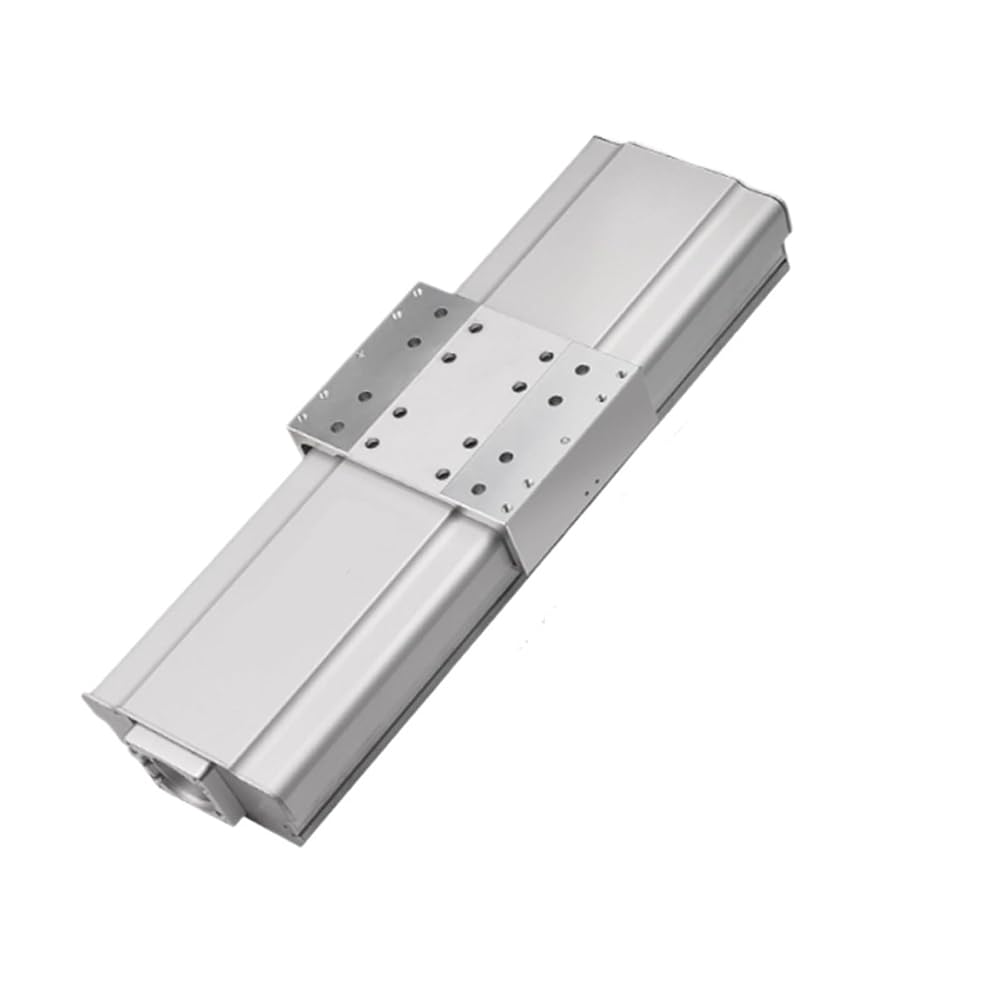

Model: QMF100
Module width: 100mm Effective stroke: 100mm-1000mm optional
Total length: effective stroke + 270mm (QMF100)
Ball screw model: SFS1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm per screw rotation) / SFS1610
Mobile platform size: 100mm*112mm
Ball screw outer diameter: 16m
Block: 4*MGN15CA
Guide rail: 2*MGN15
Horizontal load-bearing capacity: 35KG (maximum)
Vertical load-bearing capacity: 20KG (maximum)
Motor bracket: Nema23 57mm stepper motor/60mm servo motor
Module material: industrial aluminum profile
Repeat positioning accuracy: ±0.02mm
Ball screw accuracy: C7
Model: QMF130
Module width: 130mm Effective stroke: 100mm-1000mm optional Total length: Effective stroke + 285mm (QMF130)
Ball screw model: SFS1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm per screw rotation) / SFS1610
Mobile platform size: 130mm*165mm
Ball screw outer diameter: 20mm
Block: 4*MGN15CA
Guide rail: 2*MGN15
Horizontal load-bearing capacity: 48KG (maximum)
Vertical load-bearing capacity: 26KG (maximum)
Motor bracket: Nema23 57mm stepper motor/60mm servo motor
Module material: industrial aluminum profile
Repeat positioning accuracy: ±0.02mm
Ball screw accuracy: C7
