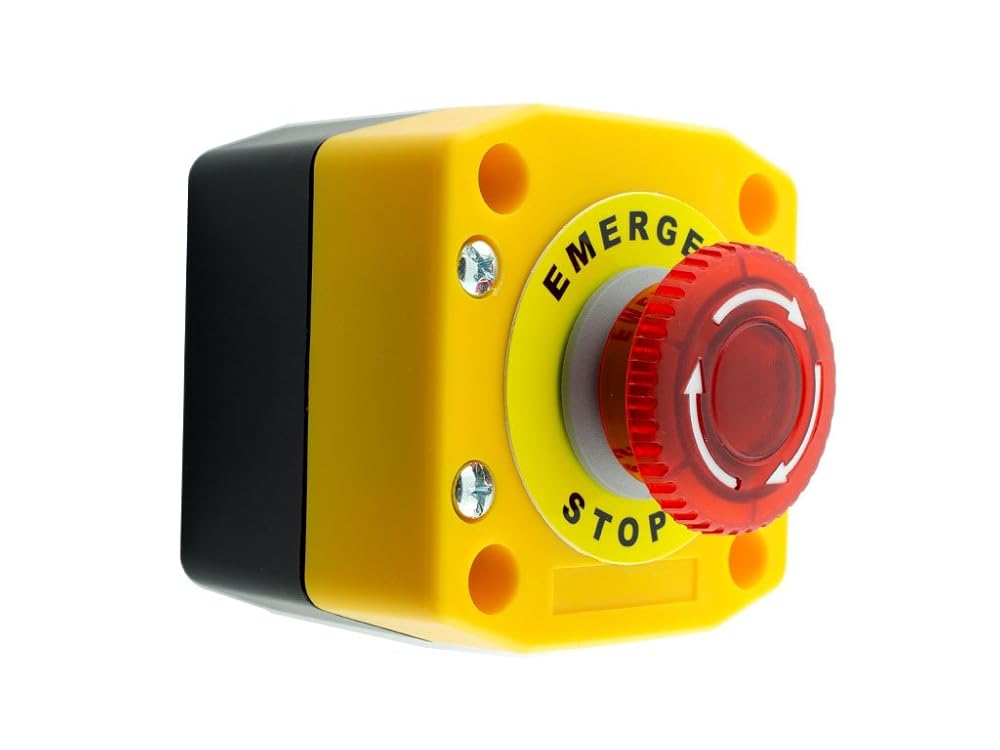

Alpinetech B1MBL مضاء بإضاءة LED باللون الأحمر 22 مم 1NC مفتاح إيقاف الطوارئ مع صندوق التحكم (24 فولت تيار متردد/تيار مستمر)
مقاس24 فولت تيار متردد/تيار مستمر
مميزات خاصة
- Modular Design for Easy Installation and Wiring
- Control Station(CS-B1), Legend Plate (LP-ES) and Push Button Switch(PS-MBL22R1C-24)
- Contact Type: 1NC Normally Closed, 1NO (optional); Insulation Voltage: Ui600V; Thermal Current: 1th 10A
- Safety Standards: UL listed, CSA Certified and TUV Approved; Made in Taiwan
- Industrial Grade for Tough Environment
وصف
Push Button Station
Box Size: 7.5 x 7.5 x 8.6cm (L*W*H)
Mounting Screw Hole Diameter: 5mm
Switch Information
Mounting Hole Size: 22mm
Button Type: Mushroom
Button Color: Red
LED Color & Voltage Red 24V AC/DC
Head Diameter: 40mm
Operation Type: Maintained/Latching (Push to Lock, Turn to Release)
Switch Contact: 1NC (Normally Closed)
Terminal Type: Screw
Ui: 600V; ITH: 10A
Voltage rating: 120VAC 6A
Protection Rating: IP65
Mechanical Life: 1,000,000
Panel Thickness: 1-10mm
Depth Behind Panel: 2"
