Globe Valves
describe
feature:

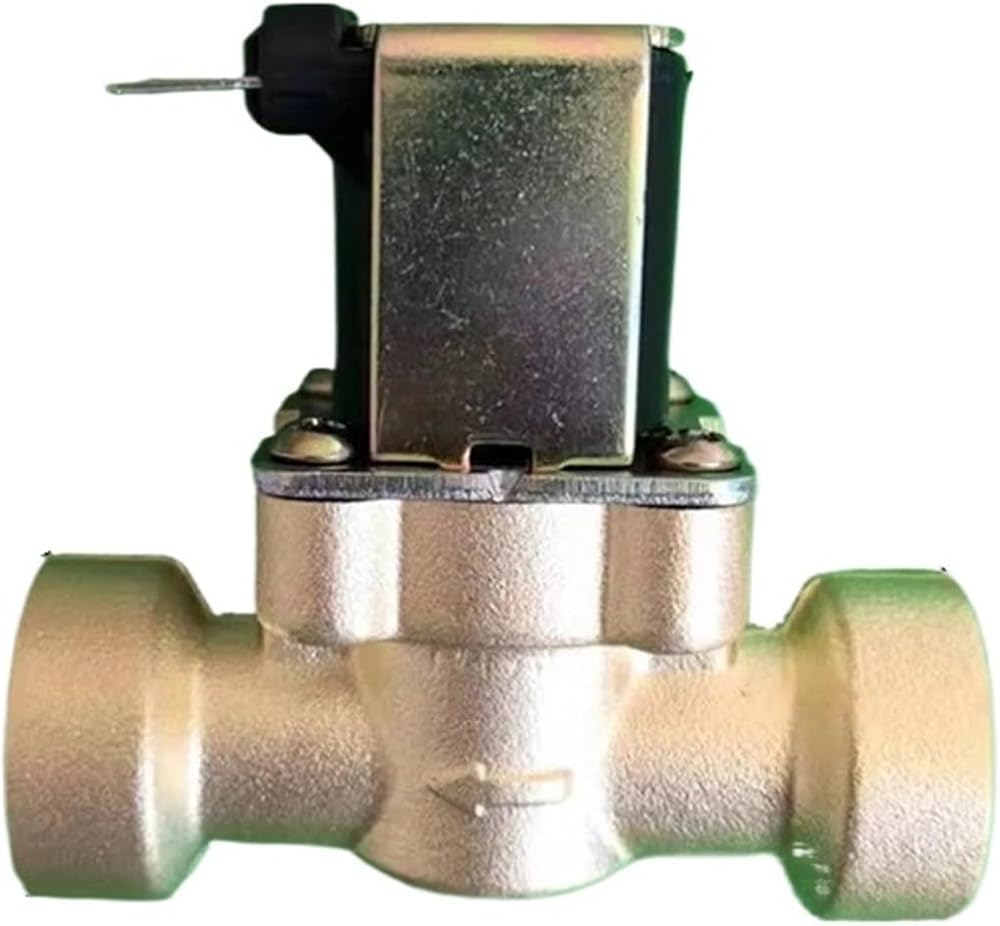

This solenoid valve adopts an all-brass casting structure, which is precise and reliable, and has the characteristics of wear resistance, anti-corrosion and high temperature resistance.
The function of the pressure regulating valve (stabilizing valve) is similar to that of the water flow switch.
The solenoid valve not only maintains constant flow, but also prevents dry burning and monitors flow.
There is no mechanical power consumption, and the flow is stable and adjustable.
This solenoid valve has the characteristics of wear resistance, corrosion resistance and high temperature resistance.
Suitable for pure water, high-end water heaters, water dispensers, water heaters, direct drinking machines, water purifiers, steam engines, energy-saving air conditioners, water treatment, cooling equipment and water industry and other fields.
Specification:
Material: Brass
Voltage: 12V DC/24V DC/220V AC
Nominal diameter: G1/2''
Water pressure: 0.02-0.8Mpa
1. Environmental conditions of low-pressure solenoid valve inlet valve
Ambient temperature: 0～40℃
2. Model and rated technical parameters
Type: (one-way) solenoid valve
Rated voltage: 12V
Working method: short-time quota system (intermittent work cycle)
Insulation class: E
Fluid used: (0-55℃) water
Use water pressure: 0.02-0.8Mpa
3.Flow characteristics
Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8
Flow (L/min): > 5 > 11 > 18 > 32
Nominal diameter: 4-point double thread, outlet diameter 13 (mm)
