Miniature Cylindrical Connectors

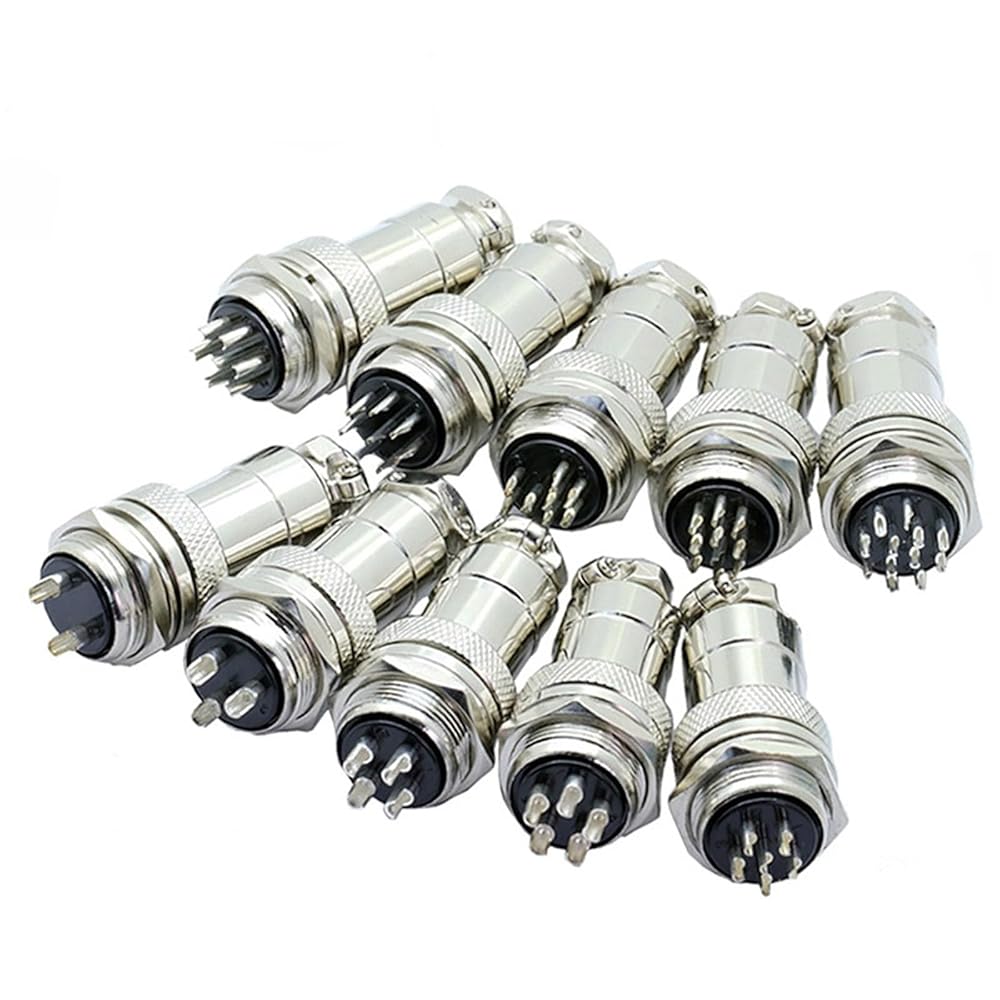

GX20 Aviation Connector Male & Female 234/5/6/7/8/9/10/12/14 Pin Diameter 20mm Aviation Plug Socket Circular Connector

Diameter :20mm

Ambient temperature: -50 ~ +70 C

Relative humidity: up to 98% at +40 C

Atmospheric pressure: up to 4,4 kpa

Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2

Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2

Centrifugal: acceleration 250m/s2

Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A

Contact resistance: (each contact pair)Less than 0.005

Insulation resistance: In normal conditions, not less than 1000M; after constant warm tests, not less than 20M.

Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V, 5pin/ 7pin -1200V,

After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V

Packing: PP Bag

Package included: 10 Sets
