Globe Valves
Work principles

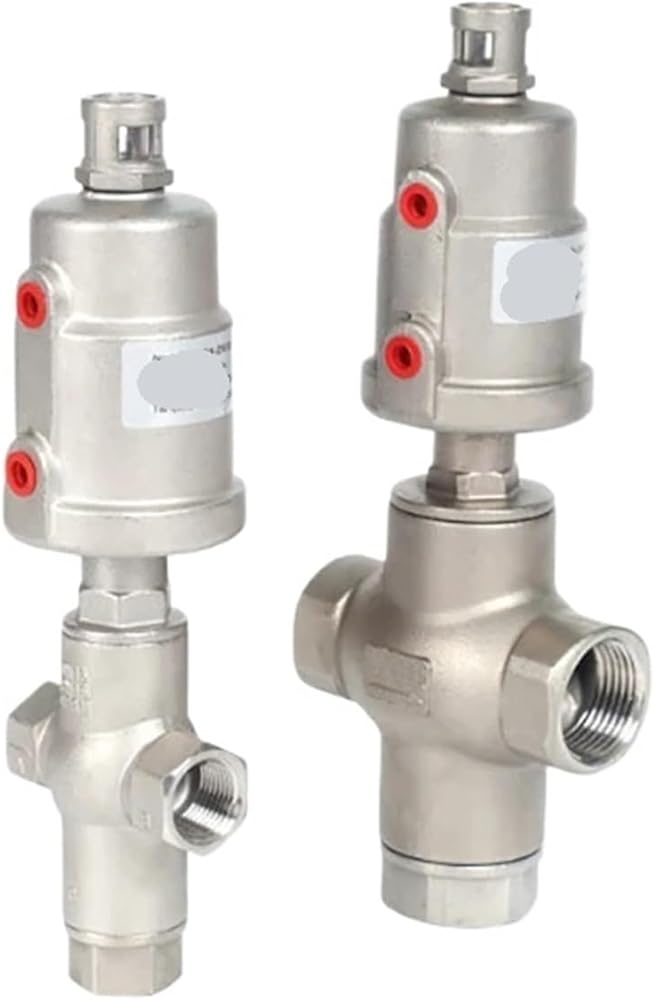

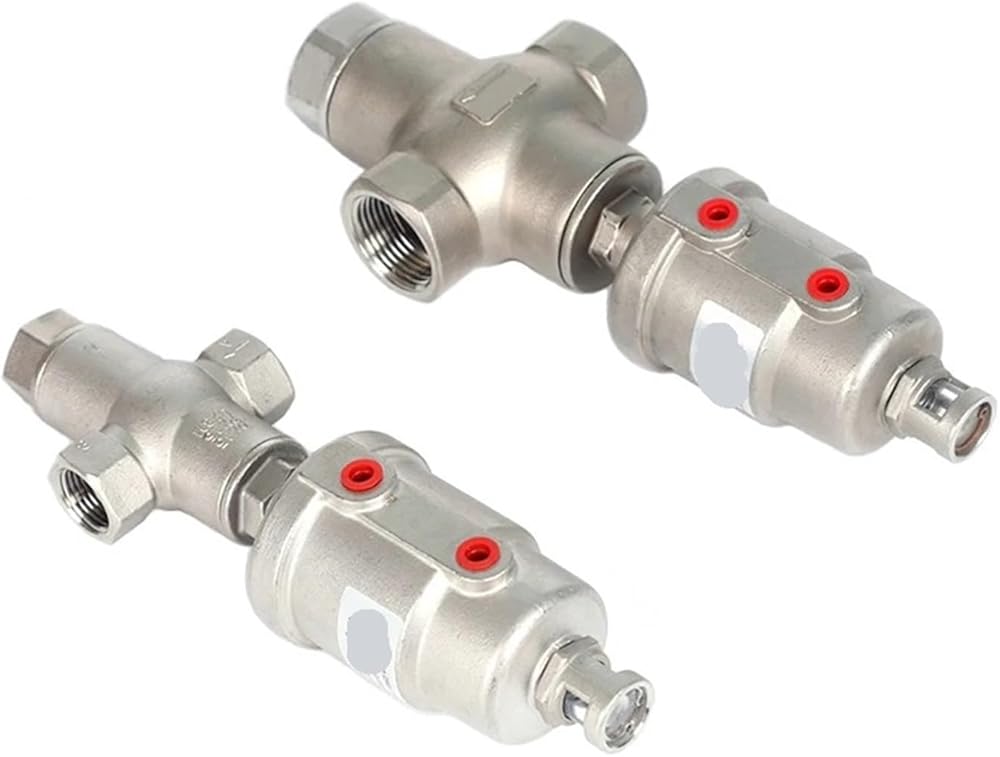

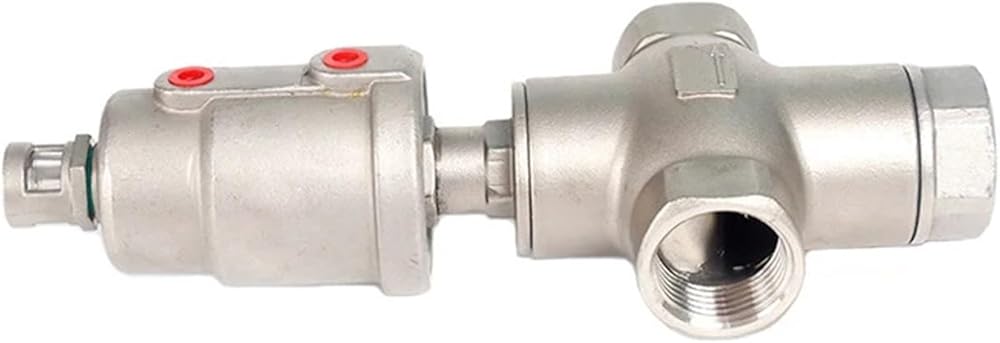

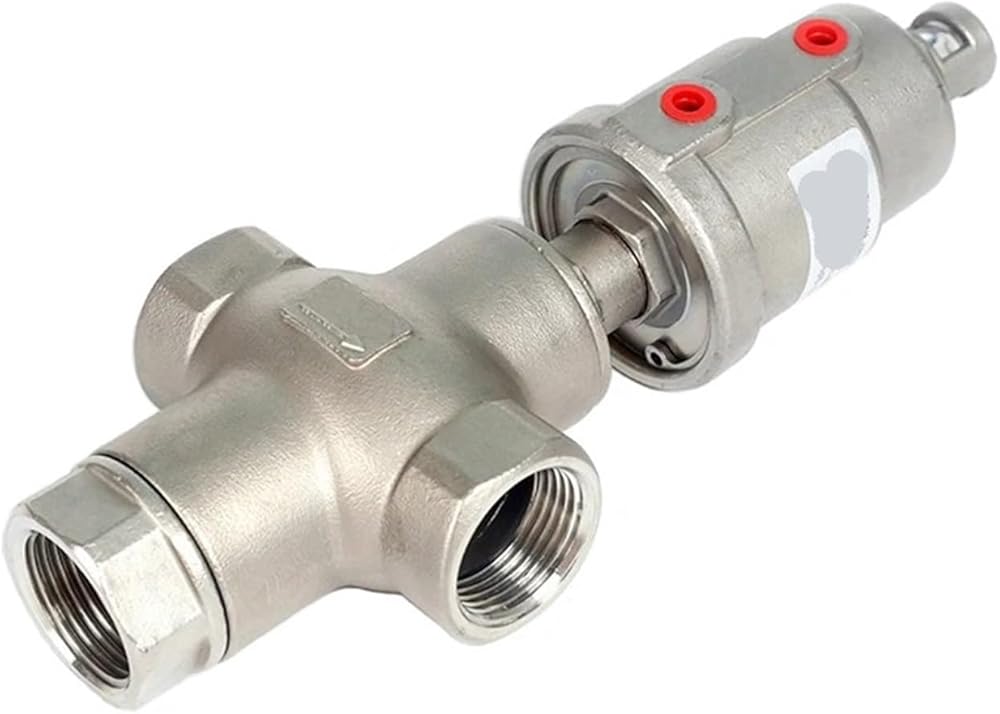

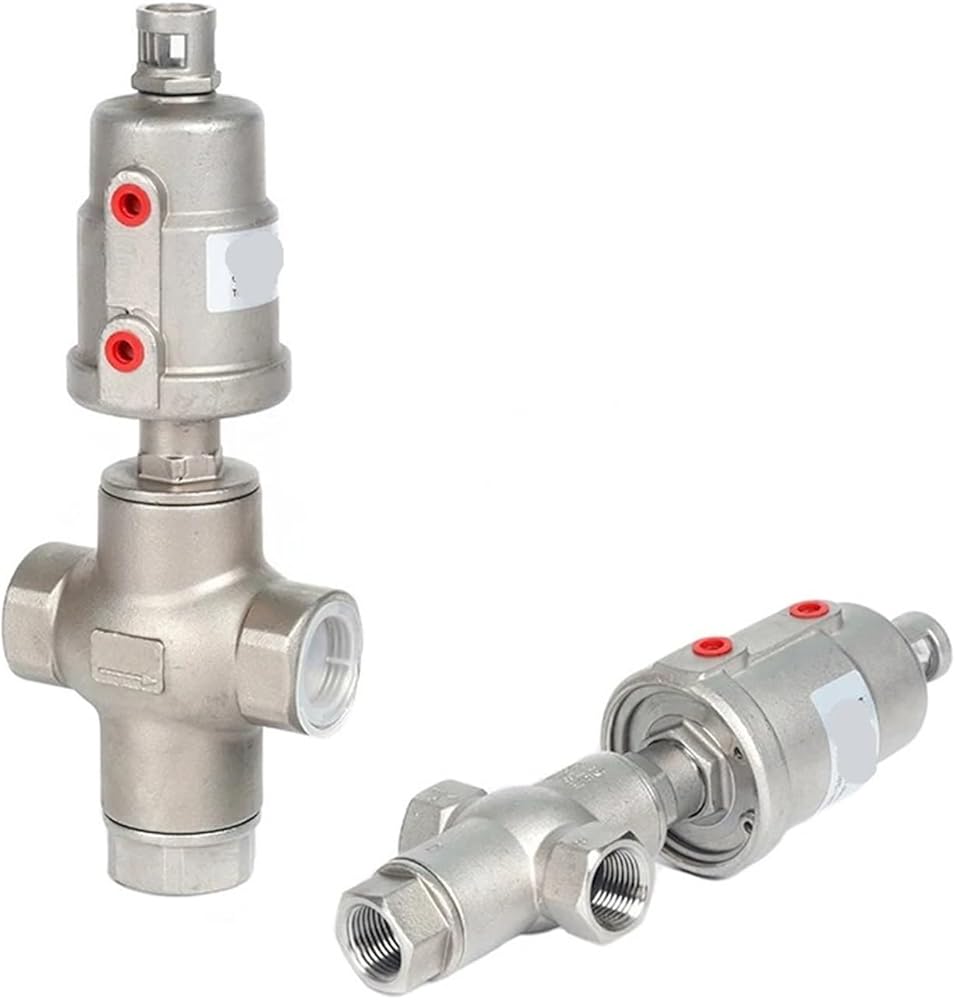

This valve has three through holes, which can realize the functions of reversing, diverting, or mixing, and can replace the two two-way stop valves to a certain extent. When the valve is not working, due to the action of the spring force, end C of the valve is normally closed and end B is normally open; when the compressed gas drives the actuator piston, end C of the valve is open and end B is closed. In double-acting form, the valve opens and closes controlled by compressed air.
Working pressure: 0-16 bar (O-232psi)
Control pressure: 3-8bar (43.5-116psi)
Control medium: clean compressed air or neutral gas
Valve body material: CF8M
Cylinder material: CF8
Sealing material: polytetrafluoroethylene
Medium temperature: -10℃~+180℃
Ambient temperature: -10℃~+80℃
Control form: single action/double action
Connection form: internal thread
Applicable media: water, steam, oil, neutral gas or liquid, organic solvent, acid-base solution, etc.
Leakage class: DIN EN 12266 Class A
