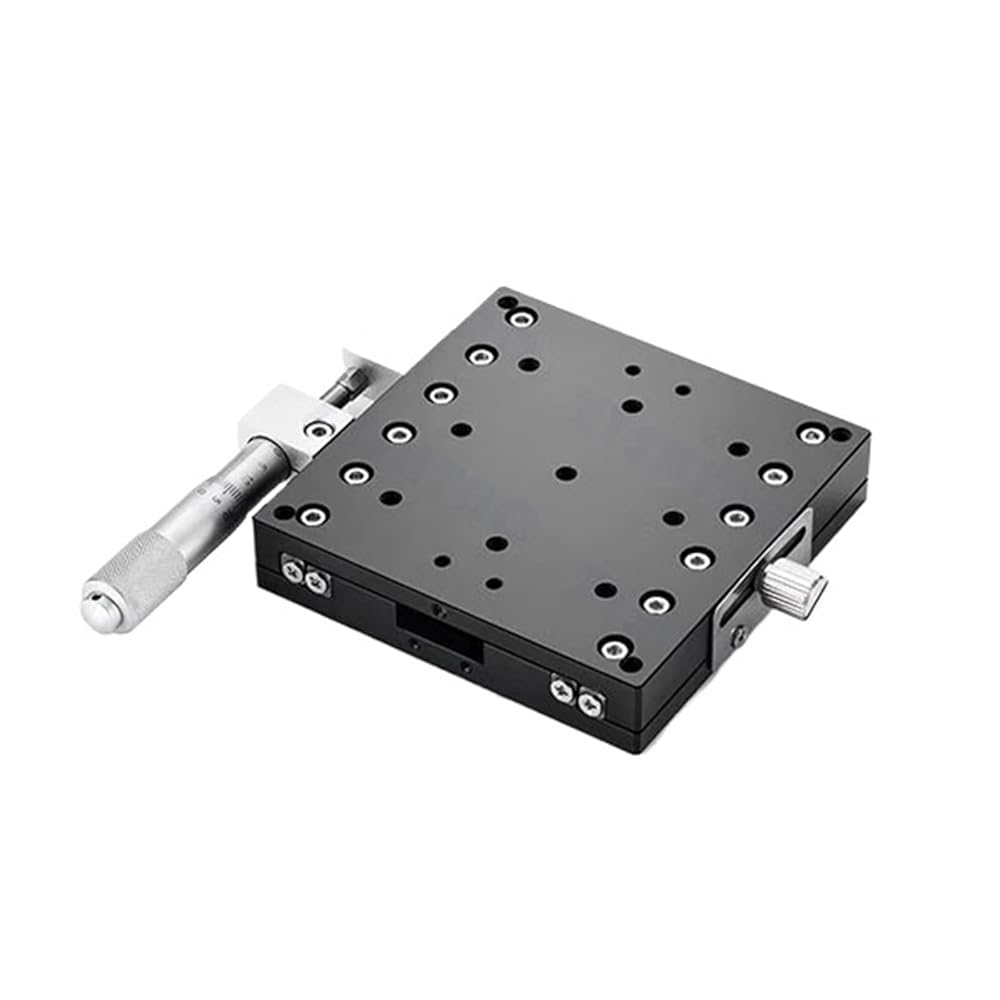

Cross Roller Guides
feature:
1. The use of mobile cross roller guide rails can achieve high precision and stability
2. The main body is made of aluminum alloy, which is light and suitable for building other equipment
scope:
1. Movement direction: X-axis direction
2. Body material: aluminum
3. Drive: Differential head
4. Table size: 90x90mm
5. Table thickness: 18mm
6. Stroke: ± 12.5mm (customizable ± 6.5, please contact us if necessary)
7. Load: 93.1N (9.5kgf)
8.Minimum graduation: 0.01mm
9. Accuracy level: 0.02mm
10. Parallelism: 0.03mm
11.Weight: 0.47kg
