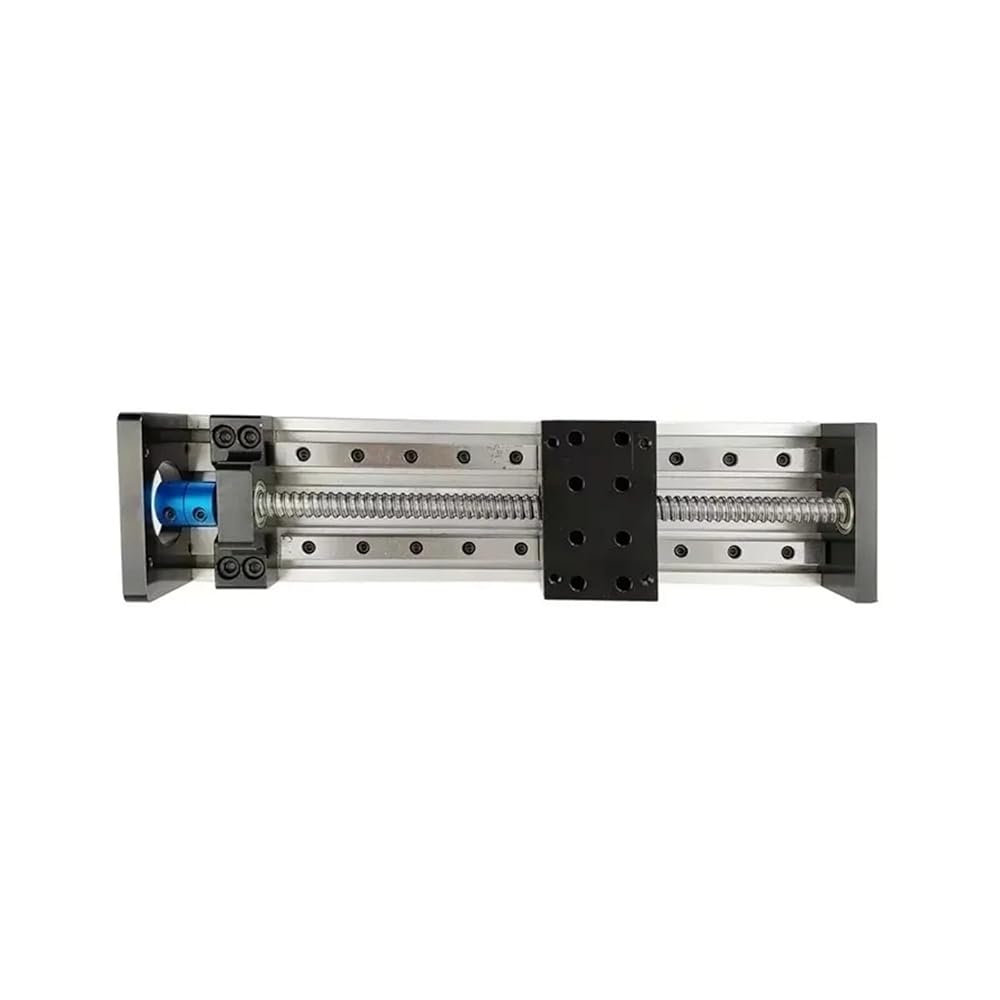

Linear Motion Guide Actuators
Total length:
Effective stroke +110mm (50*80 workbench)
Effective stroke + 170mm (100*80 workbench) Mobile panel size: 50*80mm/80*100mm Guide rail diameter: 12mm
Guide rail type: 2*MGN12R
Slider type: 2*MGN12H (suitable for 50*80mm table);
4*MGN12H (applicable to 80*100mm workbench) horizontal load:
Maximum load-bearing capacity: 50KG (suitable for 50*80mm table);
Maximum 80KG (applicable to 80*100mm workbench) vertical load:
Maximum 20KG (suitable for 50*80mm table);
Maximum 40KG (applicable to 80*100mm workbench) Maximum speed: 500mm/s Ball screw repeatability accuracy: 0.02-0.03mm
Ball screw type: SFU1605/SFU1204/SFU1610
Ball screw accuracy: C7
Repeat positioning accuracy: 0.02mm-0.03
Effective stroke: 100mm-1000mm optional
Slider type: 2*MGN12R
