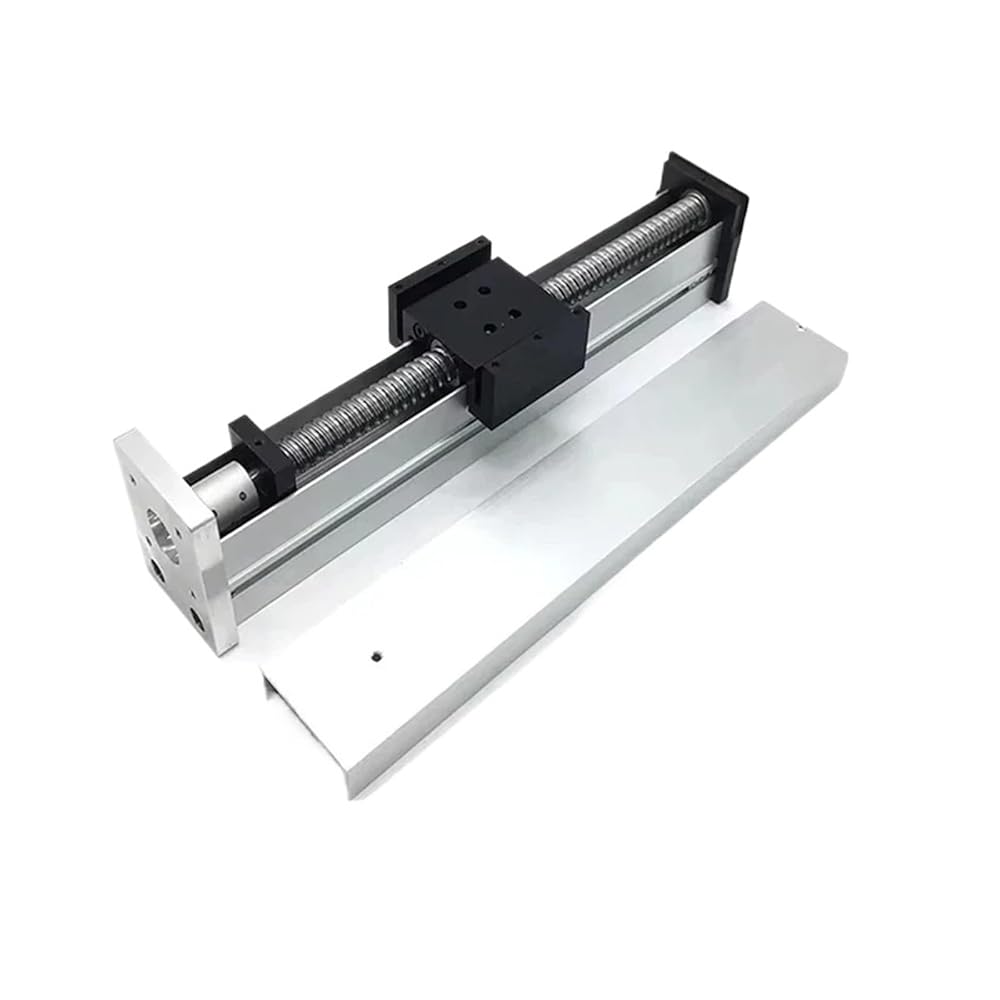

Linear Motion Guide Actuators
Slide table technical parameters:
Model: QMF40
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm for each screw rotation)
Ball screw accuracy: C7
Effective stroke: 100mm-300mm optional
Total length: effective stroke + 119mm
Module width: 52mm
Guide rail diameter: 12mm
Guide rail type: 2*MGN12R
Slider type: 2*MGN12H
Horizontal load-bearing capacity: maximum 40KG
Vertical load-bearing capacity: maximum 20KG
Maximum speed: 100 mm/s
Ball screw repeatability accuracy: 0.03-0.05mm
Support motor bracket: Nema 23 stepper motor;
Bottom plate material: aluminum alloy
