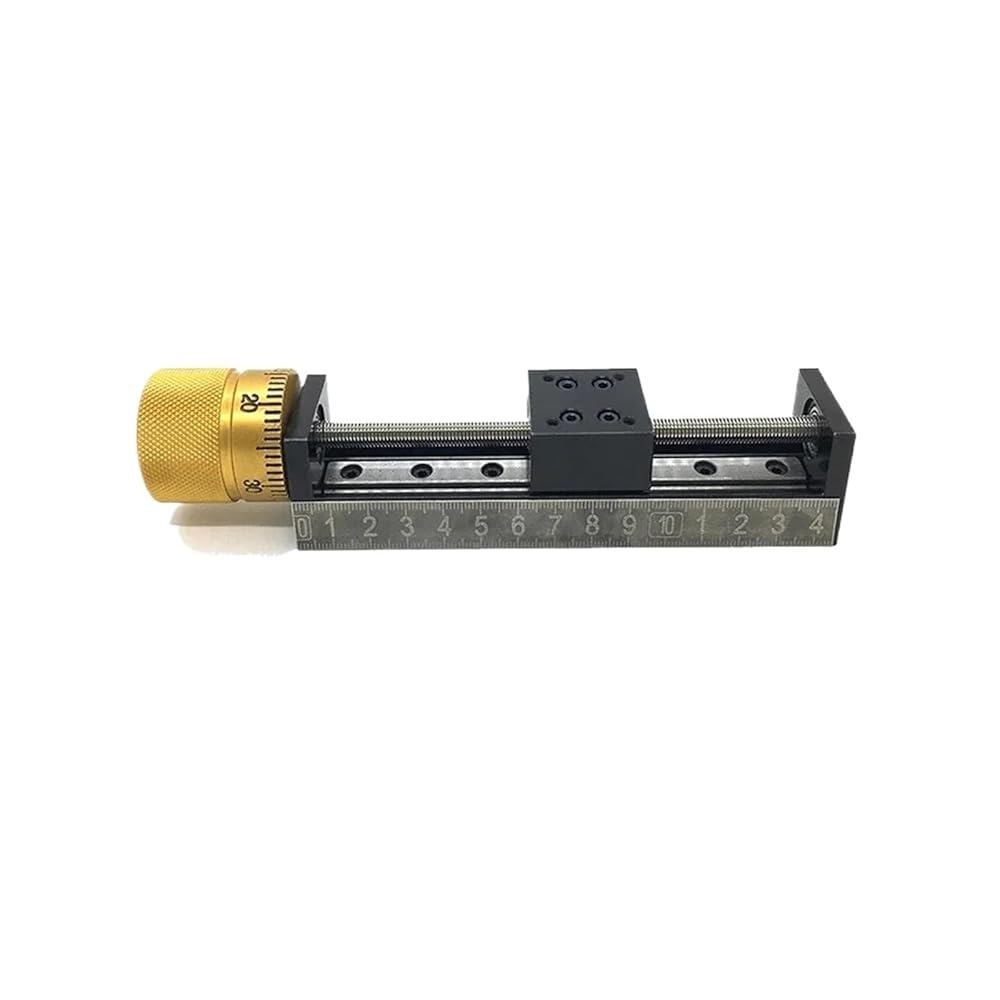

Cross Roller Guides
Horizontal load-bearing capacity: 5KG (maximum)
Vertical load-bearing capacity: 2.5KG (maximum)
Mobile phone panel size: 30mm X 32mm
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width: 8MM
Block: MGN8H
Screw precision: C7
Screw model: T6*2/T6*4/T6*6/T6*12
(6mm diameter, lead spacing 1mm/2mm/4mm/6mm/12mm, please select the lead you need)

Model: M-T06
Rail width or diameter: 12mm
Screw type: Trapezoidal screw (T6)
Pitch: 1mm/2mm/4mm/6mm/12mm
Mobile phone panel size: 30mm X 32mm
Repeat positioning accuracy: 0.02mm-0.03
Rail width: 8MM
Horizontal load: 5KG (maximum)
Vertical load: 2.5KG (maximum)
Block: MGN8H
Stroke: 50MM/100MM/150MM/200MM/250MM/300MM
