منصة دليل خطي منزلق من النوع T مقاس 300 مم برغي شبه منحرف للسفر (درجة 1 مم) in Kuwait

منصة دليل خطي منزلق من النوع T مقاس 300 مم برغي شبه منحرف للسفر (درجة 1 مم)

KWD 64.500
ماركة
UUJHIKXD
وزن
50 g
اللونالملعب 1 ملم
– 1 +

مميزات خاصة

  • Linear Motion Guide Actuators

وصف

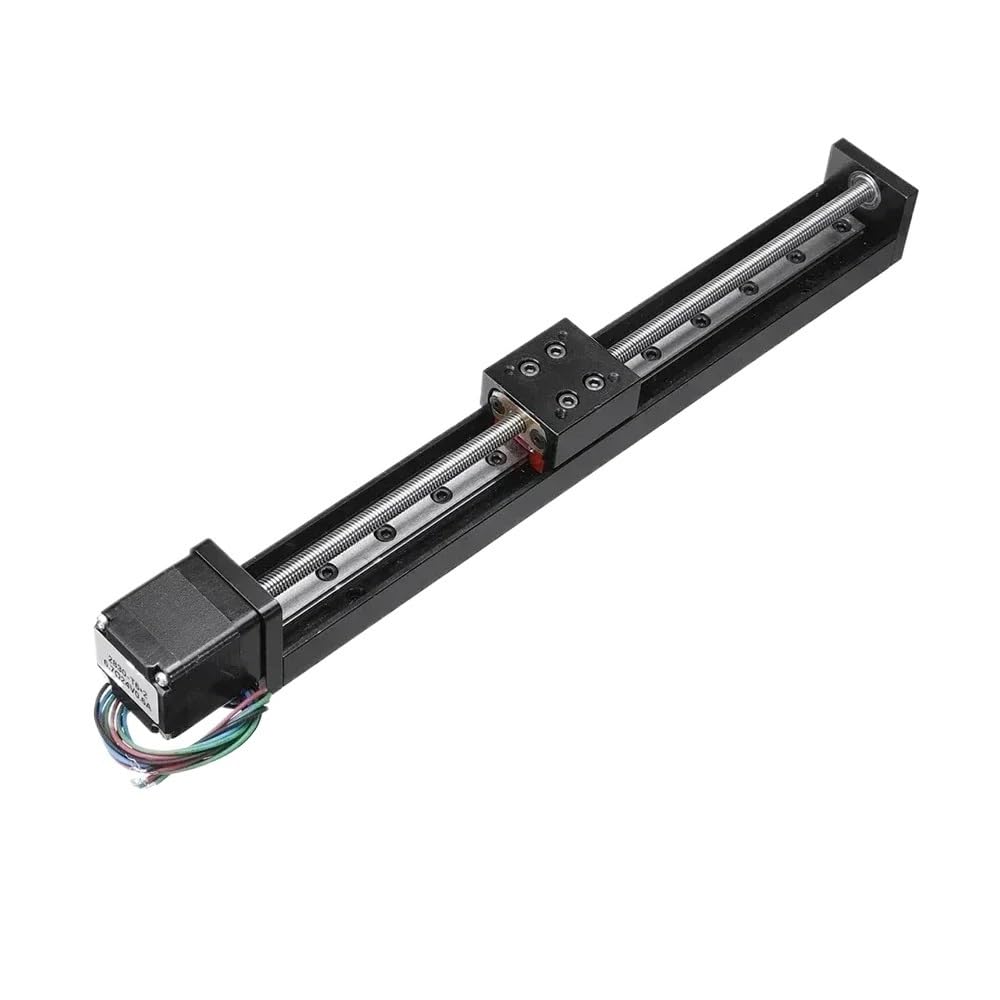

Linear Motion Guide Actuators
Model: T06
Slide rail type: Trapezoidal screw slide Horizontal load: 5KG (Max) Vertical load: 2.5KG (Max)
Effective stroke: 50-300mm
Total length: effective stroke + 75mm Moving panel size: 30mm*32mm Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width: 6MM
Block: MGN8H
Screw precision: C7
Pitch: 1mm/4mm/12mm (1mm pitch means the movable panel moves 1mm when the motor rotates one circle)
PS: 1mm and 2mm pitches have complete self-locking capabilities and can be used on the Z axis within the allowable load range;
The self-locking ability gradually decreases with the pitch of 4mm/6mm/12mm, and the 12mm pitch has almost no self-locking ability
