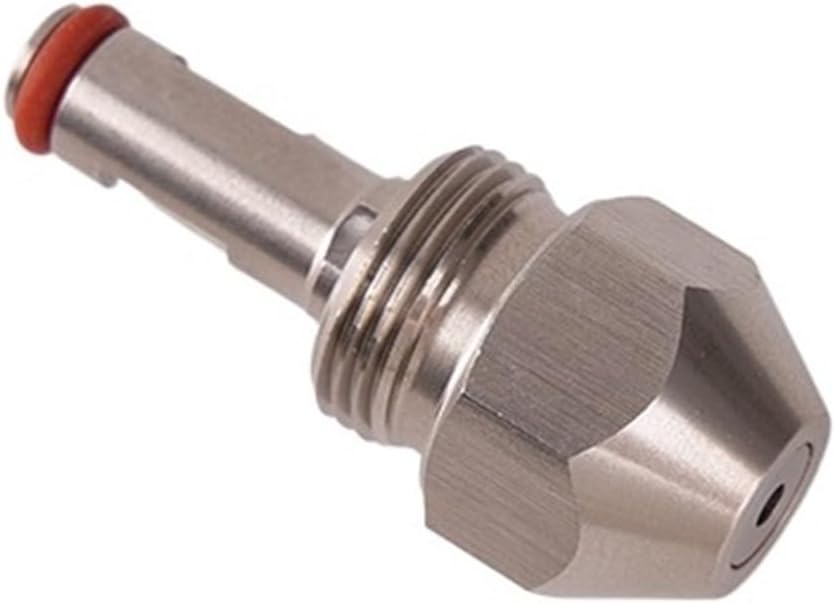

Siphon Waste Oil Burner Nozzle
Bore diameter: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
Nozzle size: 9/16 inch

Product Introduction
Siphon air atomizing nozzle is a low pressure can spray atomization of the best at low pressure air atomizing nozzle.
Widely used in diesel, heavy oil, waste oil, animal and vegetable oils, alcohol-based fuel burner system,
and for kerosene, oil atomization.

Tested water consumption at 3 bar air pressure:
0.5mm diameter, the liquid water flow is 4 L/H;
0.8mm diameter, the liquid water flow is 6 L/H;
1.0mm diameter, the liquid water flow is 8 L/H;
1.5mm diameter, the liquid water flow is 11L/H;
2.0mm diameter, the liquid water flow is 14L/H;
2.5mm diameter, the liquid water flow is 17L/H;
3.0mm diameter, the liquid water flow is 20L/H;
The siphon height is 30cm, and the spray angle is 15-45 degree.
Kindly be noted above data is base on water for reference

1. The use of compressed air to swirl inside the tubes and mix the atomized droplets impact.
2. Can produce tiny micro particle size mist particles at low pressure and low volume conditions.
3. Can control the air flow and pressure to adjust the spray flow, angle and size granularity.
4. Since the fluid passage has a large.
5. In the heavy oil, waste oil burner, oil and other application viscosity of the liquid atomization effect is good.
