Orifice Size: 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Outer Diameter: 18mm
Total Length: 78mm
Oil Inlet : 1/8 inch
Air Inlet : 1/4 inch
Suit for Tube OD 8mm

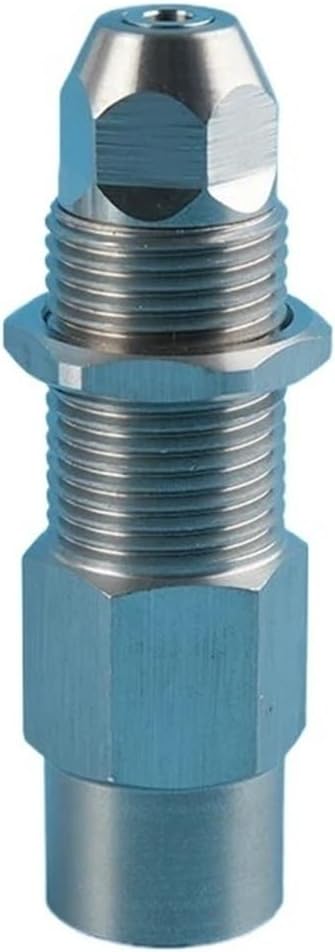

Brass Siphon Air Atomizing Fuel Oil Burner Nozzle is a low pressure can spray atomization at low pressure air atomizing nozzle. Widely used in diesel, heavy oil, waste oil, animal and vegetable oils, alcohol-based fuel burner system, and for kerosene, oil atomization.
In the heavy oil, waste oil burner, oil and other application viscosity of the liquid atomization effect is good.

The working pressure range is 0-10/kg/cm2, different flow capacity needs different filter screen
Flow capacity range is 1.5-1.7 L/h, needs a 45um oil filter screen
Flow capacity range is 1.89-3.78 L/h, needs a 75um oil filter screen
Flow capacity range is 4.76-5.10 L/h, needs a 125um oil filter screen
Flow capacity range is 5.68-41.64 L/h, needs a 140um oil filter screen
Flow capacity over 45.42L/h, no need for oil filter screen

Working pressure is 3 bar:
0.5mm diameter, the liquid water flow is 4 L/H;
0.8mm diameter, the liquid water flow is 6 L/H;
1.0mm diameter, the liquid water flow is 8 L/H;
1.5mm diameter, the liquid water flow is 11L/H;
The siphon height is 30cm, and the spray angle is 15-45 degree.
Kindly be noted above data is base on water for reference
