غطاء غبار المحرك الخطي مغلق بالكامل منزلق SFU1605 منصة CNC Nema23 (200 مم) in Kuwait

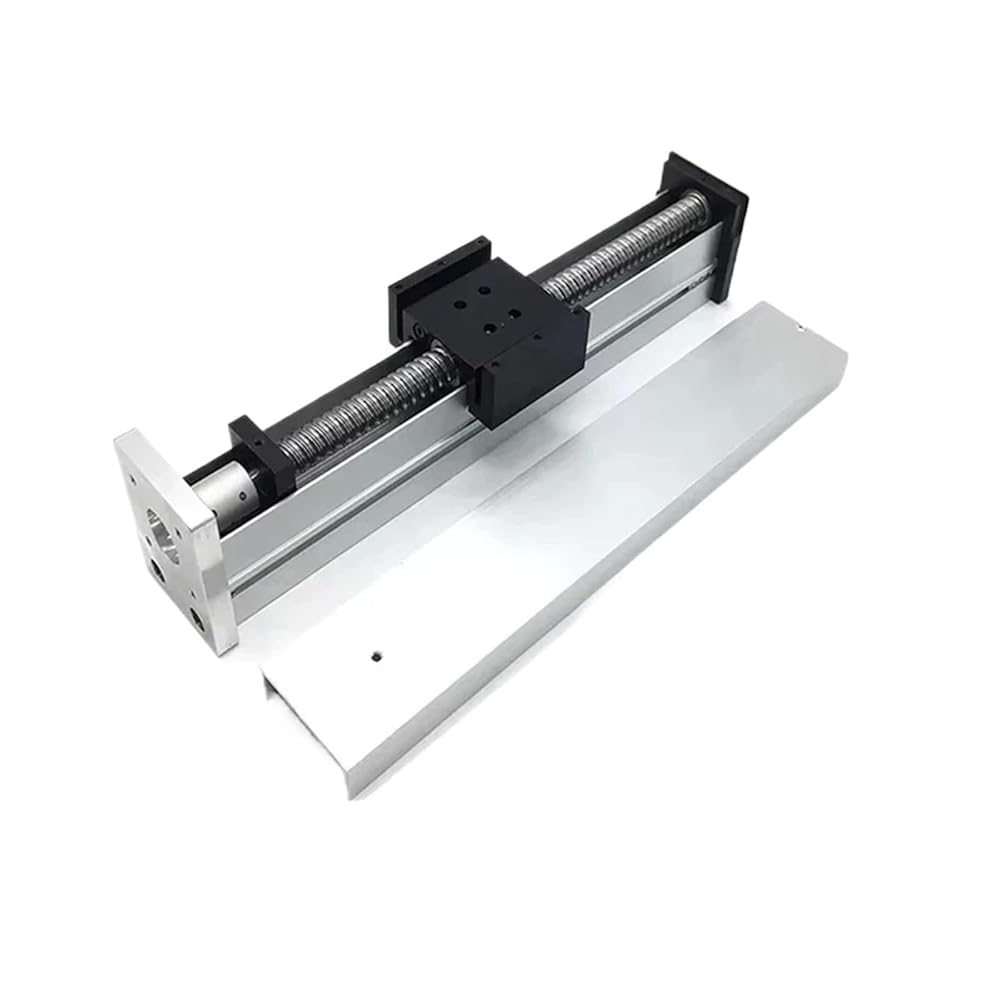

غطاء غبار المحرك الخطي مغلق بالكامل منزلق SFU1605 منصة CNC Nema23 (200 مم)

KWD 136
ماركة
AZVBOEVE
وزن
50 g
اللون200 ملم
– 1 +

مميزات خاصة

  • Cross Roller Guides

وصف

Cross Roller Guides
Slide table technical parameters:
Model: QMF40
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm for each screw rotation)
Ball screw accuracy: C7
Effective stroke: 100mm-300mm optional
Total length: effective stroke + 119mm
Module width: 52mm
Guide rail diameter: 12mm
Guide rail type: 2*MGN12R
Slider type: 2*MGN12H
Horizontal load-bearing capacity: maximum 40KG
Vertical load-bearing capacity: maximum 20KG
Maximum speed: 100 mm/s
Ball screw repeatability accuracy: 0.03-0.05mm
Support motor bracket: Nema 23 stepper motor;
Bottom plate material: aluminum alloy
