Cross Roller Guides

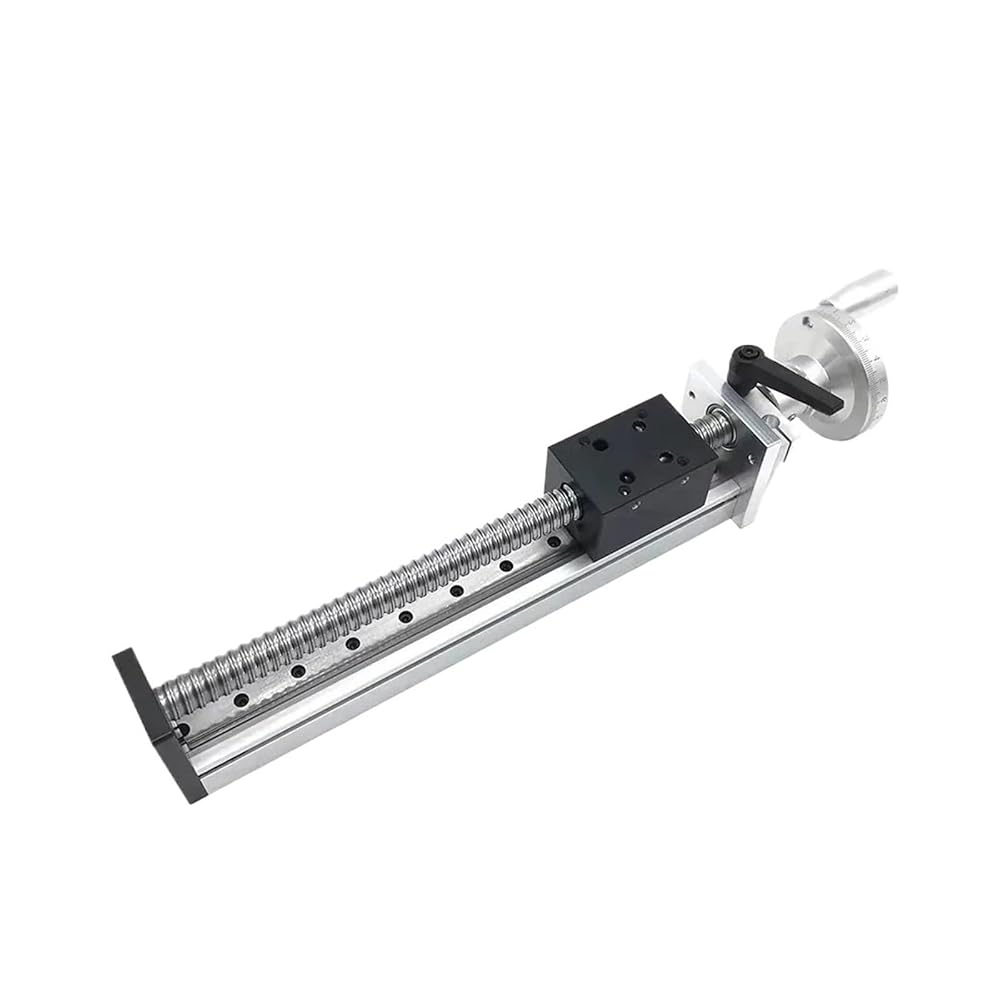

1* sliding table 1* metal scale handwheel
Model: M-GGP5080
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm for each screw rotation)
Ball screw accuracy: C7
Effective stroke: 100mm-300mm optional
Total length: effective stroke + 70mm
Mobile phone panel size: 50*80mm
Light guide type: 2*12mm optical axis rod
Horizontal load-bearing capacity: 40KG (maximum)
Vertical load-bearing capacity: 20KG (maximum)
Maximum speed: 100 mm/s
Ball screw repeatability accuracy: 0.03-0.05mm
Material: industrial aluminum profile
Model: M-SXG5080
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm for each screw rotation)
Ball screw accuracy: C7
Effective stroke: 100mm-300mm optional
Total length: effective stroke + 85mm
Mobile phone panel size: 50*80mm
Guide rail diameter: 12mm
Guide rail type: 2*MGN12R
Slider type: 2*MGN12H
Horizontal load-bearing capacity: maximum 60KG
Vertical load-bearing capacity: maximum 30KG
Maximum speed: 500mm/s
Ball screw repeatability: 0.02-0.03mm
Ball screw and linear guide materials: carbon steel and bearing steel
Bottom plate material: aluminum alloy
Model: M-DXG6042
Ball screw model: SFU1605 (Note: Screw diameter 16mm, pitch 5mm, one screw rotation, the moving panel moves 5mm)
Ball screw accuracy: C7
Effective stroke: 100mm-300mm optional
Total length of slider: effective stroke + 80mm
Mobile phone panel size: 60mm*42mm
Guide rail diameter: 12mm
Rail type: MGW12R
Slider Type: MGW12C
Horizontal load-bearing capacity: 50KG (maximum)
Vertical load: 25KG (maximum) Maximum speed: 500mm/s
Ball screw repeatability: 0.02-0.03mm
Material: industrial aluminum profile
