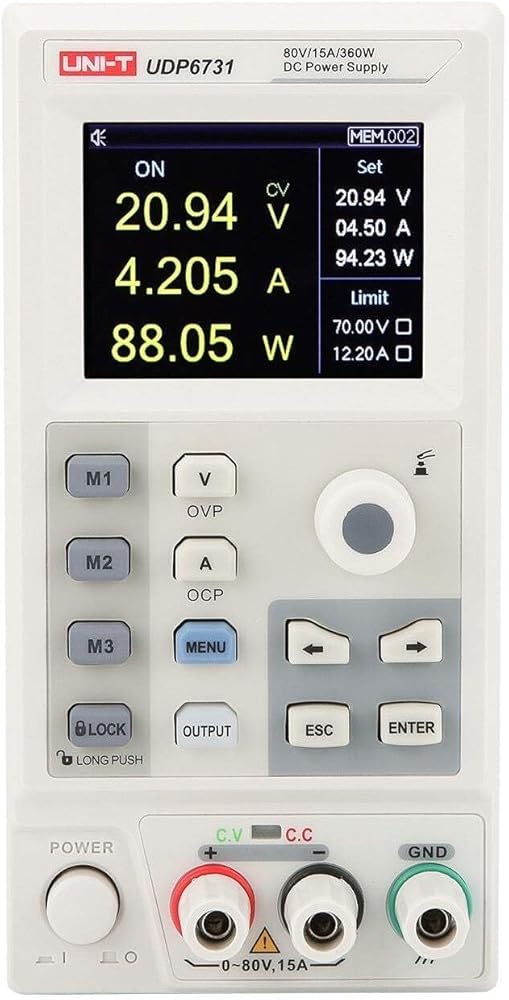

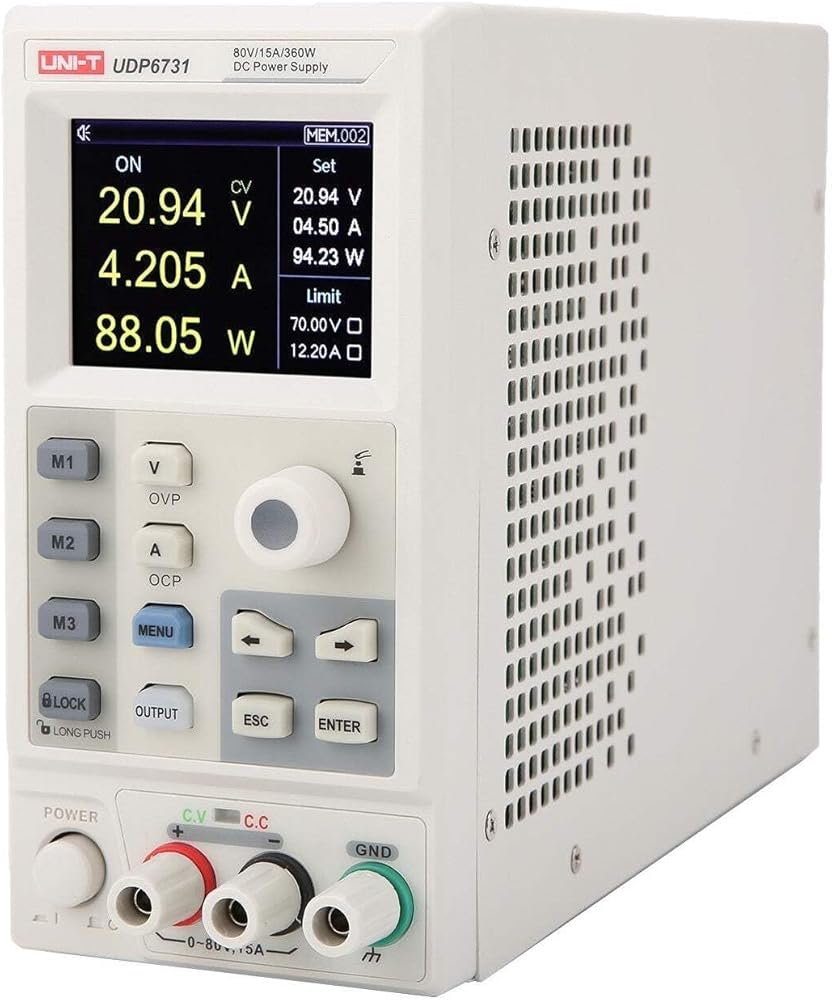

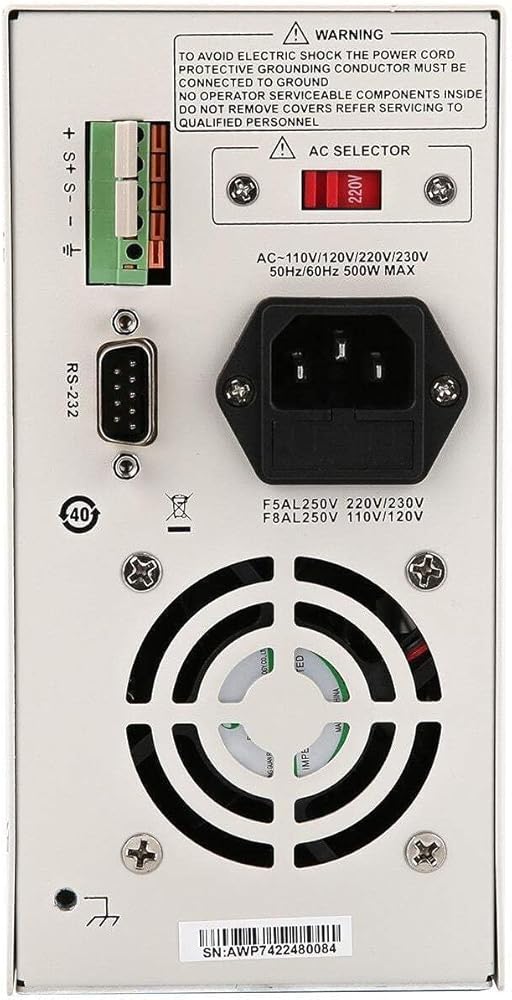

UNI-T UDP6731 DC Power Supply with 360 Watts/80 Volts/15 Amps/1 ChannelFully digital controlFull scale high resolution: 10 mV/1mALow ripple and noiseRemote compensation Switching DC Power Supply (360w/80V/15A/1Ch) The UDP6700-series DC power supplies have a compact form factor and are available in multiple voltage, current, and power outputs. They support RS232 communication via a rear connector and can be remotely controlled using the SCPI (standard commands for programmable instruments) protocol. List and delayer functions are used to set up testing programs specifying current and voltage parameters, their duration, and a power-down command. Remote compensation maintains accurate testing by avoiding voltage drop on the load line. Multiple Versions Available The UNI-T UDP6700-series DC power supplies are available in versions with differing peak output parameters. Please see the table below for a comparison.Model Voltage Current PowerUDP6720 0-60V 0-5A 100WUDP6721 0-60V 0-8A 180WUDP6730 0-40V 0-30A 360WUDP6731 0-80V 0-15A 360W ? Remote Compensation The UDP6700 series provides remote compensation terminals on the rear of the power supply. Connect S+ and S- to the load. The UDP6700 will recognize the load voltage and compensate as appropriate. Remote Control Use computer software and an RS232 connection to control the UDP6700 series via the SCPI (standard commands for programmable instruments) protocol. Statistics can be monitored to explore changing trends during use.
