Cross Roller Guides
packing list:

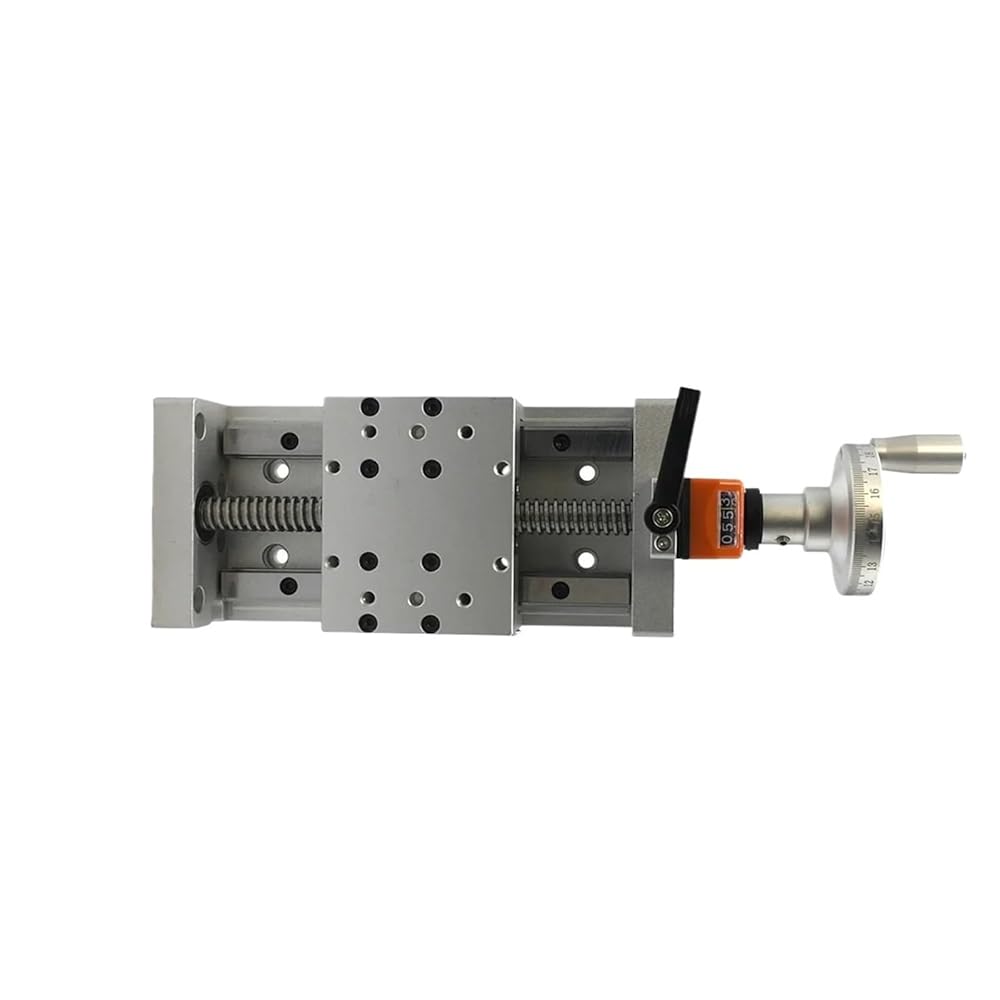

1 X sliding stage with digital display
1 X Metal Handwheel
Screw model: T1604 (screw diameter 16mm, pitch 4mm, screw rotation one circle, panel movement 4mm)
Screw material: 304 stainless steel
Effective stroke: 50mm-1000mm Optional digital display: horizontal digital display (suitable for reading when the slide is installed horizontally) / vertical digital display (suitable for reading when the slide is installed vertically) Mobile panel size: 80 *100mm Guide rail diameter: 15mm Guide rail type: EGR15 *2 Slider type: EGH15CA *2 Horizontal load: Maximum 120 KG (load that the slide can withstand when installed horizontally) Vertical load: Maximum 50 KG (load that the slide can withstand when installed vertically) Ball screw repeatability: ±0.02mm Material: Industrial aluminum profile

Model: M-SPSX/CZSX-NS100S
Rail width or diameter: 15MM
Origin: Mainland China
Certification: CE
Effective stroke: 50mm-1000mm optional
Slider type: EGH15CA*2
Guide rail type: EGR15*2
Horizontal load: 120KG (maximum)
Vertical load: 50KG (maximum)
Slide rail material: industrial aluminum profile
Rail width: 15MM
Screw: Trapezoidal screw T1604
Screw diameter: 16mm
Total stroke: effective stroke + 225mm
Screw material: 304 stainless steel
Pitch: 4mm
Level: H
