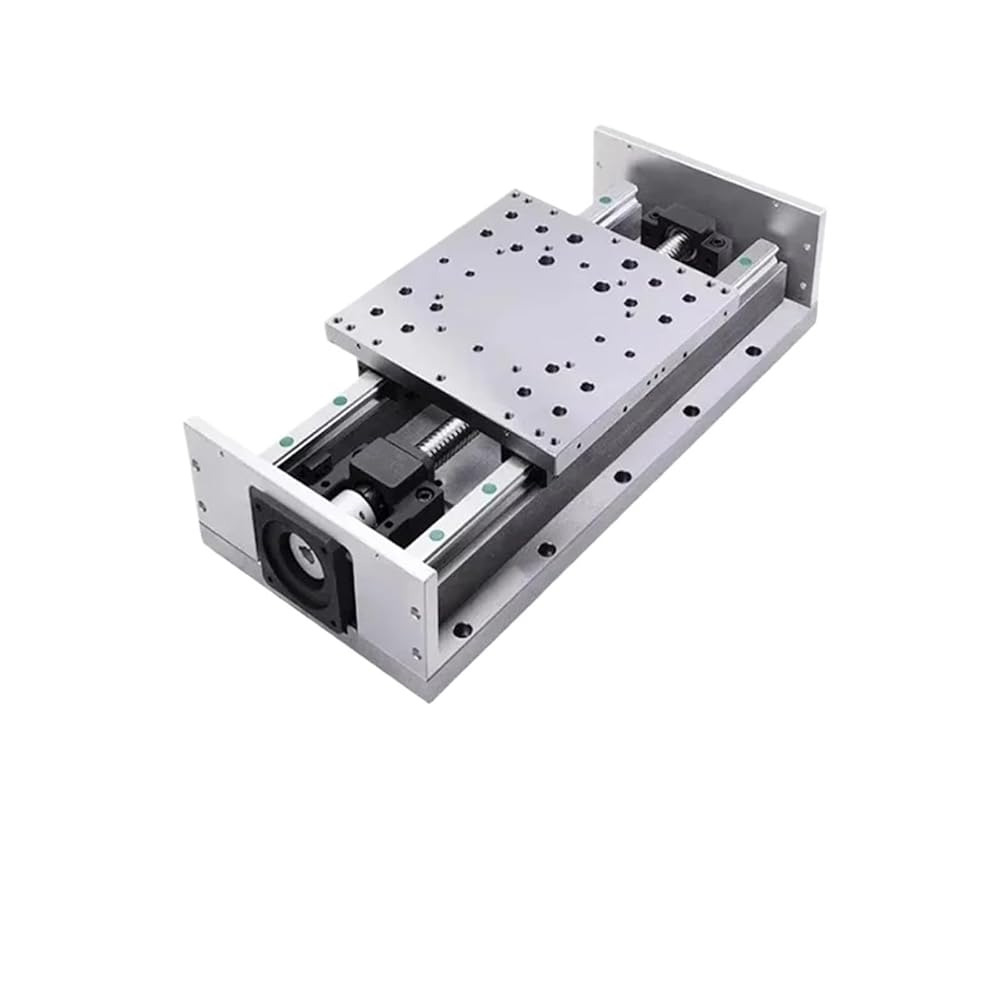

Linear Motion Guide Actuators
Model: FG180 Material: 45# steel Ball screw model: SFS2005 (screw diameter 20mm, pitch 5mm, panel moves 5mm per screw rotation) / SFS2010 / SFS2020 Ball screw accuracy: C7
Mobile panel/table size: 180mm*180mm Guide rail type: 2*HGR20 Guide rail slider: 4*HGH20CA Horizontal load: 300KG (max) Vertical load: 40KG (max) Motor bracket type:
Stepper motor: 57mm/86mm optional
Servo motor applicable: 60mm/80mm optional Effective stroke: 100mm-600mm optional (600mm-1000mm can be customized, if necessary, please contact us!)
Maximum speed: 800mm/s Ball screw repeatability: 0.02mm
Model: FG180-2005-100
Rail width or diameter: 20mm
Origin: Mainland China
Certification: CE
Ball screw type: SFS2005/SFS2010/SFS2020
Ball screw accuracy: C7
Effective stroke: 100mm-600mm optional
Slide rail material: 45# steel plate
Guide rail: HGR20*2
Slider: HGH20CA*4
Repeat positioning accuracy: 0.02mm
Sliding table top: 180mm * 180mm
