Automatic Clamping Design: Automatic shaker can clamp adjusts pressure intelligently based on can size (0.5L–20L), securing containers firmly during mixing to minimize color difference and spillage.

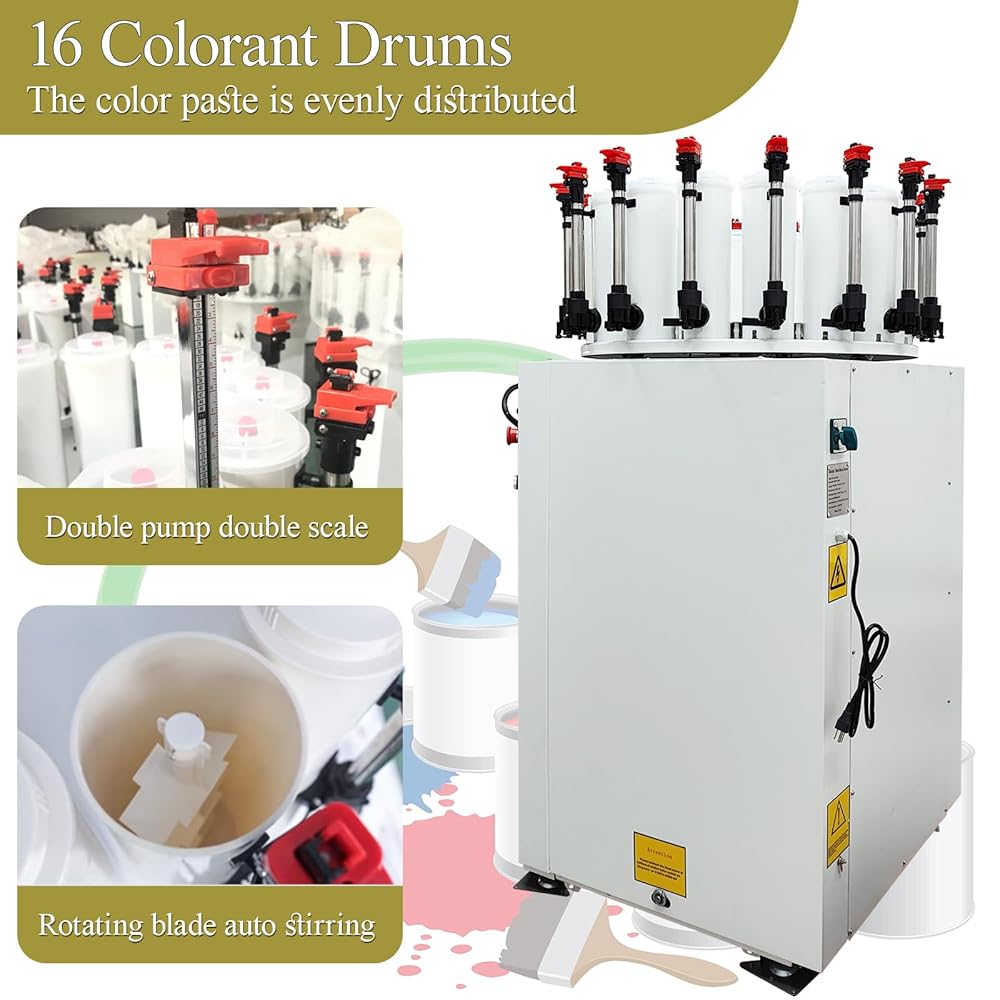

Double Pump Scales: The color mixing machine use with 16pcs 2L rotary mixing drums, and the structure of dual pump and dual scale locking ensures accuracy measurement and the colorant stability.

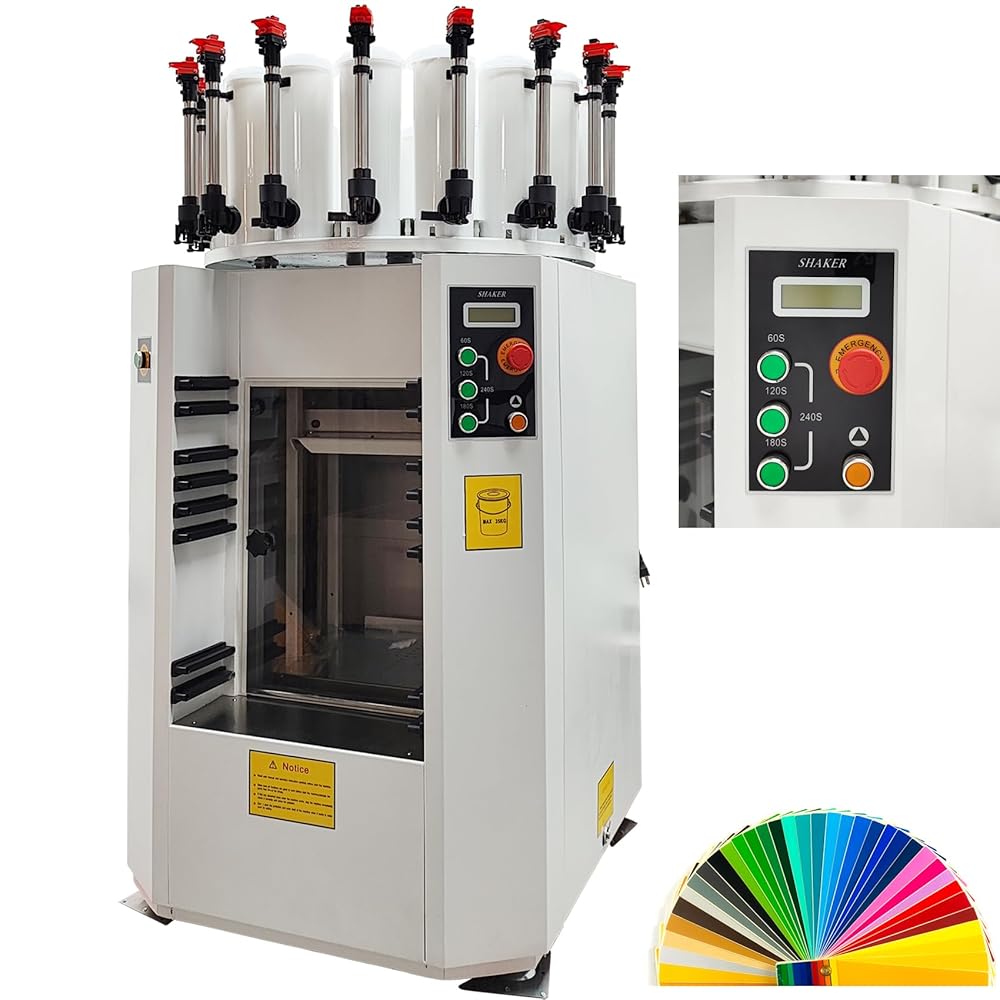

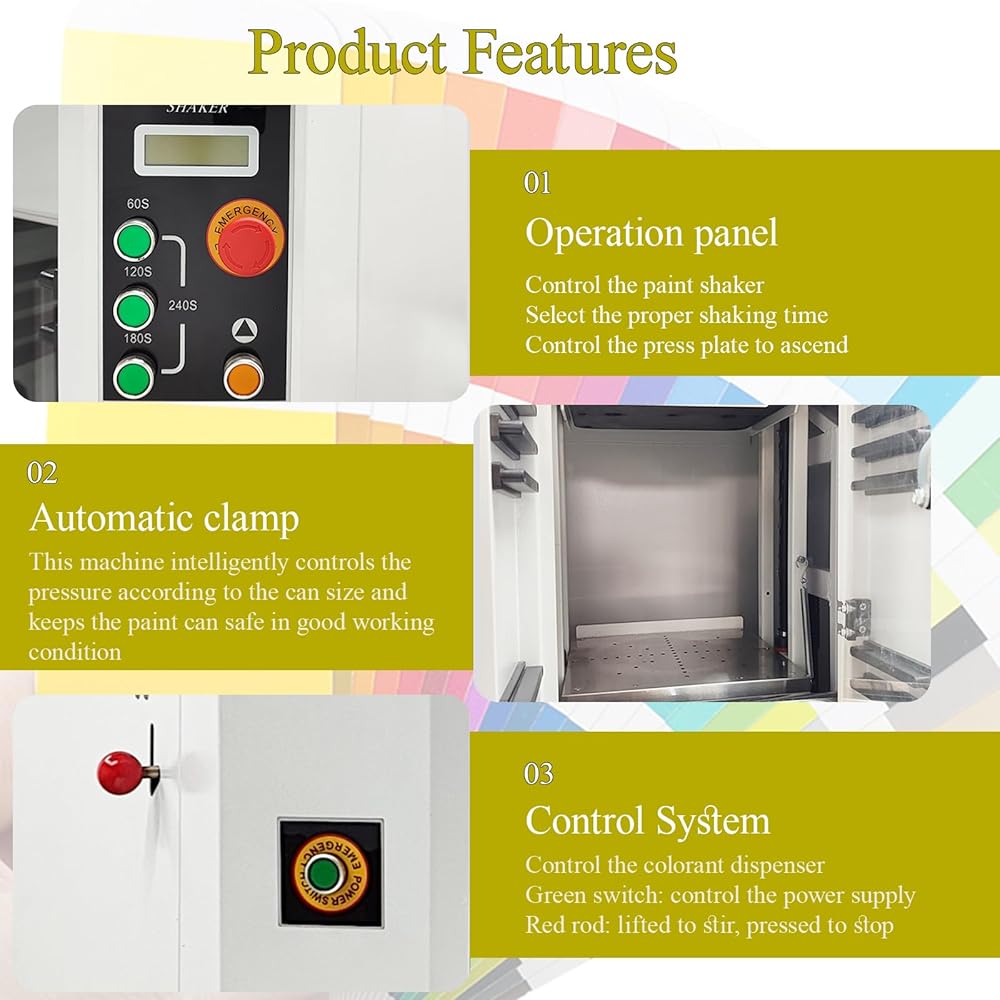

User-Friendly Automated Control: Adjustable timer with auto-stop function and one-touch controls for effortless operation. The ergonomic panel includes an emergency stop button, it can be pressed in emergency, and the rise switch can be pressed when the press plate cannot automatically ascend in the operating process, thereby facilitating smooth operation.
Advanced Safety & Protection System: Paint shaker mixer and color dispensing station machine is equipped with high-voltage protection (H1 auto-shutdown), safety locking mechanism, and real-time current detection to prevent overloads, short circuits, or accidental door openings during operation. The transparent door cuts power instantly when opened, ensuring operator and machine safety.
Versatility Application: The paint shaking and color mixing integrated machine can achieve effective and uniform mixing of various liquid materials and smooth mixing of colorants in a short period of time, can be used for shaking various kinds of latex paint and oil paint and mixing different colorants. Perfect for coatings, packaging, manufacturing, and the production industry.
وصف

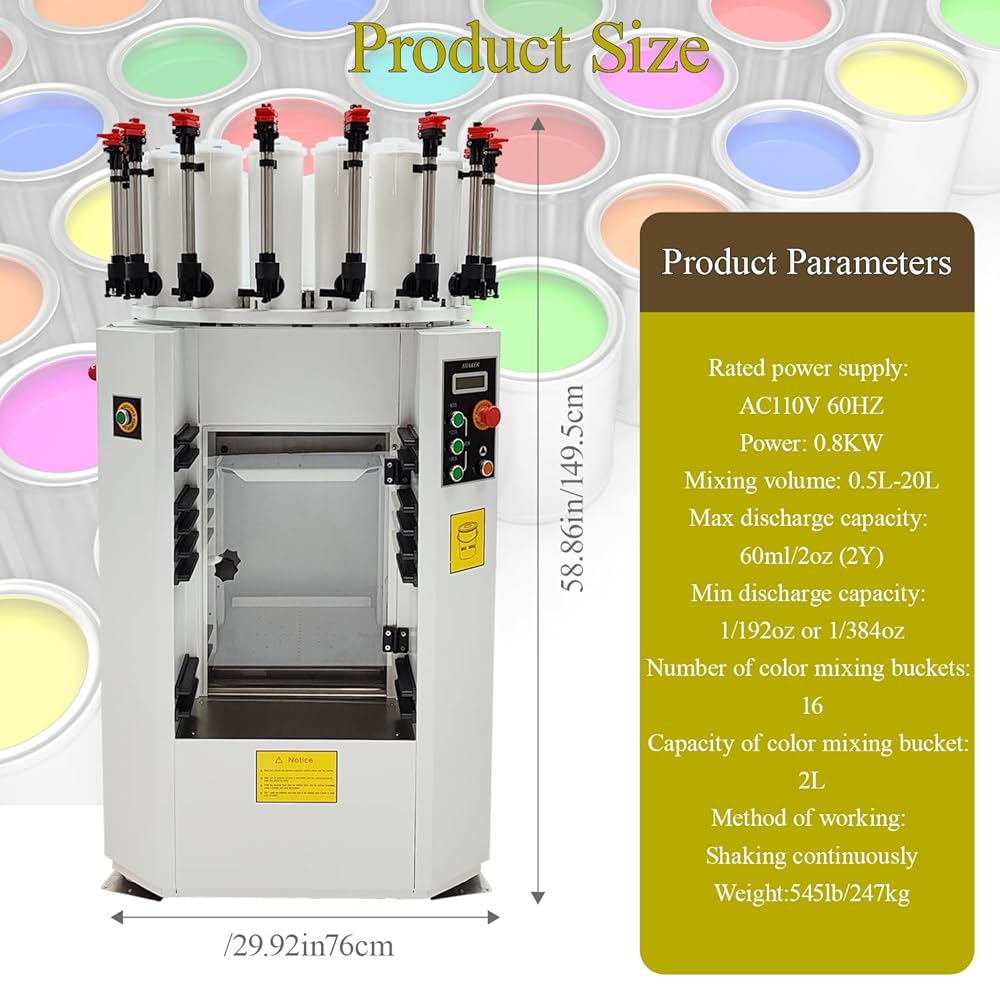

Product Parameters
Rated power supply: AC110V 60HZ
Power: 0.8KW
Mixing volume: 0.5L-20L
Maximum discharge capacity: 60ml/2oz (2Y)
Minimum discharge capacity: 1/192oz or 1/384oz
Number of color mixing buckets: 16
Capacity of color mixing bucket: 2L
Method of working: shaking continuously
Weight: 247KG
Notice

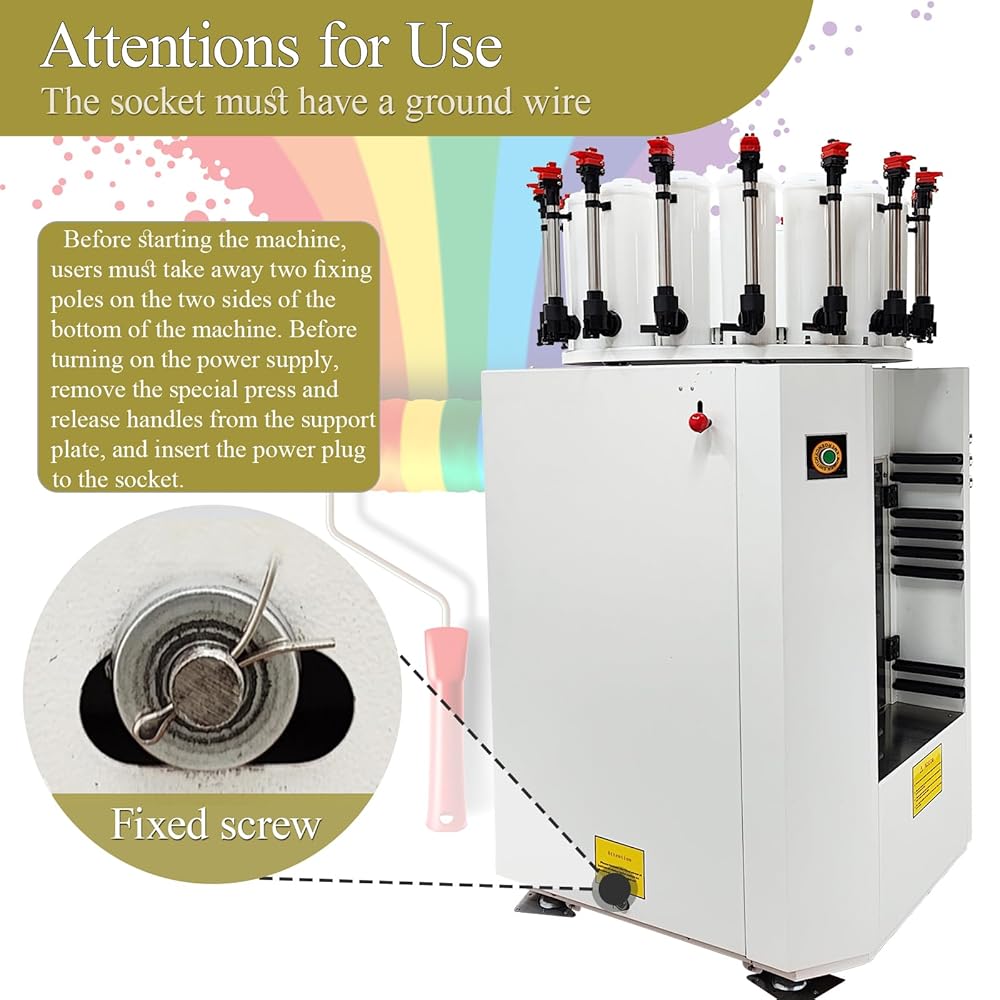

1. Before starting the machine, users must take away two fixing poles on the two sides of the bottom of the machine. Before turning on the power supply, remove the special press and release handles from the support plate, and insert the power plug to the socket. The socket must have a ground wire.
2. The basic unit of the paint dispensing system is represented as ‘Y' (except for metric and hybrid systems), and the volume of this unit (approx. One fluid ounce).
3. The ‘Y' unit is usually divided into 32, 48 or 64 sub-units. The basic unit of the metric dispenser is one milliliter.
4.The accuracy of the machine is 1/384Y, 1Y= 29.574ml (American system).
Item Included (154075):

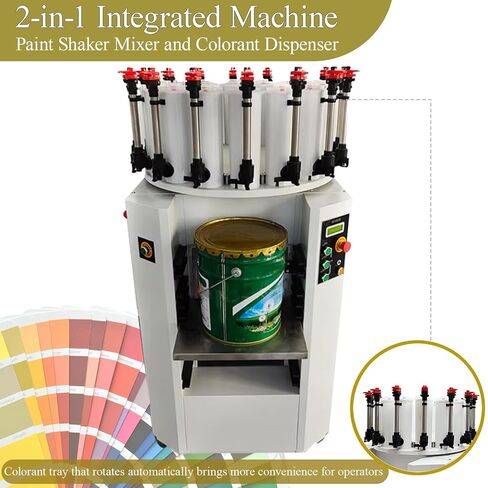

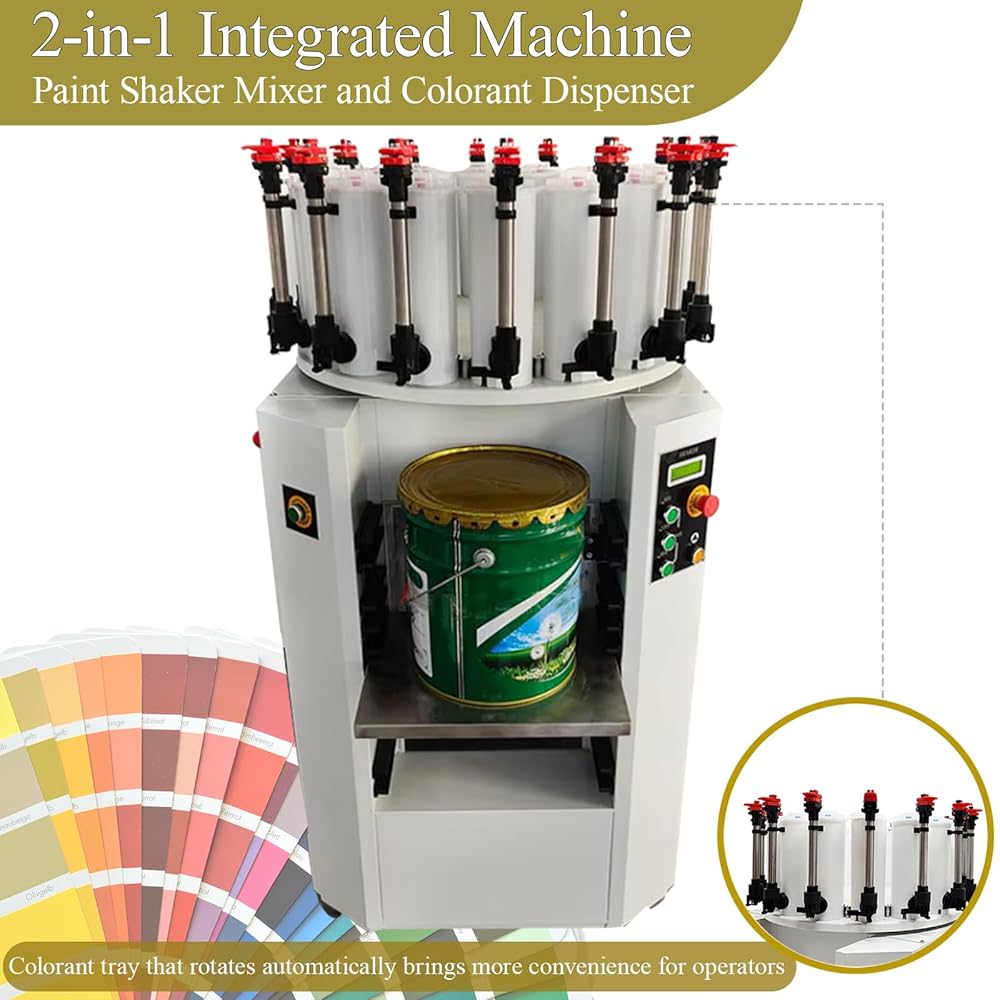

1 x Automatic Paint Shaker Mixer and Colorant Dispenser Integrated Machine 110V
