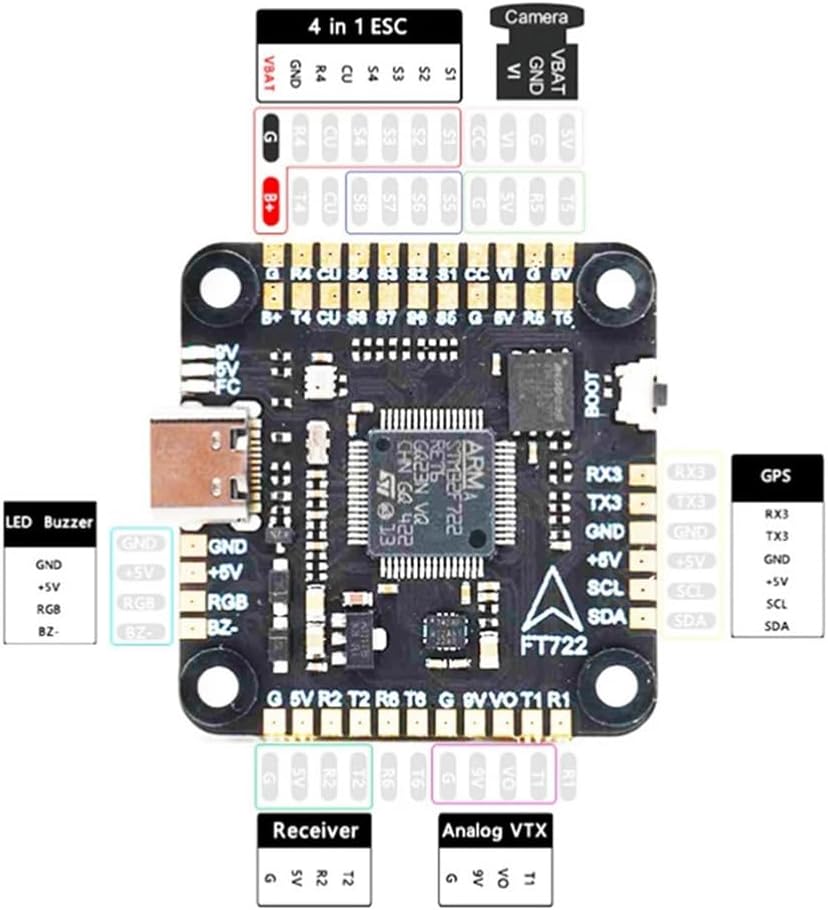

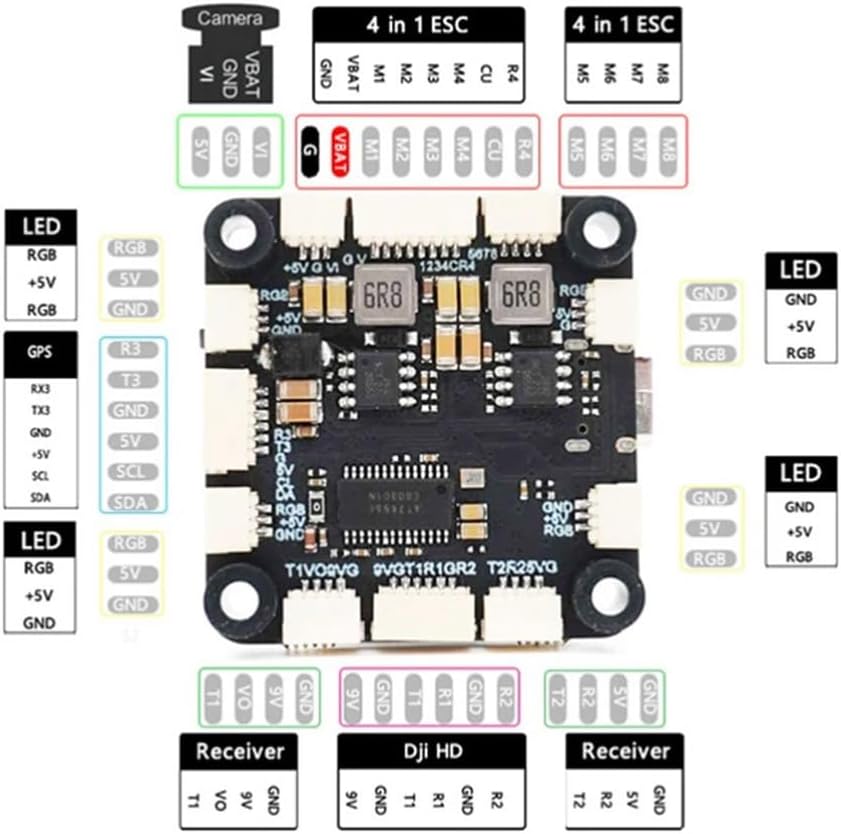

Yaregelun Model: F722 Flight Controller
MCU:STM32F722RET6
IMU:-42688
OSD: AT7456E
Baro:SPL06-001
: 16MB
Input voltage: 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
Receiver: ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
Buzzer: 5V
ESCsignal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor:YES
DFU button: YES
Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX
Mounting Hole:30.5x30.5x4MM

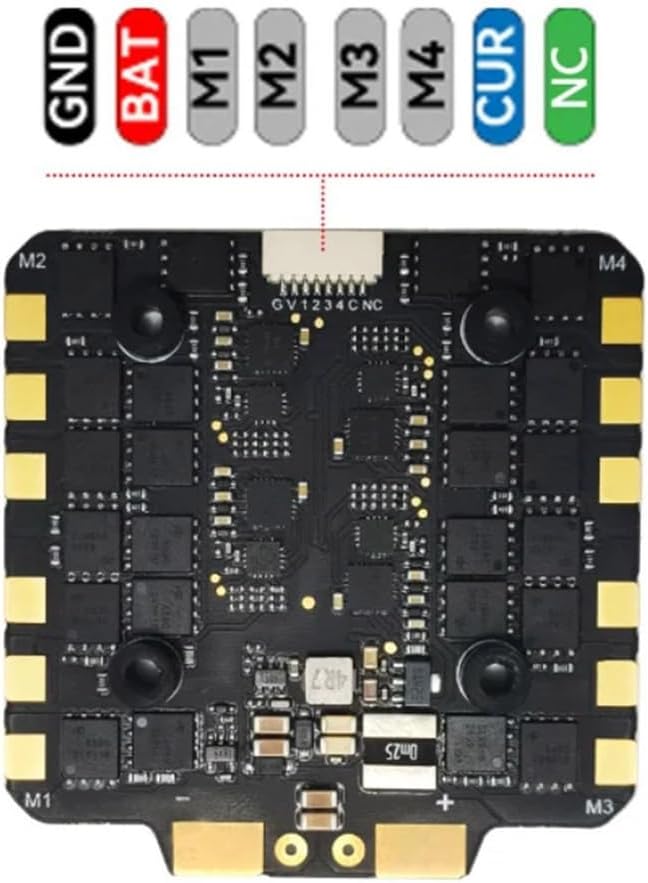

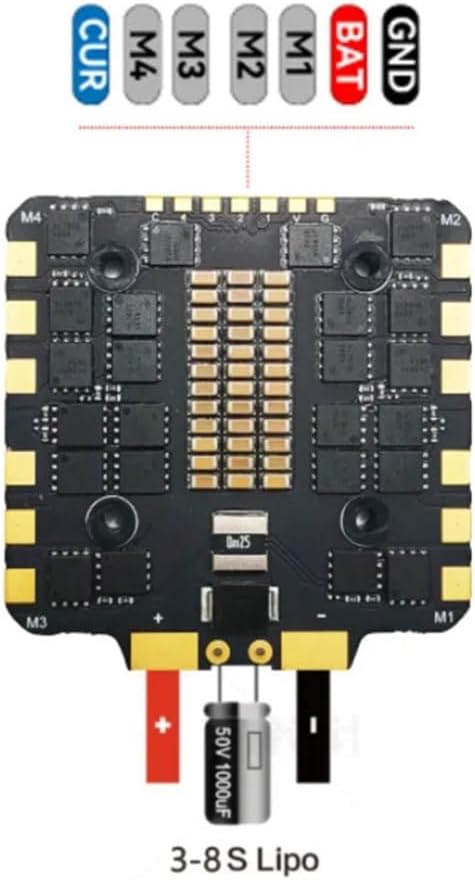

Item Type: BLS 80A 30.5x30.5 4-in-1 ESC
MCU: EFM8BB21F16G
MOSFET: High performance MOSFET
Power Input: 3-6S LiPo
Continuous Current: 80 * 4
Burst Current: 90A()
ESC Telemetry :NO
Current Sensor Scale:200
ESC Protocol :DSHOT300/600
Firmware: Q_H_40_24_v0.19.2
Mounting :30.5 x 30.5mm( 4mm hole diameter)
Colour: Black
Material: PCB

Package Contents:

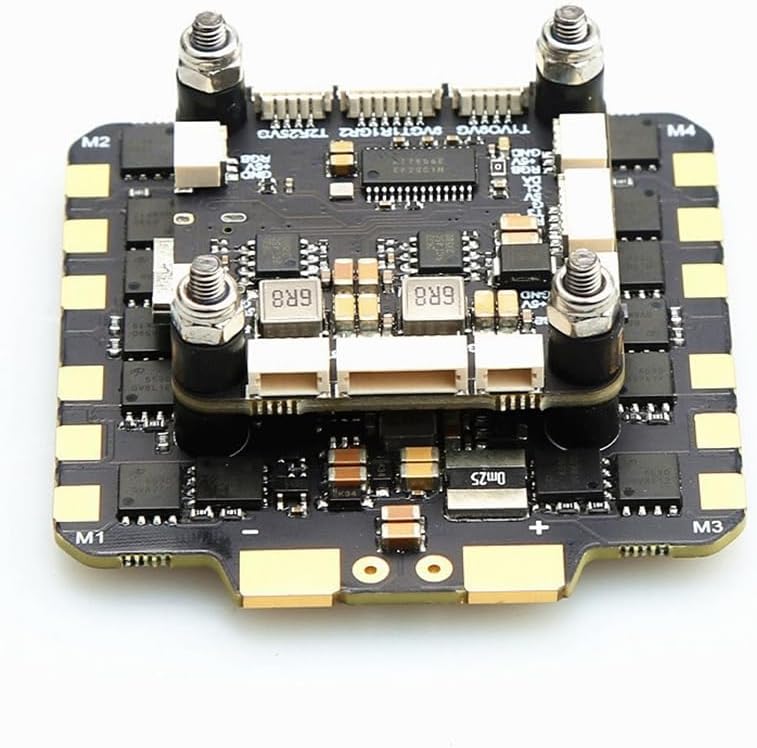

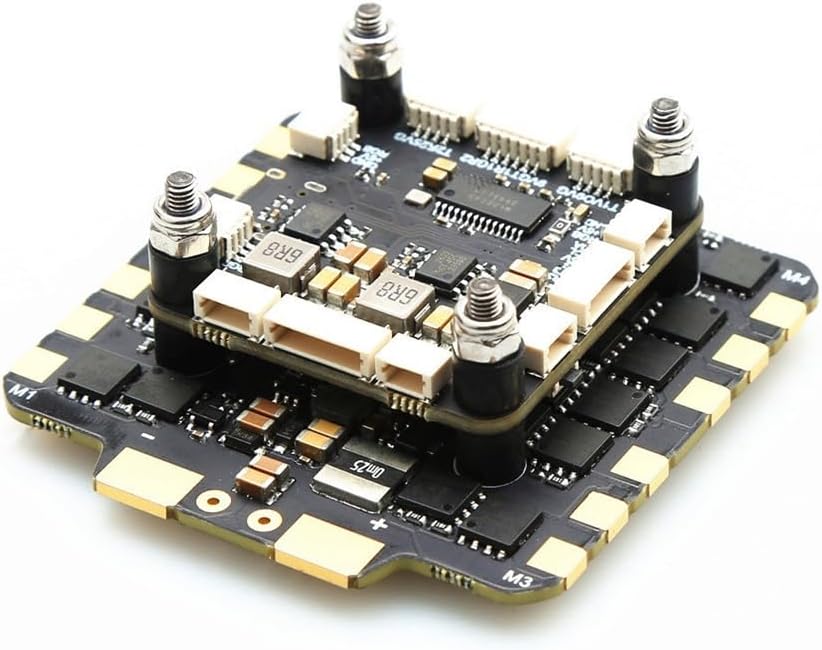

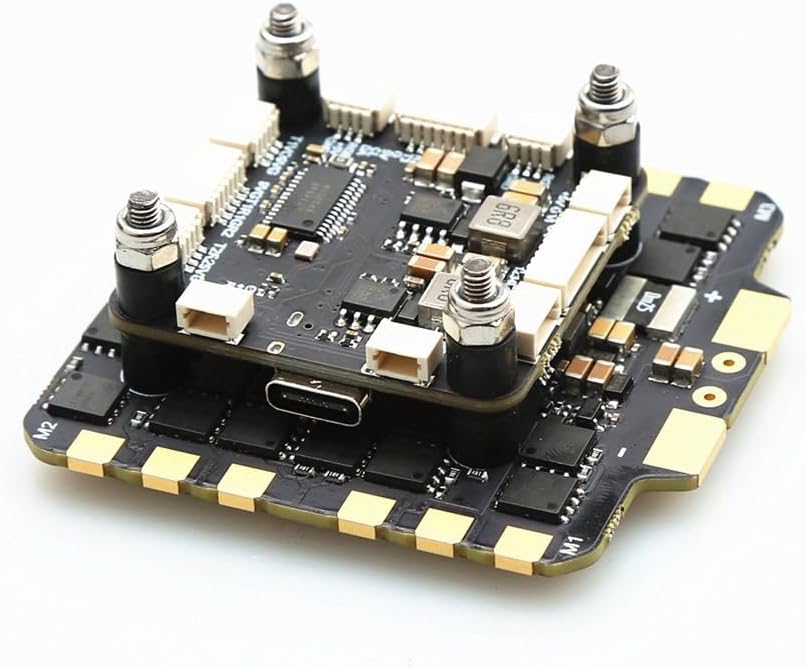

1 * F722 Stack Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
