High Quality: The tension test stand is made of quality iron with a baking paint surface, high strength, and hardness, which is sturdy and durable.
Adjustable Clamps: With 2 detachable clamps whose max clamping opening is about 0.79 inch, it boasts a wide testing range, allowing you to test the force of different items including buckles, tapes, ropes, fishing lines, etc.
Excellent Tensile Strength: Its premium material and stable construction provide it with a strong tensile strength (500N), which can meet various testing needs and you can use it confidently.
Easy to Operate: The spiral rocking handle conforms to the ergonomic design, and the plastic-wrapped design provides a comfortable grip, making the operation simple.
Applications: The tensile test stands are widely used in the rubber and plastics, light industry, textiles, architectural doors and windows, composite materials, wire and cable industries, and for tensile testing.

وصف

This force gauge stand is a professional tensile testing equipment with a maximum tensile strength of up to 500N. It adopts a horizontal structure, making it easy for you to complete tensile testing in a small space.With complete accessories, you just need to install a digital push-pull force gauge (not included) and then start using it.

Details

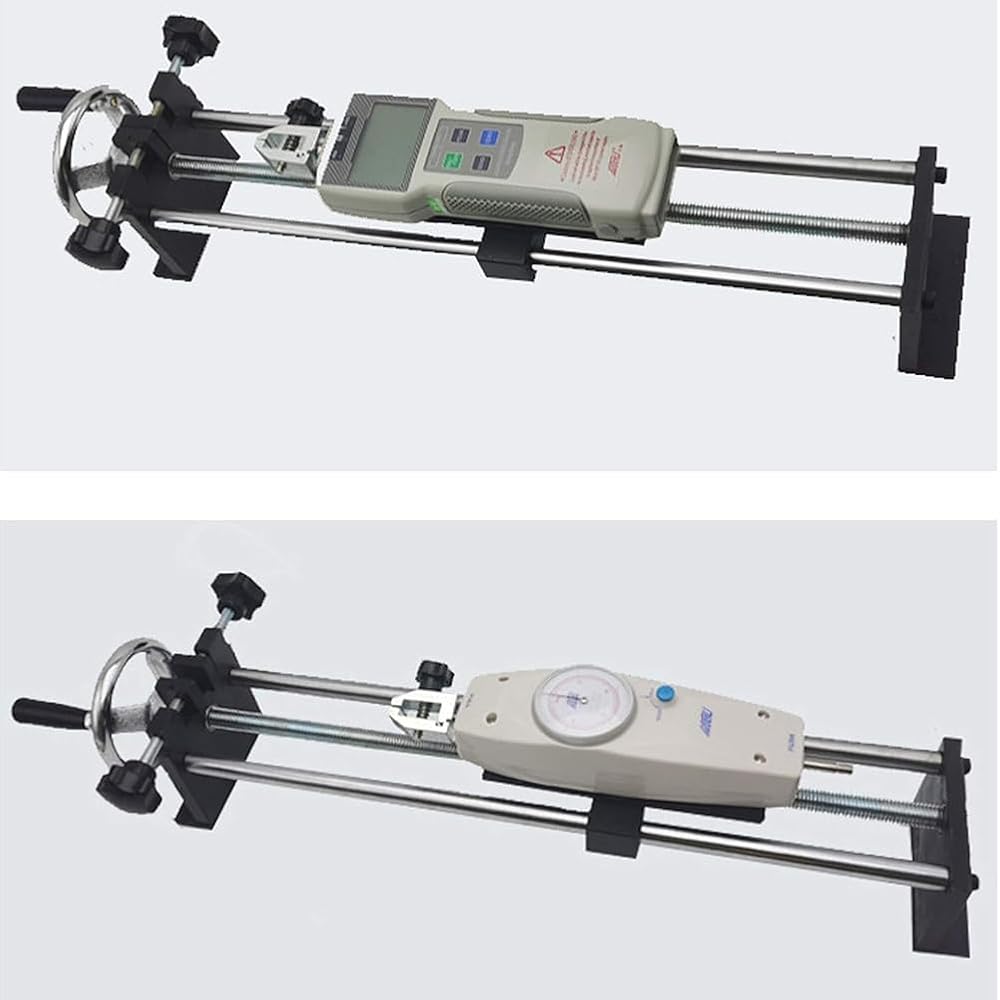

Pre-drilled Holes: They allow you to easily install pointer push-pull force gauges and digital display push-pull force gauges (both not included) on the product, ensuring accurate measurement.

Adjustable Clamps: With two detachable clamps whose maximum clamping opening is about 0.79in, it boasts a wide testing range.

Specifications

Color: Black

Operation: Hand-wheel Operated

Material: Iron, Plastic

Style: Modern

Surface Treatment: Baking Paint

Mount Type: Free Standing

Assembly Required: Yes

Maximum Tensile Strength: 500N/50kg

Maximum Clamping Opening: 20mm/0.79inch

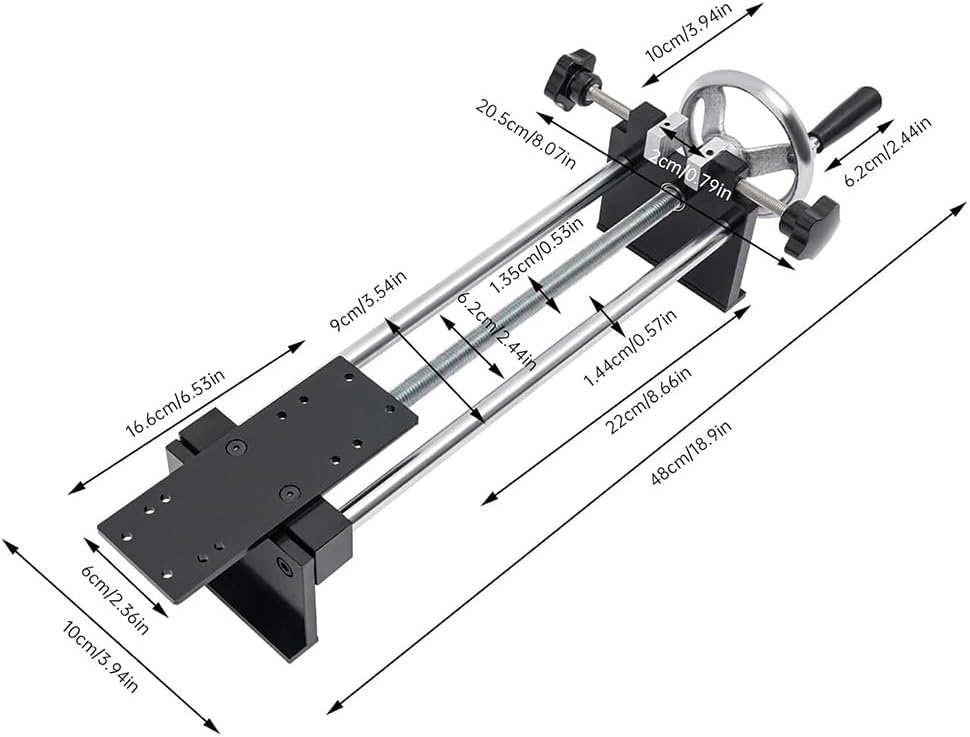

Meter Installation Plate Size(L*W): 16.6*6cm/6.53*2.36inch

Sliding Rail Width(Inner): 6.2cm/2.44inch

Sliding Rail Width(External): 9cm/3.54inch

Sliding Rail Tube Diameter: 1.44cm/0.57inch

Middle Rod Diameter: 1.35cm/0.53inch

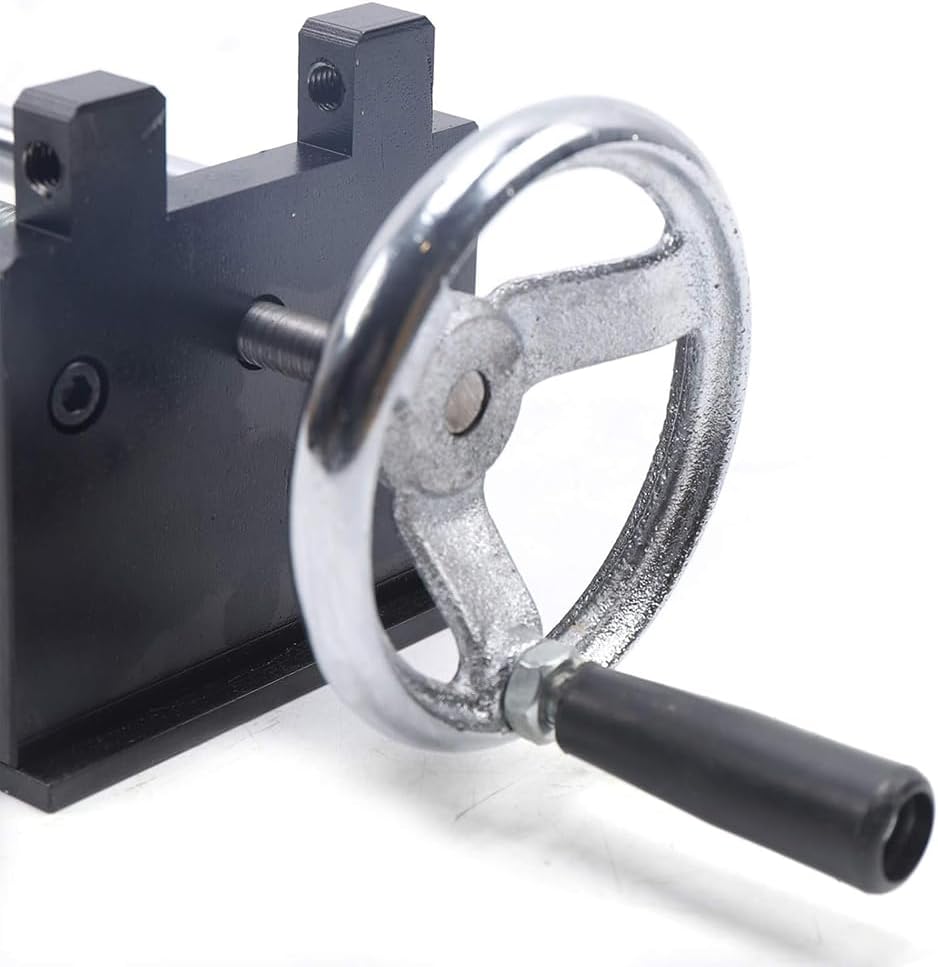

Handwheel Diameter: 10cm/3.94inch

Handle Length: 6.2cm/2.44inch

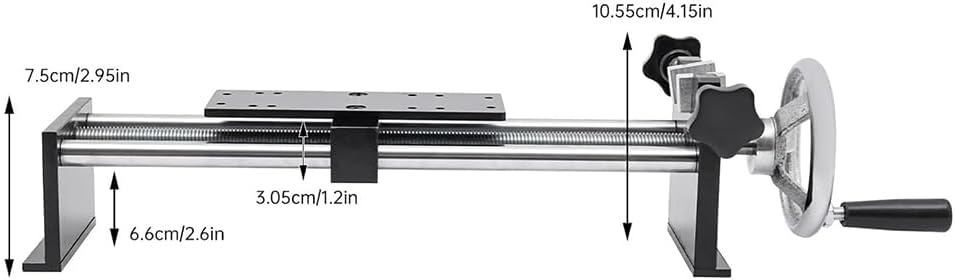

Overall Product Size: 48*20.5*10.55cm/18.9*8.07*4.15inch

Stroke: 22cm/8.66inch

Packaging Size: 43*12*13cm/16.93*4.72*5.12inch

Gross Weight: 6kg/13.23lbs

Package Included

1* Force Gauge Stand

1* Allen Key Set

2* Clamps
