مميزات خاصة

High-quality Material: It is made of high-quality iron with a baking paint surface, high strength, and hardness, making our product sturdy and durable.
Excellent Tensile Strength: This force gauge stand has a 500N max tensile strength. It can be combined with a variety of force gauges to form test instruments for different purposes, performing accurate insertion and extraction forces, push and pull forces and other tensile or compressive load tests
Adjustable Clamps: With two detachable clamps whose maximum clamping opening is about 0.79in, it boasts a wide testing range, allowing you to test the force of different items including buckles, tapes, ropes, fishing lines, and so on.

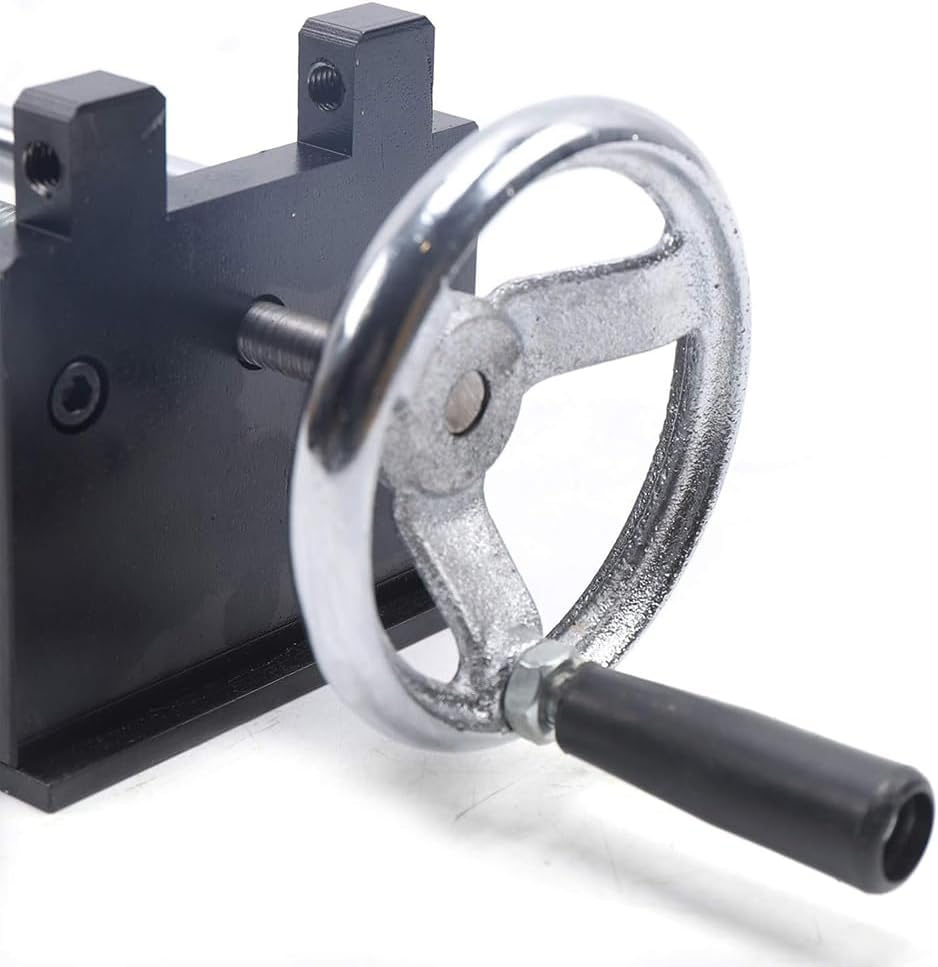

Easy to Operate: The spiral rocking handle conforms to the ergonomic design, and the plastic-wrapped design provides a comfortable grip, making the operation simple.
Application: The pull test stand is widely used in rubber and plastics, light industry, textiles, building doors and windows, composite materials, wire and cable industries, and tensile experiments.

وصف

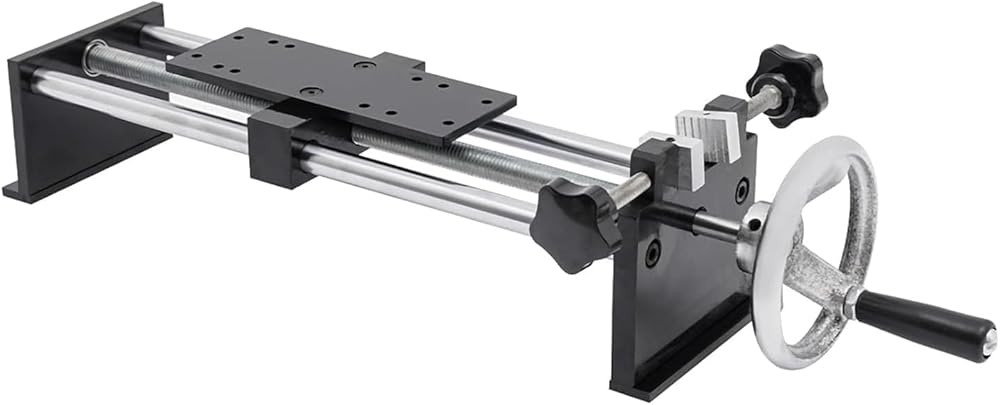

This force gauge stand is a professional tensile testing equipment with a maximum tensile strength of up to 500N. It adopts a horizontal structure, making it easy for you to complete tensile testing in a small space.With complete accessories, you just need to install a digital push-pull force gauge (not included) and then start using it.

Details

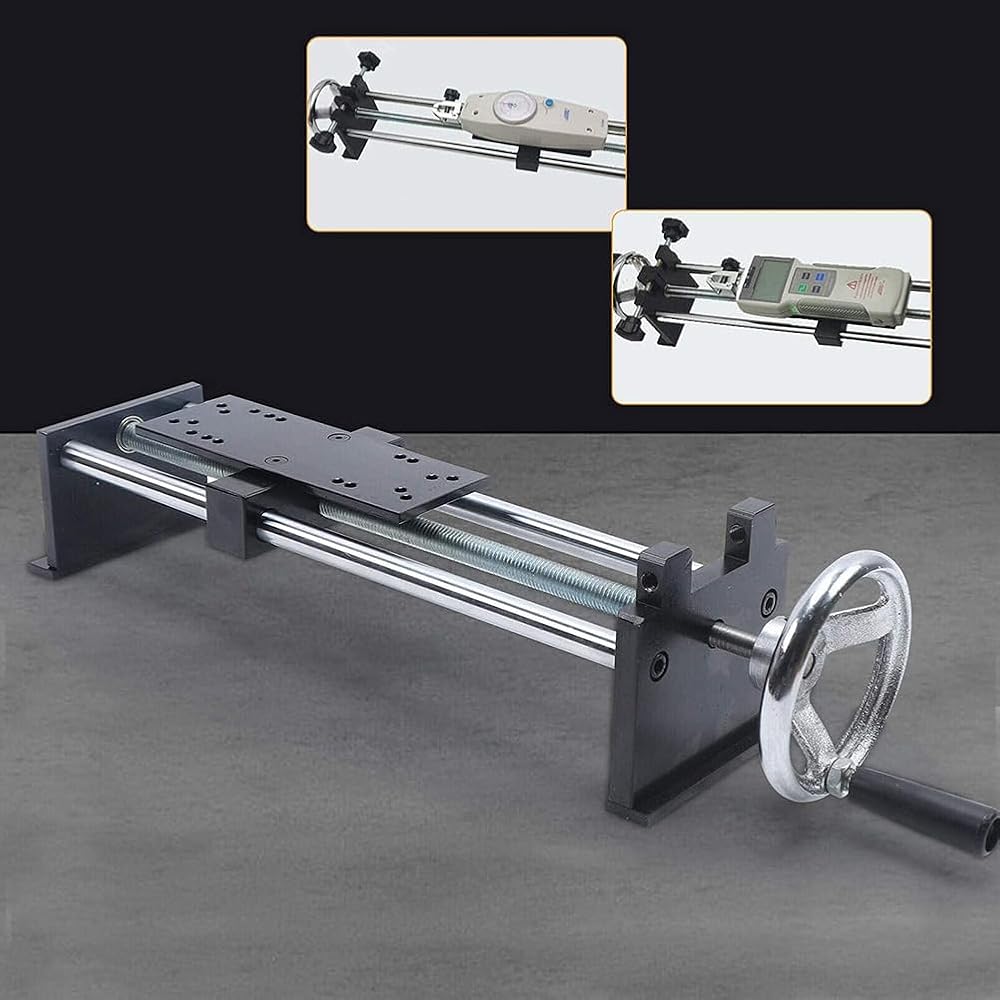

Pre-drilled Holes: They allow you to easily install pointer push-pull force gauges and digital display push-pull force gauges (both not included) on the product, ensuring accurate measurement.

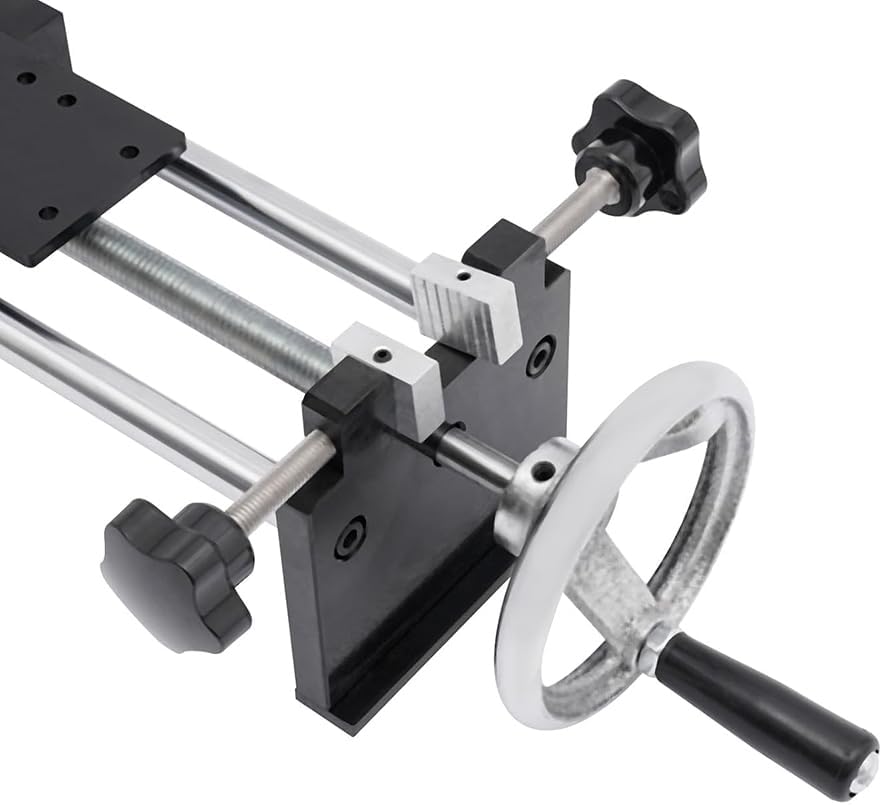

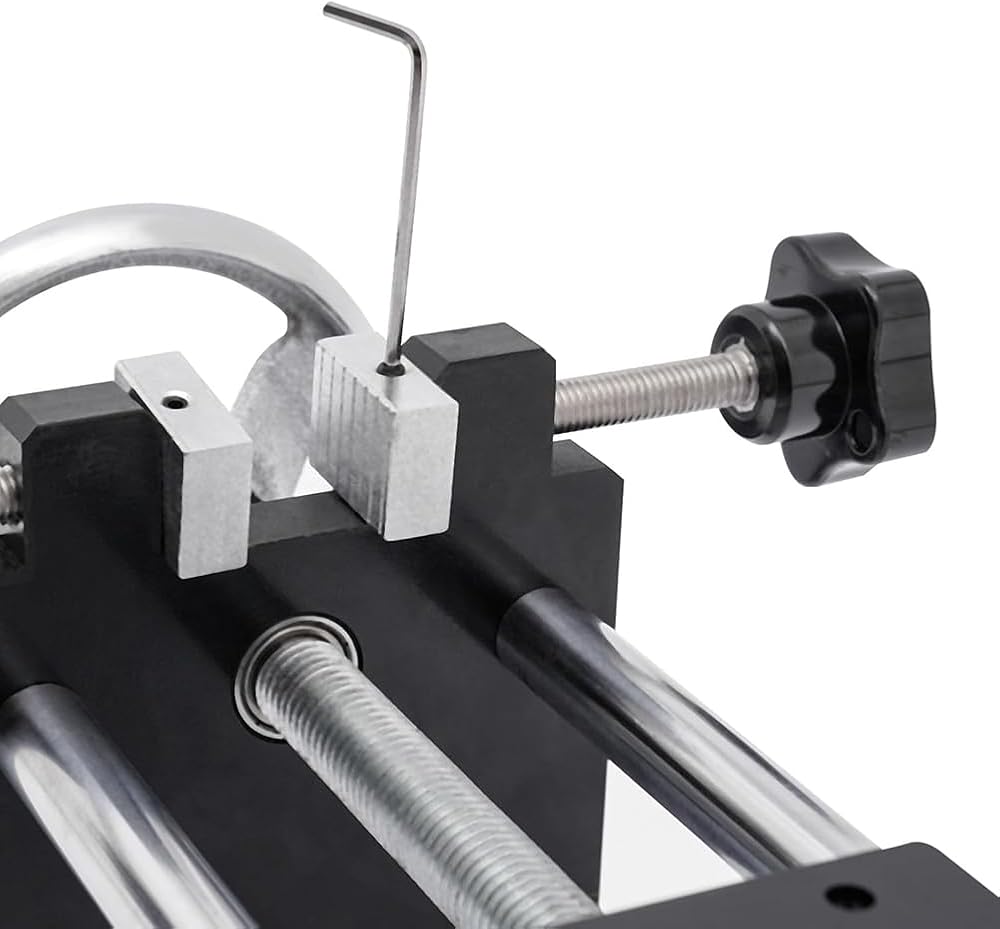

Adjustable Clamps: With two detachable clamps whose maximum clamping opening is about 0.79in, it boasts a wide testing range.

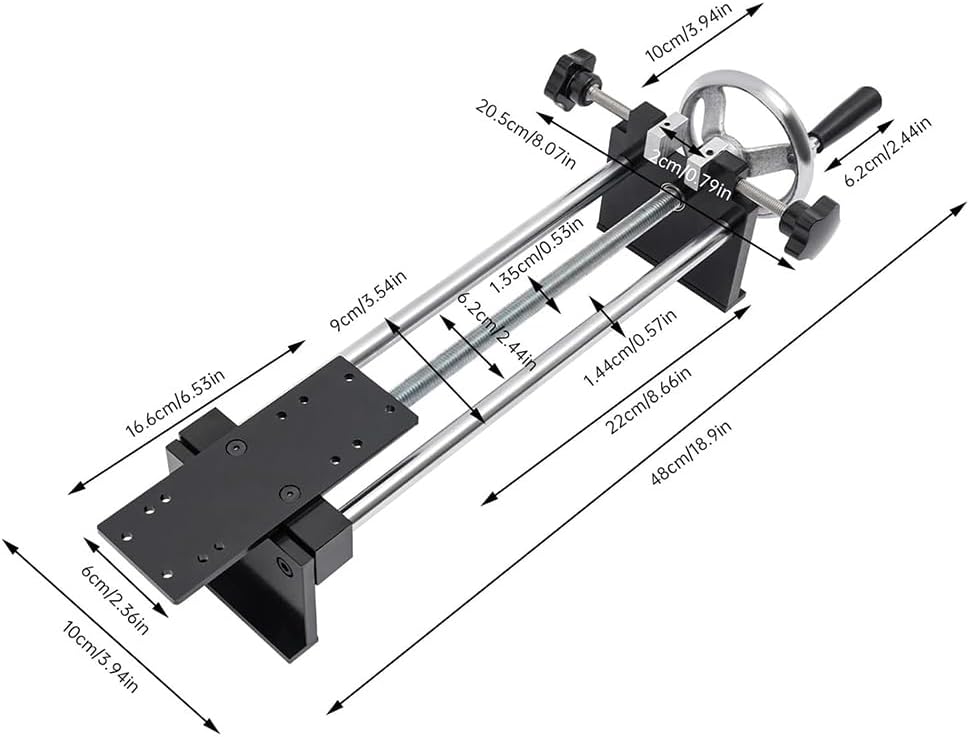

Specifications

Color: Black

Operation: Hand-wheel Operated

Material: Iron, Plastic

Style: Modern

Surface Treatment: Baking Paint

Mount Type: Free Standing

Assembly Required: Yes

Maximum Tensile Strength: 500N/50kg

Maximum Clamping Opening: 20mm/0.79inch

Meter Installation Plate Size(L*W): 16.6*6cm/6.53*2.36inch

Sliding Rail Width(Inner): 6.2cm/2.44inch

Sliding Rail Width(External): 9cm/3.54inch

Sliding Rail Tube Diameter: 1.44cm/0.57inch

Middle Rod Diameter: 1.35cm/0.53inch

Handwheel Diameter: 10cm/3.94inch

Handle Length: 6.2cm/2.44inch

Overall Product Size: 48*20.5*10.55cm/18.9*8.07*4.15inch

Stroke: 22cm/8.66inch

Packaging Size: 43*12*13cm/16.93*4.72*5.12inch

Gross Weight: 6kg/13.23lbs

Package Included

1* Force Gauge Stand

1* Allen Key Set

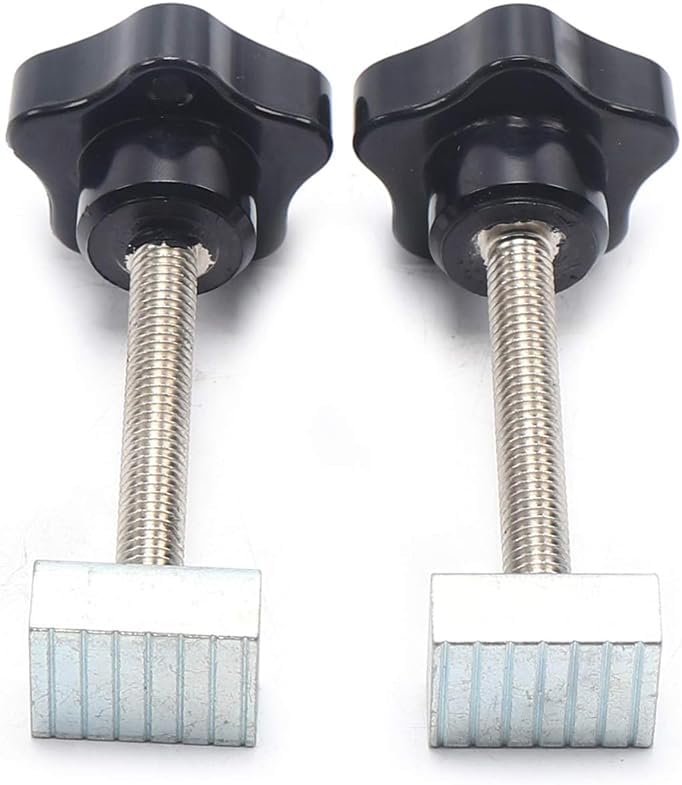

2* Clamps
