Steam label shrink machine has the advantages of high thermal efficiency, uniform temperature in the shrinkage chamber, stable and reliable performance, accurate temperature control. The packaged items are heated more uniformly, the surface is more flat after packaging, not easy to crease.
Powerful Steam Force: 24KW generator heats in 2-3 min with 0-95℃ precise control, sustaining high-intensity production.

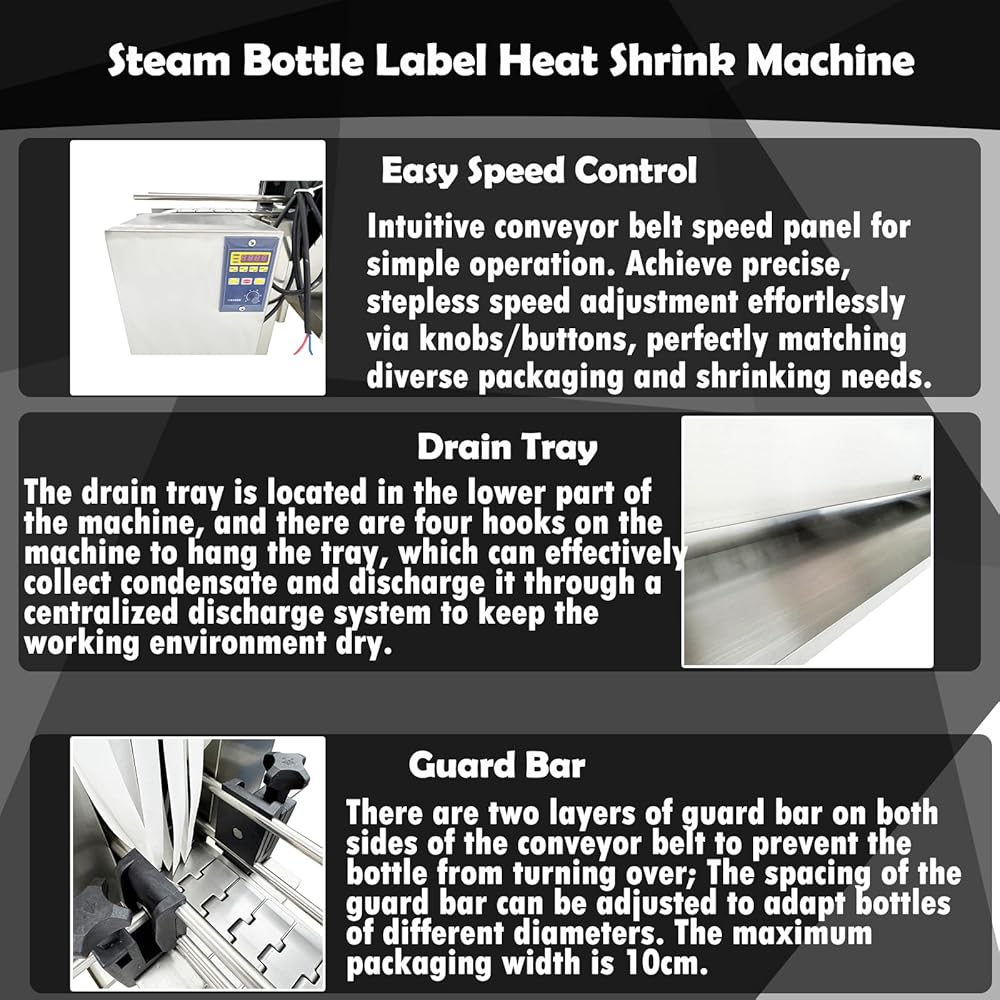

Dual Intelligent Control: Independent conveyor speed (0-35m/min stepless) & steam temp adjustment for all films/packaging.

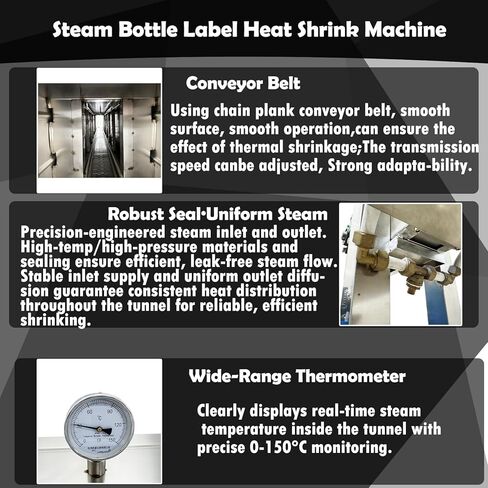

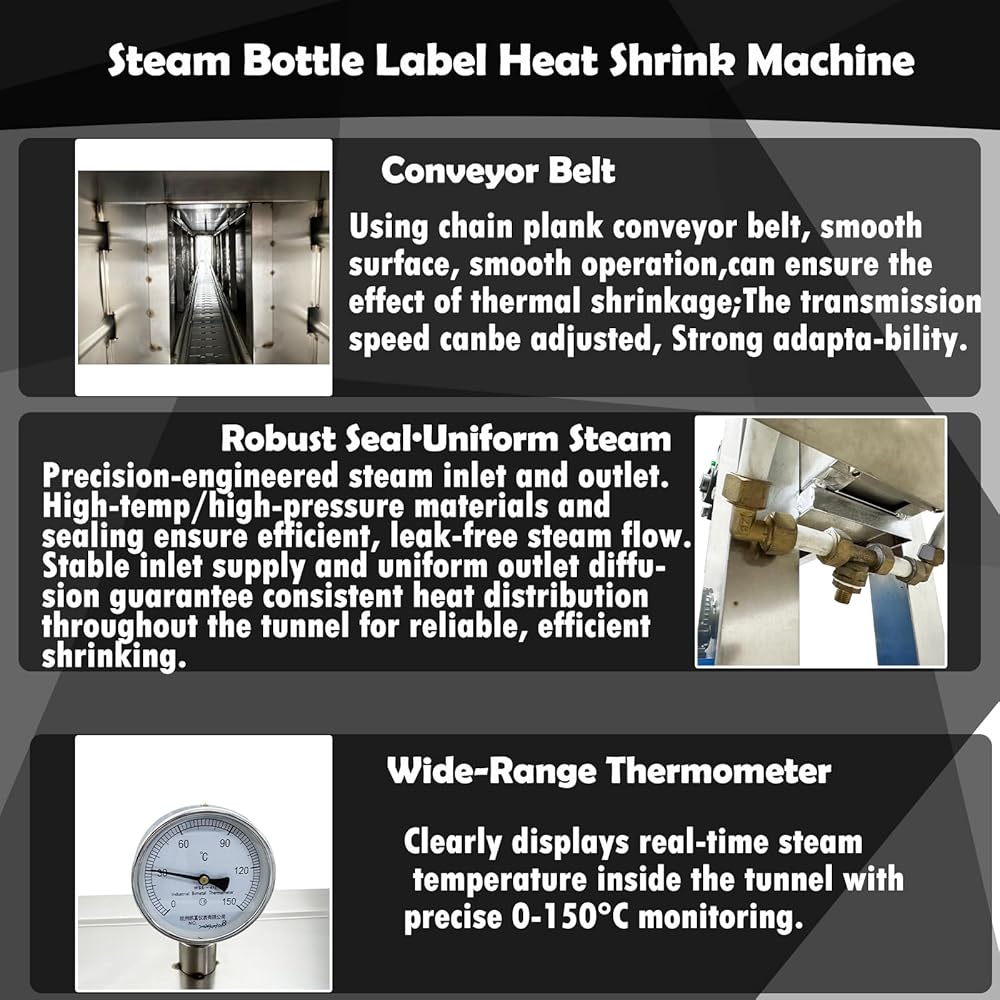

Wide-Range Thermometer: Clearly displays real-time steam temperature inside the tunnel with precise 0-150°C monitoring. Ensures accurate and controllable heat-shrink temperature for stable, efficient processing, guaranteeing optimal shrinkage results and product quality. Easy-to-read scale for instant clarity.
Use of product labeling film wrapped around the outside of the product, after steam heating, so that the labeling film contraction wrapped tightly around the product, the full display of the appearance of the goods, to increase the aesthetic and the sense of value. Mainly used for daily chemicals, beverages and other products after the set of heat shrinkable labels. Any bottle type can be simply adjusted to achieve the effect of flat appearance and beautiful shrinkage.

وصف

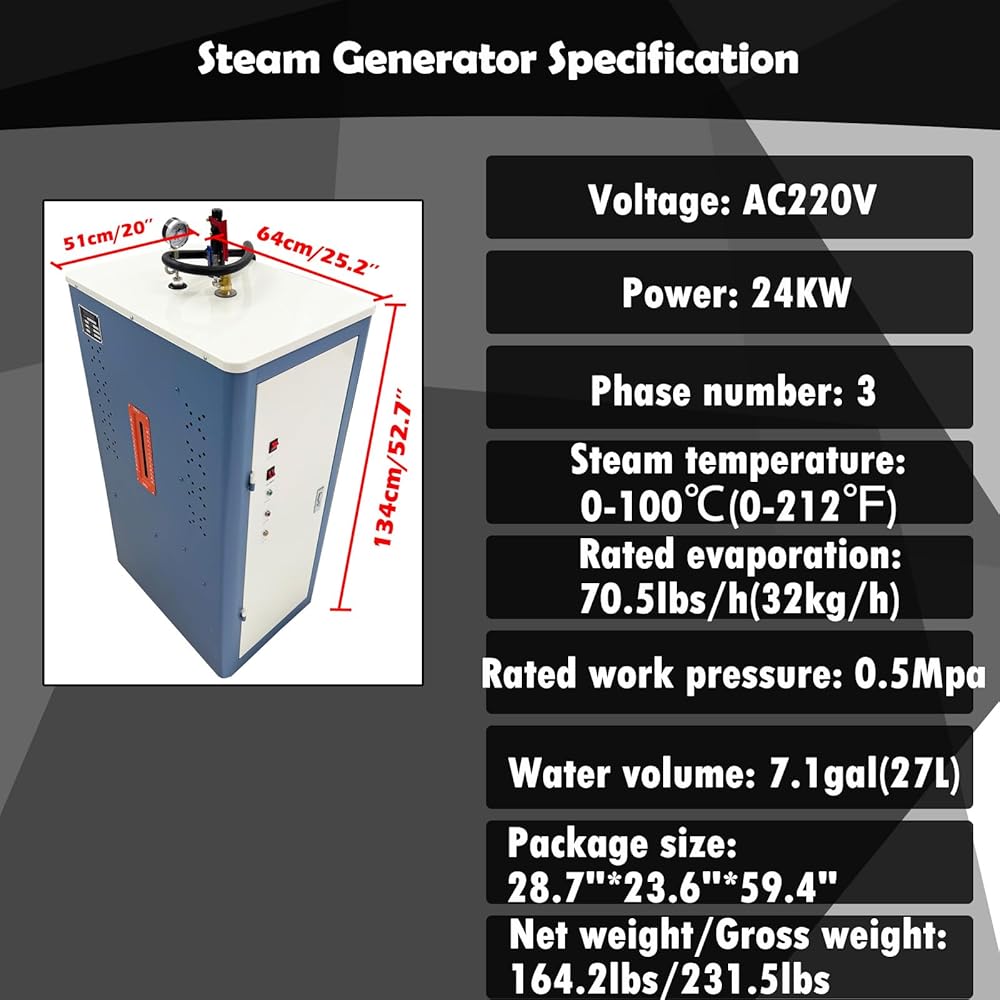

Product Parameters of Steam Generator
Voltage: AC220V triple-phase
Power: 24kW
Steam temperature: 0-100℃ (0-212℉)
Rated evaporation: 70.5lbs/h (32kg/h)
Rated work pressure: 0.5Mpa
Water volume: 7.1gal(27L)
Generator size: 25.2*20*52.7" (64×51×134cm)
Package size: 28.7*23.6*59.4" (73×60×151cm)
Net weight/Gross weight: 164.2lbs(74.5kg) / 231.5lbs(105kg)

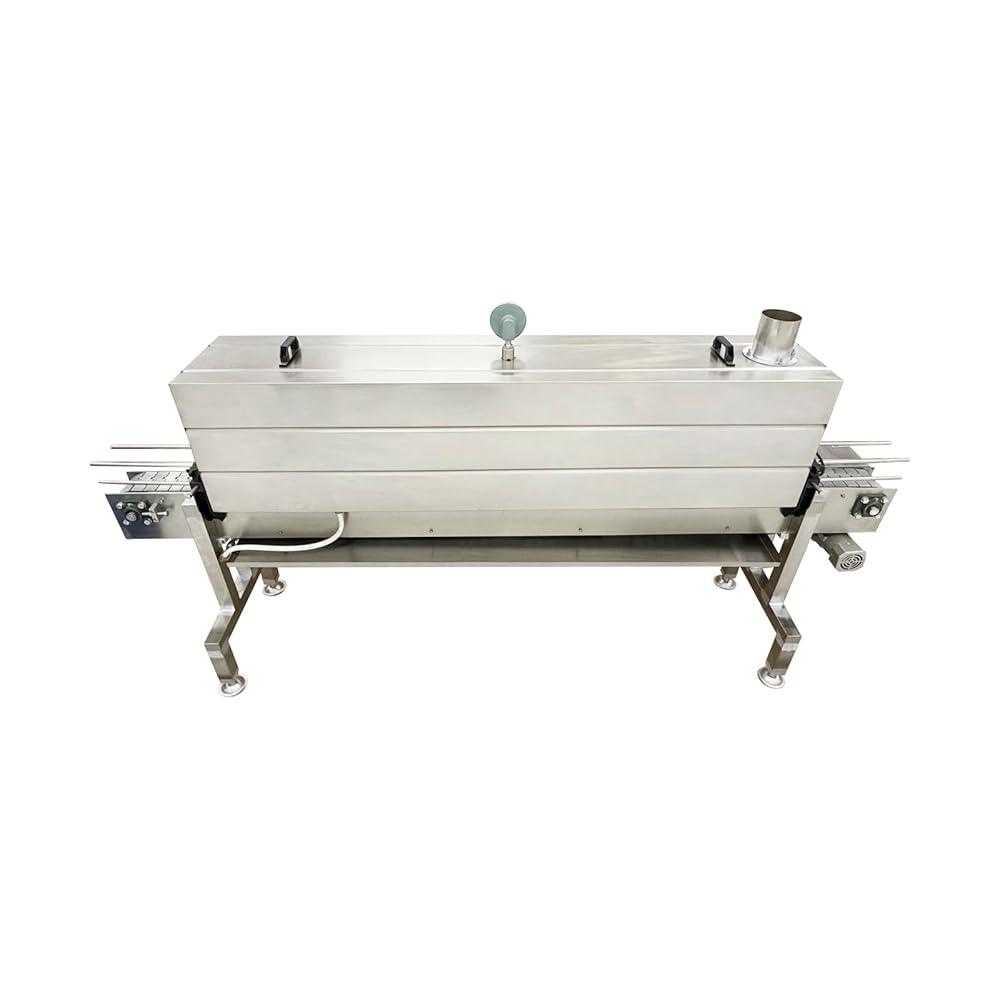

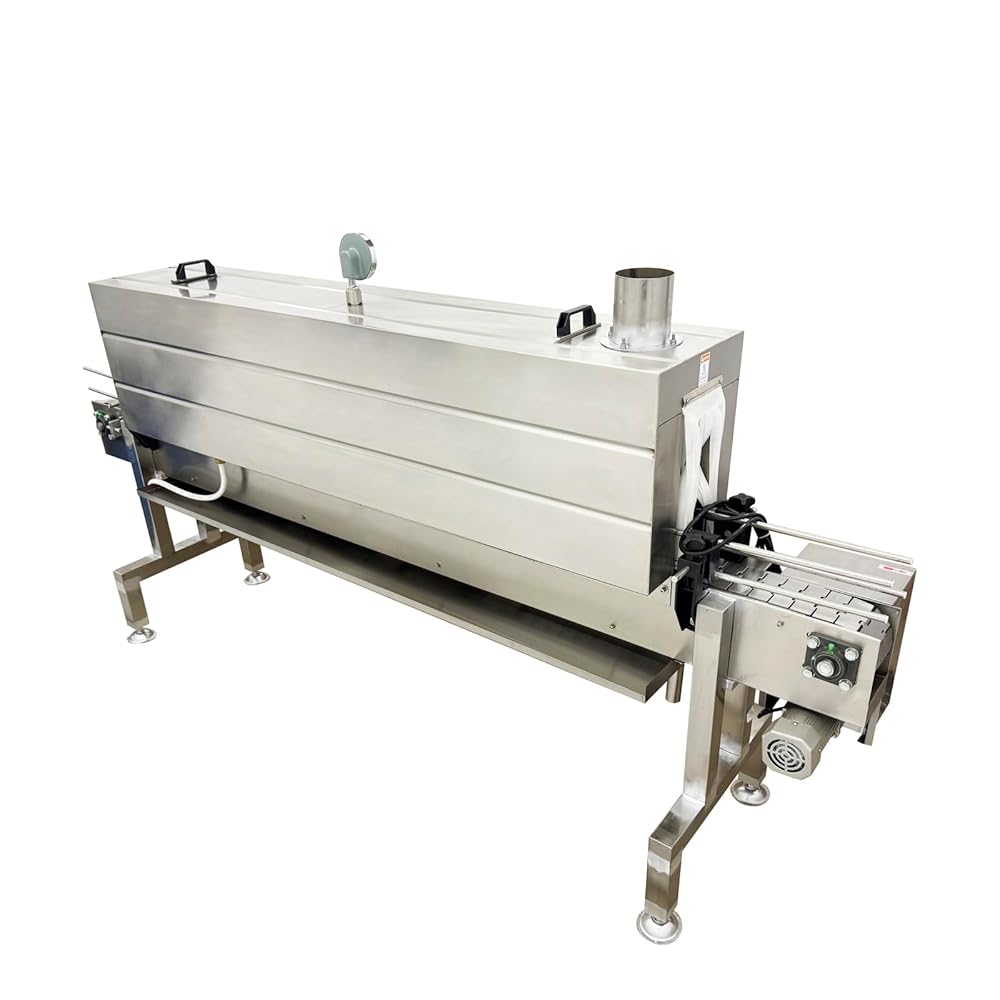

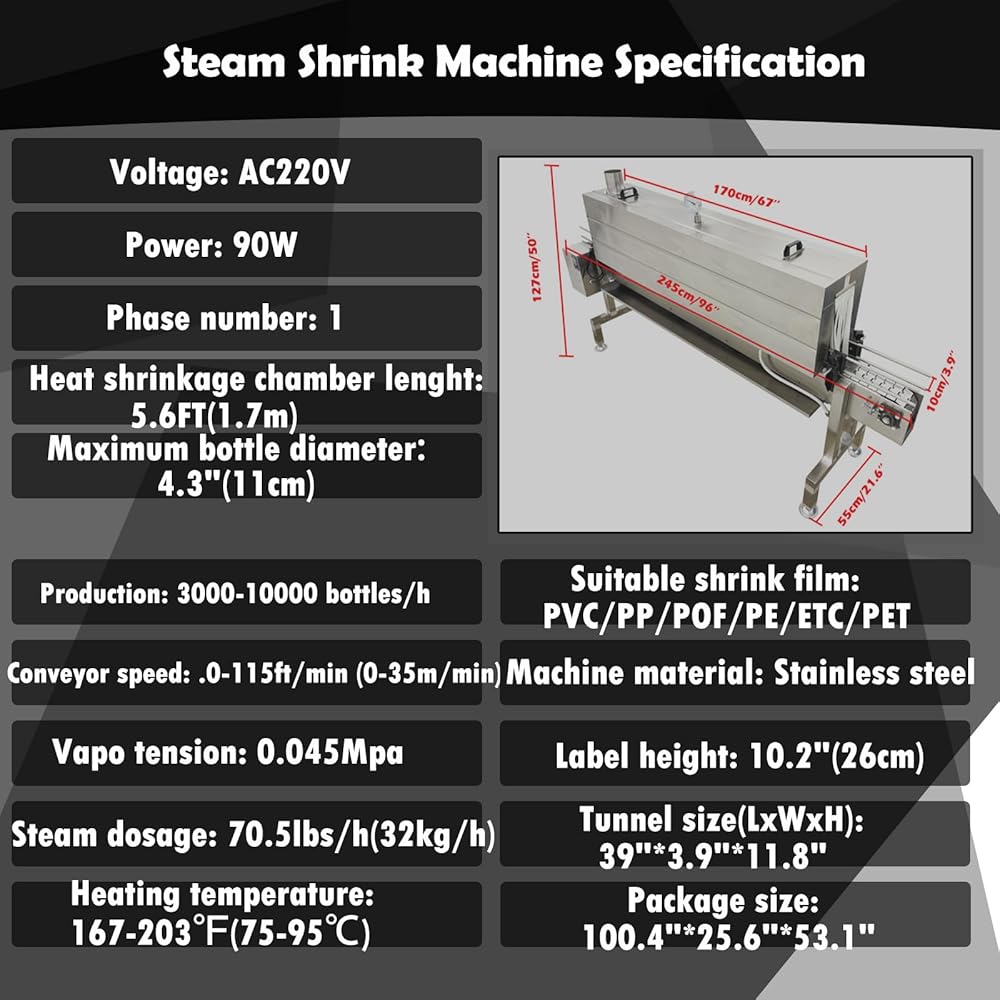

Product Parameters of Steam Shrink Machine
Voltage: AC220V single-phase
Power: 90W
Length of the heat shrinkage chamber: 5.6F(1.7m)
Maximum bottle diameter: 4.3" (11cm)
(There's no height requirement, bottles can be laid down)
Production: 3000-10000 bottles/h
Conveyor speed: 0-115ft/min (0-35m/min)
Vapo tension: 0.045Mpa
Steam dosage: 70.5lbs/h (32kg/h)
Heating temperature: 167-203℉(75-95℃)
Suitable shrink film: PVC/ PP/ POF/ PE/ ETC/ PET
Machine material: Stainless steel
Label height: 10.2" (26cm)
Tunnel size: 39*3.9*11.8" (100×10×30cm)
Machine size: 96*50*21.6" (245×127×55cm)
Package size: 100.4*25.6*53.1" (255×65×135cm)
Net weight/Gross weight: 212.7lbs(96.5kg) / 386.9lbs(175.5kg)

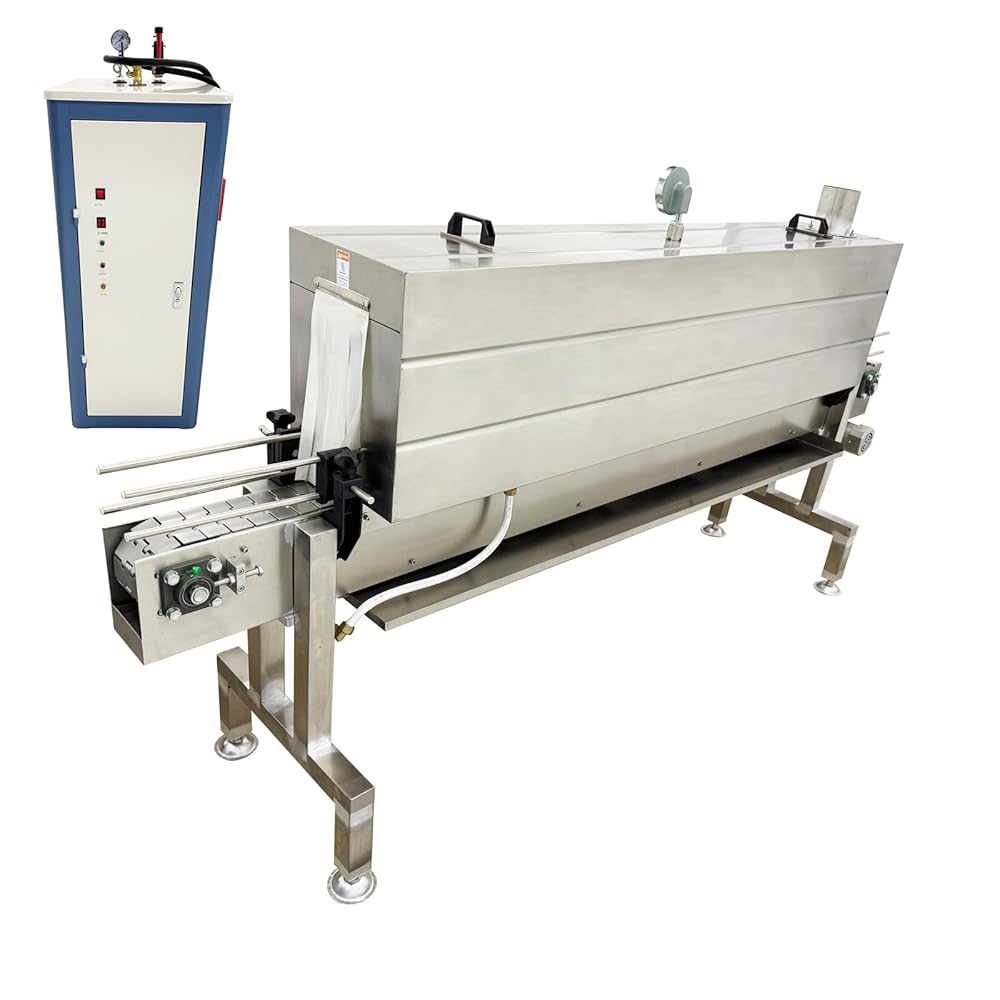

The packages include
Steam Label Shrink Machine *1
Steam Generator *1
Accessory Kit *1
