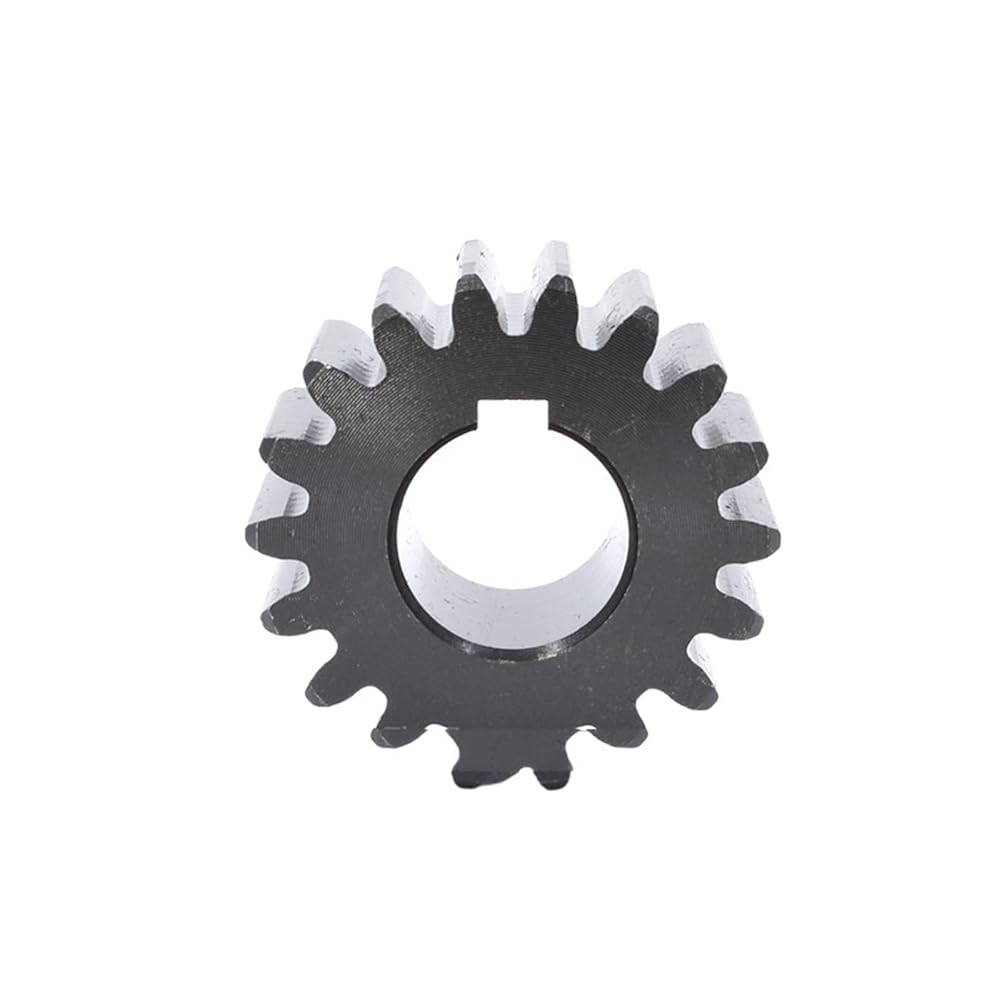

ترس ترس محرك ثقيل من الفولاذ 26T 2M ترس حفز محرك فولاذي مسطح Keyway تتحمل 14-25 مم (16 مم-Keyway 5x2.3 مم) in Kuwait

14 ملم-مفتاح 5x2.3 ملم

KWD 26
مقاس14mm-keyway 5x2.3mm
– 1 +

مميزات خاصة

  • 1. Each pinion is equipped with a fixing screw for easy installation.
  • 2. The spur gears are wear-resistant, produce less noise, and roll more smoothly.
  • 3. Widely used in various electric grinding machines, gearboxes, reducers, and gear reducers.

وصف

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Name: Spur Gear
Module: 2M
Material: 45# Steel
Pitch: 6.28mm
Surface Treatment: Blackened
Number of Teeth: 26 Teeth
Thickness: 20mm
Keyway Bore:
14mm-keyway 5x2.3mm
15mm-keyway 5x2.3mm
16mm-keyway 5x2.3mm
18mm-keyway 6x2.8mm
20mm-keyway 6x2.8mm
22mm-keyway 6x2.8mm
24mm-keyway 8x3.3mm
25mm-keyway 8x3.3mm
Tooth Surface Hardness: Hardened Tooth Surface
E.g.: 26 Teeth (OD 56mm) (OD=Outer Diameter)
