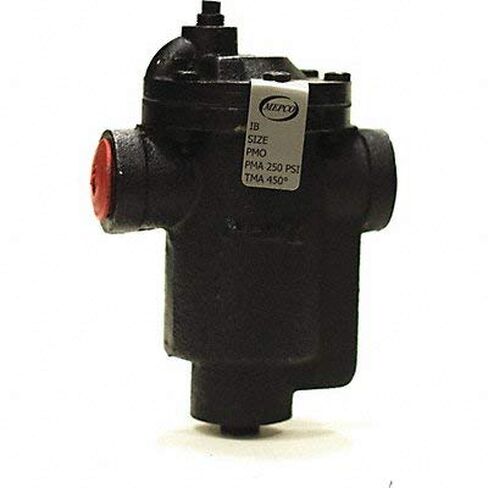

مصيدة بخار، مخرج 3/4 بوصة NPT، قرص SS in Kuwait

مصيدة بخار، مخرج 3/4 بوصة NPT، قرص SS

KWD 100
– 1 +

مميزات خاصة

  • <b>Price For:</b> Each <b>Trap Position</b>: Horizontal <b>Type</b>: Inverted Bucket <b>Pipe Configuration</b>: Straight <b>Condensate Capacity Lbs/Hr</b>: 950 <b>Application</b>: Steam <b>Downstream PSI Range</b>: 0 to 120 psi <b>(F)NPT Connections</b>: 1" <b>Disc Material</b>: Stainless Steel <b>Max. Operating PSI</b>: 125 psi <b>NPT Inlet</b>: 1"
  • <b>Pressure Air Vent</b>: Releases Air and Non-Condensable Gases that Adversely Affect the Heat Transfer of a Steam System <b>Item</b>: Steam Trap <b>End to End Length</b>: 5" <b>NPT Port</b>: 1" <b>Max. Temp.</b>: 450 Degrees F <b>Body Material</b>: Cast iron <b>NPT Outlet</b>: 3/4" <b>Country of Origin (subject to change)</b>: United States

وصف

'Steam Trap, (F)NPT Connections 1 In., Max. Operating PSI 125 psi, End to End Length 5 In., Condensate Capacity Lbs/Hr 950, Max. Temp. 450 Degrees F, Type Inverted Bucket, Downstream PSI Range 0 to 120 psi, Body Material Cast Iron, NPT Inlet 1 In., NPT Outlet 3/4 In., NPT Port 1 In., Disc Material Stainless Steel, Pipe Configuration Straight, Trap Position Horizontal, Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System'
