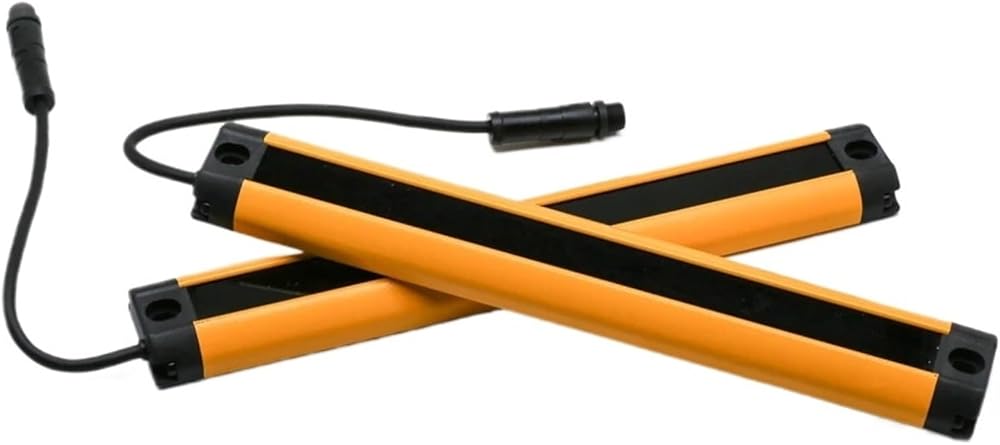

Sensors
Technical parameter
Number of Beams
4-32 pairs
Beams Spacing
40mm
Protection Height
120-1240mm
Detection Distance
0.5-3m
Working Voltage
DC24V±10%; Max applicable voltage range: 10-30V
Power Consumption
5W
Power Consumption
NPN/PNP
Response Time
Housing Material
Aluminum Alloy (yellow)
Detection Method
Through beam
Ambient Temperature
Insulation Resistance
>100MQ
Anti-in terferance
WOOOLux (Angle of incidences 5°)
Connection
Emitter: M8 connector cable (3 pins with 3 wire)
Receiver: M8 connector cable (4 pins with 4 wire)
Protection
Reverse connection Protection/ Output short circuit protection
Dielectric Strength
AC1500V.60S
Working Temperature
-15°C + 65°C
Storage Temperature
-25°C + 75°C
Section Size
18*35mm
MODEL
NUMBER OF BEAMS
SPACING
PROTECT HEIGHT
JPPER COVER HEIGHT
BLIND ZONE
DOWN COVER HEIGHT
ICONNECTOR
HEIGHT
TOTAL HEIGHT
H(mm)
C(mm)
A(mm)
B(mm)
D(mm)
E(mm)
F(mm)
G(mm)
RH4004RNPC-A
4 40
120
12
30
35
12
7 189
RH4006RNPC-A
6 40
200
12
30
35
12
7 269
RH4008RNPC-A
8 40
280
12
30
35
12
7 349
RH4010RNPC-A
10
40
360
12
30
35
12
7 429
RH4012RNPC-A
12
40
440
12
30
35
12
7 509
RH4014RNPC-A
14
40
520
12
30
35
12
7 589
RH4016RNPC-A
16
40
600
12
30
35
12
7 669
RH4018RNPC-A
18
40
680
12
30
35
12
7 749
RH4020RNPC-A
20
40
760
12
30
35
12
7 829
RH4022RNPC-A
22
40
840
12
30
35
12
7 909
RH4024RNPC-A
24
40
920
12
30
35
12
7 989
RH4026RNPC-A
26
40
1000
12
30
35
12
7 1069
RH4028RNPC-A
28
40
1080
12
30
35
12
7 1149
RH4030RNPC-A
30
40
1160
12
30
35
12
7 1229
RH4032RNPC-A
32
40
1240
12
30
35
12
7 1309
==========
Material : Aluminium alloy
Switch Type : Switch
Model Number : RC4014/16/18/20/22
Features : 14mm super thin type
Item Type : SWITCHES
Cable length : 2.5 meter
Detection distance : 0.2-3m
Beams Spacing : 40mm
Section Size : 14*28mm
Power Consumption : Power Consumption
